UNIFORM CYLINDER HEATING
240v 6500w Electric Band Cast Aluminum Heater Heat
240v 6500w Electric Band Cast Aluminum Heater Heat by LICHENGDA. Diameter, width and clamping contact, configuration details and made-to-drawing quotation for extrusion barrels and injection-molding tooling.
Product image gallery (7)
PRODUCT ENGINEERING
Diameter, width and clamping contact
240v 6500w Electric Band Cast Aluminum Heater Heat: Match inside diameter and band width to the barrel or nozzle. Contact gaps create local hot spots; the closure, terminal angle and available tightening space belong on the installation drawing.
Review expansion during heating and the equipment maker’s tightening procedure. Keep lead routing outside the hottest zone and confirm sensor placement for each controlled barrel section.
Using the catalog-name values 240 V and 6500 W, a single resistive load has an indicative current of 27.08 A and resistance of 8.86 Ω (I = P/V; R = V²/P). These calculations assume one element at its stated supply voltage; confirm phase arrangement, cold resistance and circuit protection in the approved drawing.
The archived configuration for 240v 6500w Electric Band Cast Aluminum Heater Heat lists sheath materials: aluminum; power (w/cm²): 2.5-4.5,4.5-6.0,3.5-5; voltage: 120v,240v,480v or customized; the power tolerance: 5%~-10%. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For 240v 6500w Electric Band Cast Aluminum Heater Heat, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 240v · 6500w |
|---|---|
| Indicative single-element current | 27.08 A |
| Indicative single-element resistance | 8.86 Ω |
Application and reference configuration
Extrusion barrels and injection-molding tooling. The final suitability of 240v 6500w Electric Band Cast Aluminum Heater Heat depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| sheath materials | aluminum |
|---|---|
| power (w/cm²) | 2.5-4.5,4.5-6.0,3.5-5 |
| voltage | 120v,240v,480v or customized |
| Max temperature | 400 degree or 752deg.F |
| options | Holes,grooves,notches,cutouts or customized |
| Leakage current | <0.5MA |
| insulation resistance | >2MΩ |
| grounding resistance | <0.1Ω |
| the power tolerance | 5%~-10% |
| terminations | leads,terminal boxes,screw,threaded studs,plug or customized |
ARCHIVED PRODUCT INFORMATION
Description

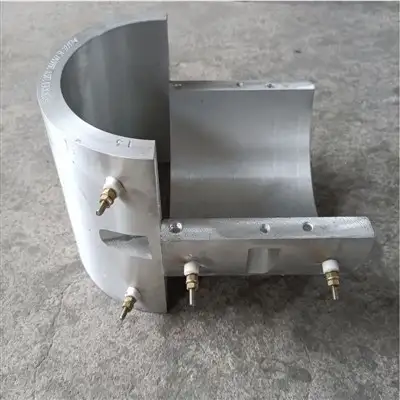

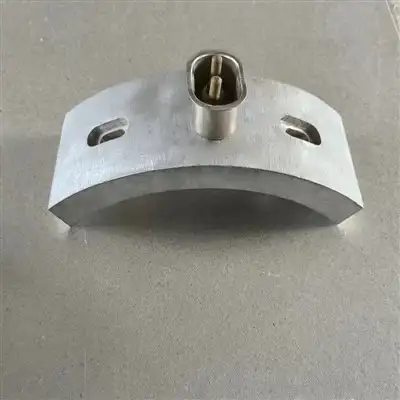

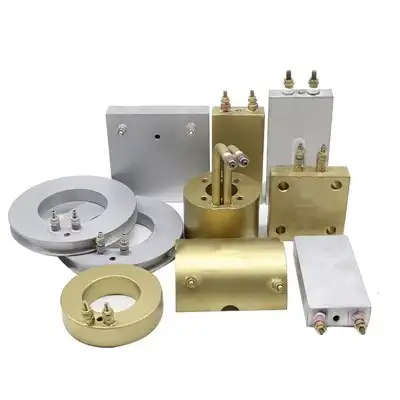

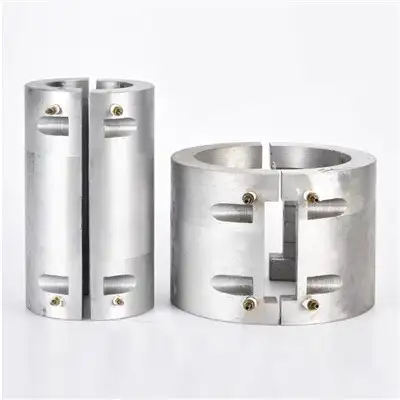

Cast aluminum heating rings are common heating elements typically used in industrial heating equipment, plastic machinery, packaging machinery, and other fields. They are made by embedding resistance wires into cast aluminum material, offering excellent thermal conductivity and corrosion resistance, making them suitable for high-temperature environments.
| sheath materials | aluminum |
| power (w/cm²) | 2.5-4.5,4.5-6.0,3.5-5 |
| voltage | 120v,240v,480v or customized |
| Max temperature | 400 degree or 752deg.F |
| options | Holes,grooves,notches,cutouts or customized |
| Leakage current | <0.5MA |
| insulation resistance | >2MΩ |
| grounding resistance | <0.1Ω |
| the power tolerance | 5%~-10% |
| terminations | leads,terminal boxes,screw,threaded studs,plug or customized |
Key Features:
Excellent Thermal Conductivity: Aluminum's superior thermal conductivity ensures rapid and even heat transfer to the object being heated.
Corrosion Resistance: Cast aluminum material provides good corrosion resistance, making it suitable for use in humid or corrosive environments.
Robust Structure: Cast aluminum heating rings have a compact and mechanically strong structure, capable of withstanding certain levels of mechanical impact and vibration.
Uniform Temperature Distribution: Thanks to aluminum's thermal conductivity, the surface temperature of the heating ring is evenly distributed, preventing localized overheating.
Easy Installation: Typically designed in circular or square shapes, they are easy to install and remove.
Applications:
Plastic Machinery: Used for Injection molding machine, extruder, film blowing machine, tape cutting machine,
medical equipment,spray cloth machine ect
Packaging Machinery: Used for heating in sealing machines, shrink wrap machines, etc.
Food Machinery: Used for heating in ovens, dryers, etc.
Chemical Equipment: Used for heating in reaction kettles, pipeline heating, etc.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: 240v 6500w electric band cast aluminum heater heat, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, electric mica flat heater, Extruder Barrel Ceramic Heater Band, industrial mica band heaters manufacturer, Stainless Steel 220v Mica Flat Heater, stainless steel mica band heater plate, 220v electric band heater with thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
ENGINEER-REVIEWED QUOTATION
