UNIFORM CYLINDER HEATING

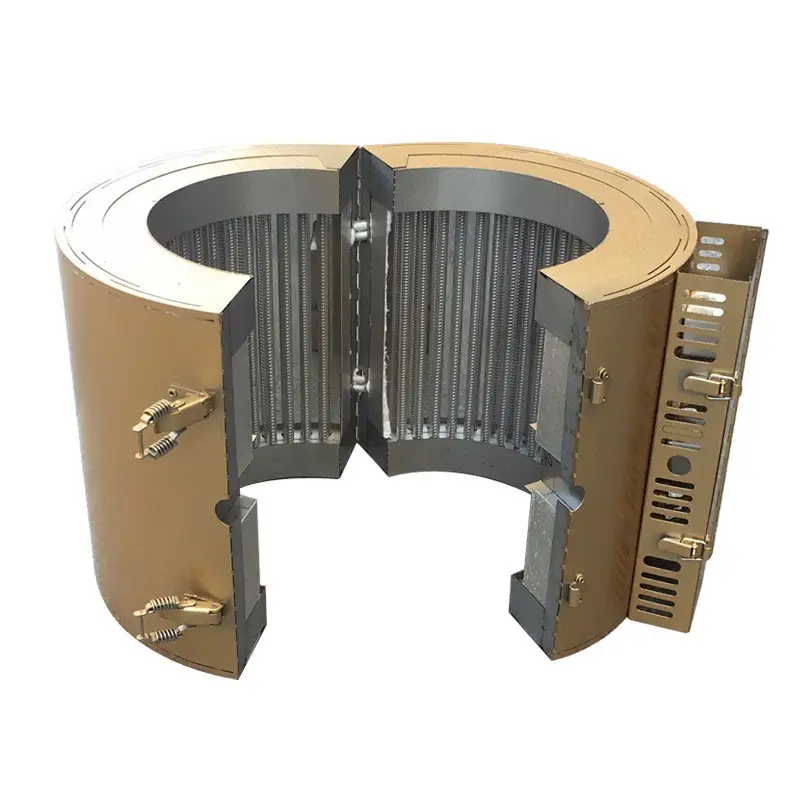

Nano Heating Element
Nano Heating Element by LICHENGDA. Diameter, width and clamping contact, configuration details and made-to-drawing quotation for extrusion barrels and injection-molding tooling.
Product image gallery (7)
PRODUCT ENGINEERING
Diameter, width and clamping contact
Nano Heating Element: Match inside diameter and band width to the barrel or nozzle. Contact gaps create local hot spots; the closure, terminal angle and available tightening space belong on the installation drawing.
Review expansion during heating and the equipment maker’s tightening procedure. Keep lead routing outside the hottest zone and confirm sensor placement for each controlled barrel section.
For Nano Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Nano Heating Element lists Applicable Voltage: 110V-380V(Customized). Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Nano Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Extrusion barrels and injection-molding tooling. The final suitability of Nano Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

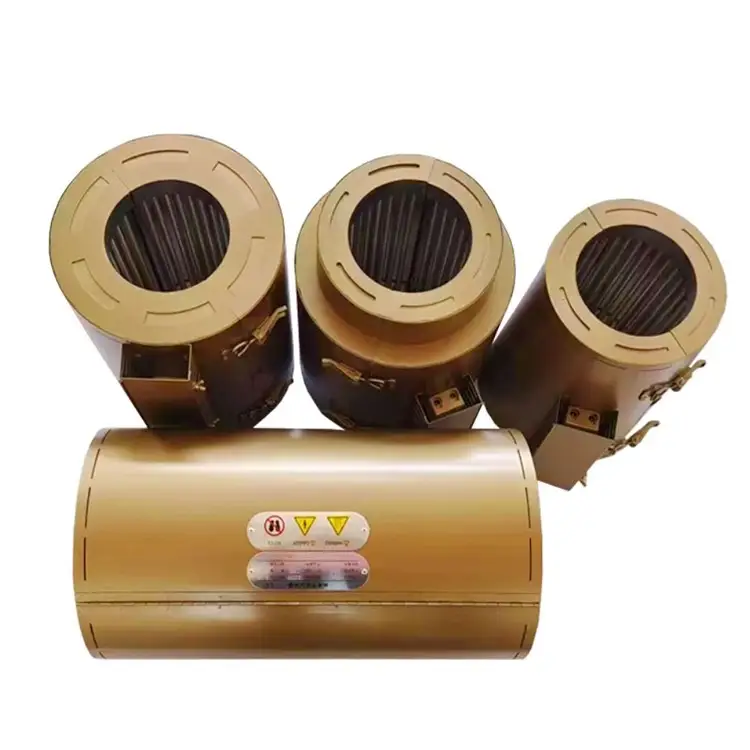

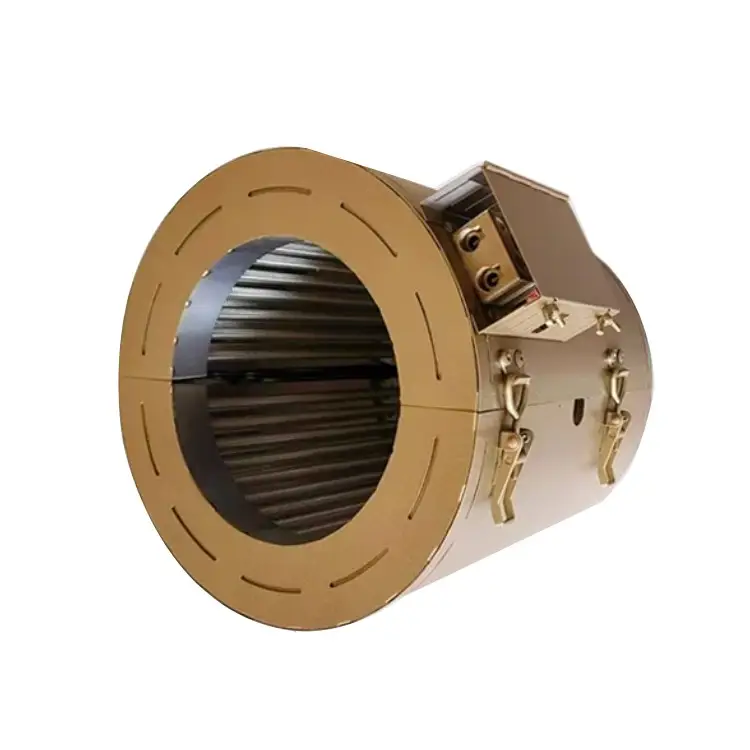

| Product Name | Nano Infrared Band Heater |
|---|---|
| Wattage | 4-5W/cm² |
| Applicable Voltage | 110V-380V(Customized) |
| Frequency | 50~60HZ |
| Surface load | 2-4.5 w/cm² |
| Energy Saving Rate | >80% |
| Thickness | 20-100mm |
| Service Life | ≥100000h |
| Thermal Insulations | Aerogel |
| Surface Temperature | About 35% |
ARCHIVED PRODUCT INFORMATION
Description
Energy saving nano infrared band heater for plastic machine is one of the best heating solution for plastic machines which has better structure and higher heating effciency than the traditional band heater such as ceramic or mica band heater.Energy saving nano heaters changed the traditional heating mold,which heat the barrel directly by infrared radiation,rather than heating conduction from the resistance wire to the heater than to the barrel like traditional heaters,and the heat losing badly during the pricess.The heating efficiency of our infrared energy-saving band heater is as high as 99.8%,which is much higher than traditional heaters,the heating efficiency of which is only around 60%.

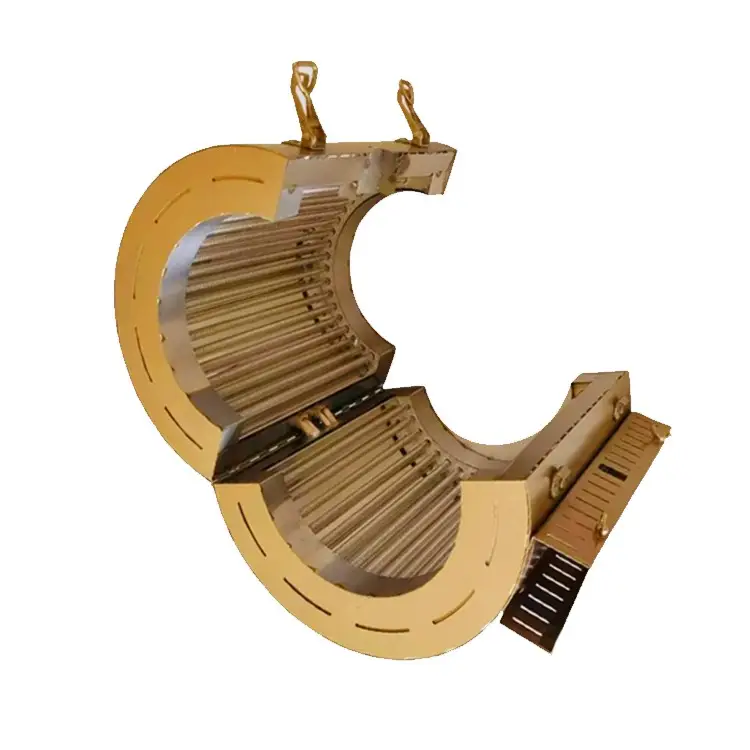

The construction of our infrared energy-saving band heater is infrared heating tube insulated by aerogel insulation and covered by stainless steel 304 shroud.Aerogel blanket is the insulation materials with smallest heat conductivity coeffiecient,which could reduce heat losing obviously.
|
Product Name |
Nano Infrared Band Heater |
|
Wattage |
4-5W/cm² |
|
Applicable Voltage |
110V-380V(Customized) |
|
Frequency |
50~60HZ |
|
Surface load |
2-4.5 w/cm² |
|
Energy Saving Rate |
>80% |
|
Thickness |
20-100mm |
|
Service Life |
≥100000h |
|
Thermal Insulations |
Aerogel |
|
Surface Temperature |
About 35% |
|
Service |
OEM/ODM is available |
Speciifcations:
1.Improve electro themal conversion rate---over 99.8%
2.Improve heat transmission effciency(zero medium heat radiation,specific wave length infrared radiation).
3.Reduce heat loss(aerogel insulation layer).
4.Energy-saving rate: 30%-60%.
5.Surface temperature is around 50C-significantly improves workshop environment.
6.Simple installation-just like installing normal resistance heaters,
7.SUS cover which is stable and long usage life.
Product features
1. it has the advantages of simple processing, reliable work, convenient use, rapid temperature rise, high
thermal efficiency, low power consumption, long service life, no restriction on model and specification.
Product use
2.widely used in plastic machinery, packaging and printing, petrochemical industry, electronic equipment.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
