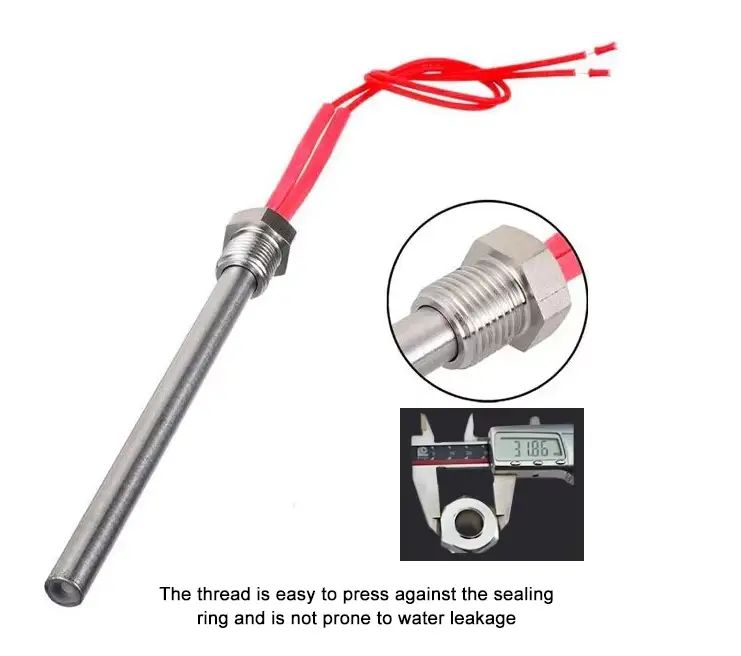

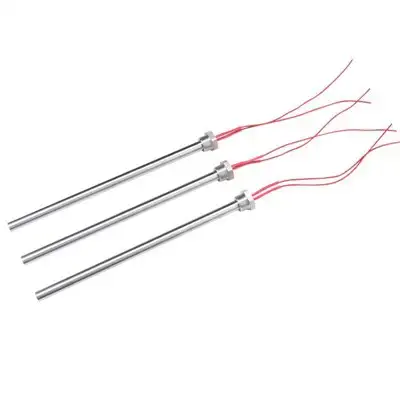

Screw Cartridge Heater

Description

immersion cartridge heater is a type of heating element specifically designed for immersion in a liquid or gas. It consists of a heating coil encased in a protective metal sheath, and it is used to heat fluids or gases in various industrial processes and applications. Immersion cartridge heaters are widely utilized for their efficiency, reliability, and precise temperature control in a wide range of industries.

Standard Product Parameter

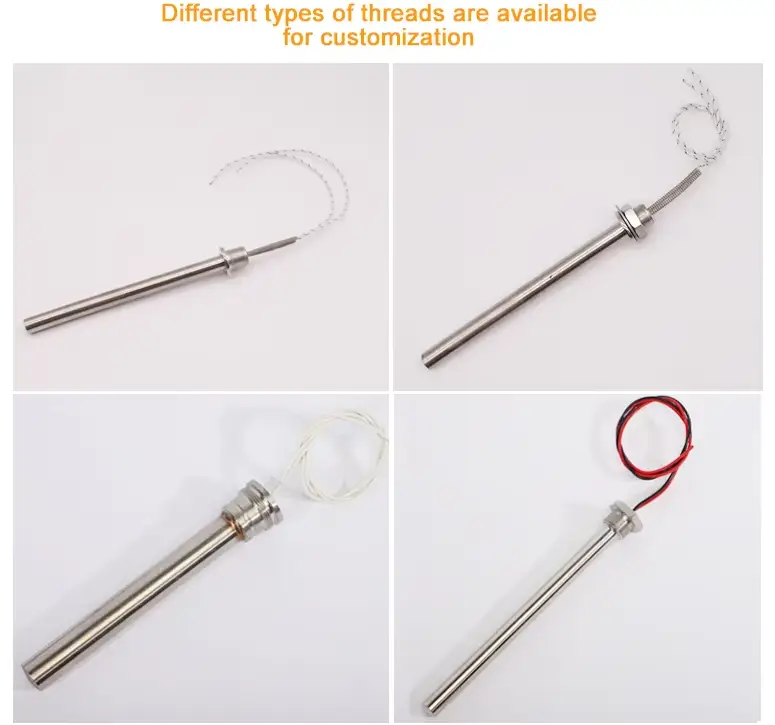

Special diameter, length of cartridge, length of lead, and extra features are availabe on request

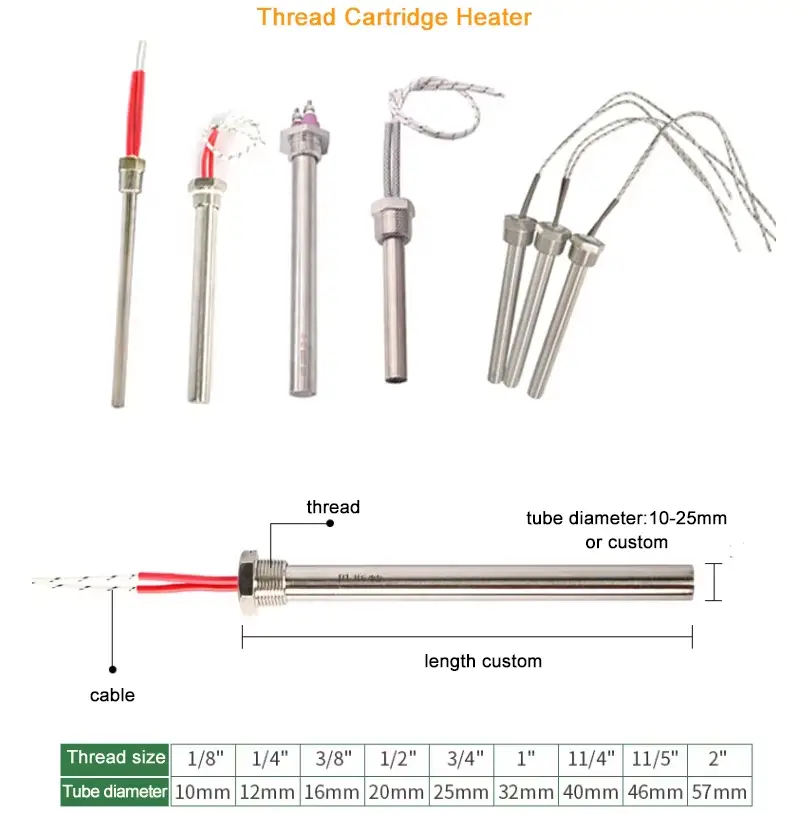

Thread size	Diameter	Length	Power	Tube material
6	16mm	400mm	220V 1KW	SS304
6	16mm	400mm	220V 1.5KW	SS304
6	16mm	500mm	220V 1.5KW	SS304
6	16mm	500mm	220V 2KW	SS304
6	16mm	600mm	220V 1.5KW	SS304
6	16mm	600mm	220V 2KW	SS304
6	16mm	800mm	220V 1.5KW	SS304
6	16mm	800mm	220V 2KW	SS304
6	16mm	800mm	220V 2.5KW	SS304
Other require can be customized

About Cartridge Heater

Cartridge heaters can be considered "component heaters" that are used to generate heat in many different applications

These process heaters are primarily used in mold and fit snug inside a cavity and helps heat solids by reaching high temperatures. Various diameters allow for it to be used in any cavity. Lead wires extend from the end to your control panels.

Cartridge heaters are used as a water heater element and in a wide variety of applications, such as bag sealing applications, hydraulic oil applications, motor oil applications, gearboxes, water heating applications as well as laboratory and food equipment.

Key features and applications of immersion cartridge heaters include:

Immersion Heating: These heaters are designed to be immersed directly in the liquid or gas to

be heated, providing efficient and direct heat transfer.

Versatility: Immersion cartridge heaters can be used in a variety of applications, including water

heating, oil heating, chemical processing, food processing, and more.

Precise Temperature Control: Many immersion cartridge heaters come with built-in temperature

sensors or controllers to maintain precise and consistent temperature levels.

Fast Heating: The direct contact with the fluid or gas allows for rapid and efficient heating.

High Heat Transfer Efficiency: The metal sheath of the heater provides a large surface area for

heat transfer, enhancing the overall heating performance.

Various Configurations: Immersion cartridge heaters come in different lengths, diameters,

and wattages to suit various tank or vessel sizes and heating requirements.

Durability: The metal sheath protects the internal components from environmental factors, making

immersion cartridge heaters durable and suitable for harsh conditions.

Easy Installation: They are typically designed with mounting fittings or flanges for easy

installation and removal.

Main Features

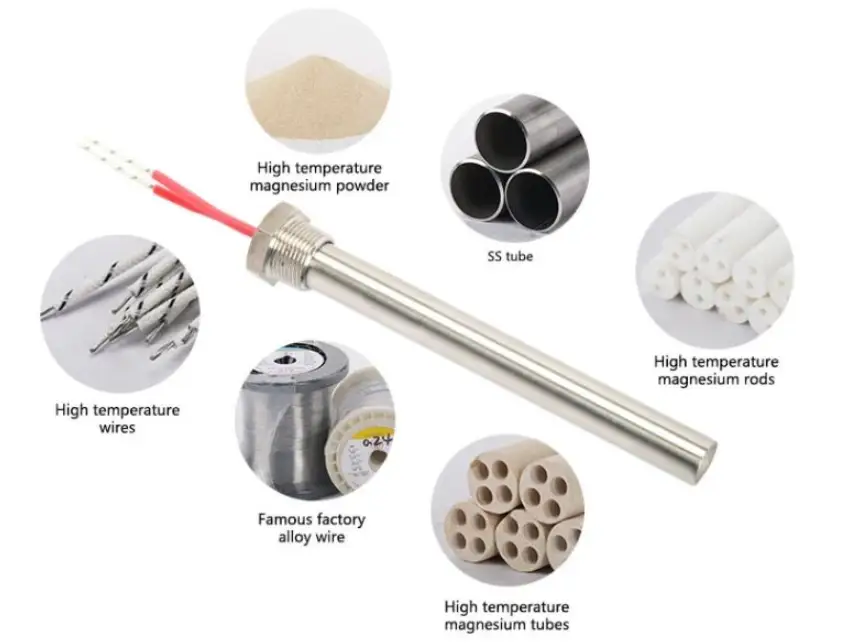

* Imported resistance wire, ensure high density large wattge

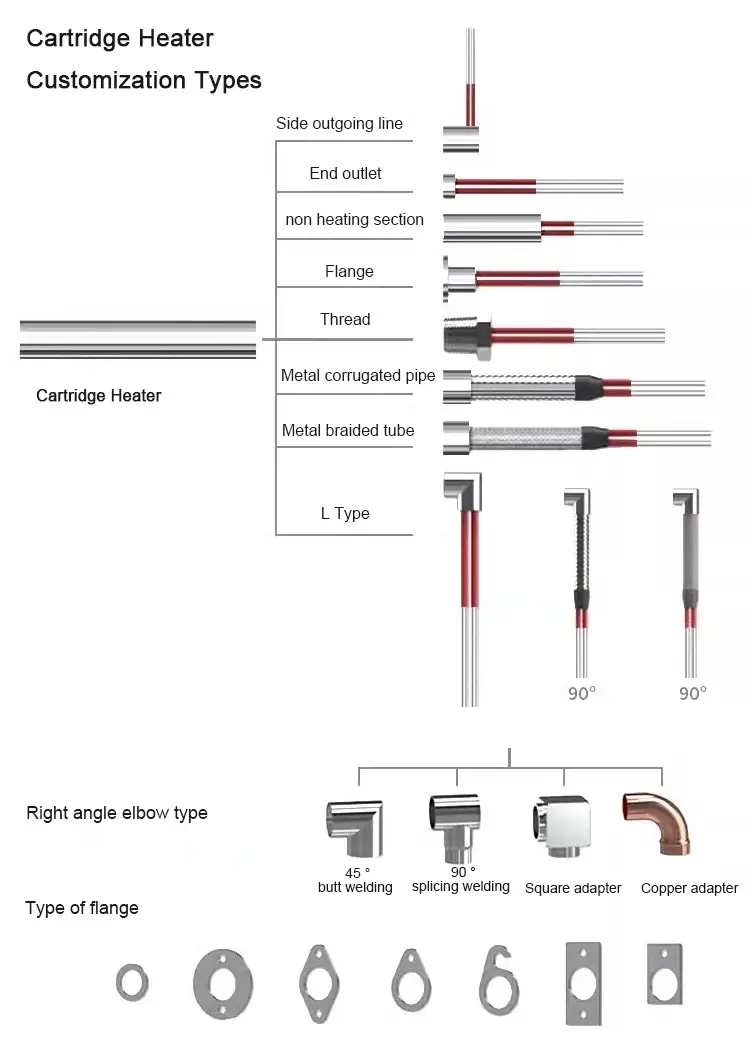

* Fasteners and flanges to meet a variety of installation requirements.

* High temperature, wear-resistant, waterproof.

* High-Density Swaged Cartridge Heater

* Low density cartridge heater are available

* Various diameter from 3MM-25MM

* Good Alloy tube sheath for high corrosion resistance

Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;

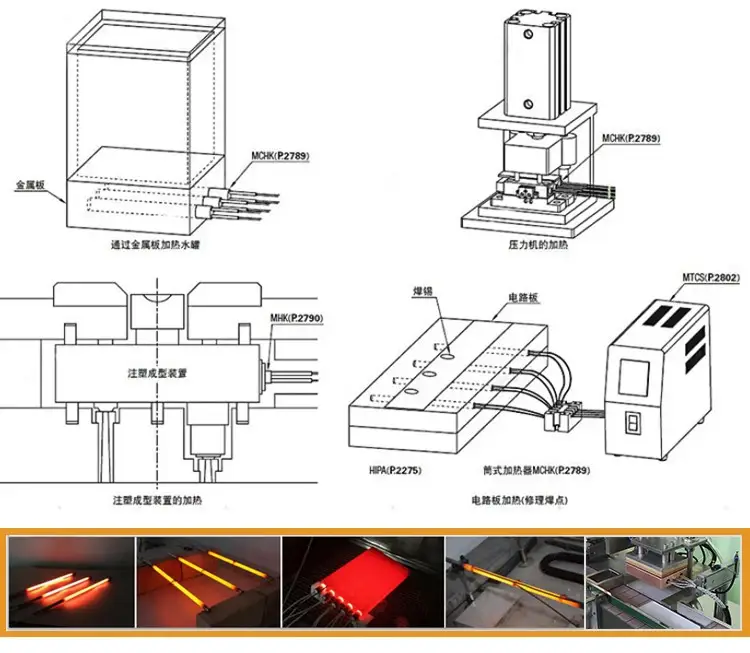

Application

· Injection moulding - Internal heating of nozzles

· Hot runner systems - Heating of manifolds

· Packaging industry - Heating of cutting bars

· Packaging industry - Heating of hot stamps

· Laboratories - Heating of analytical equipment

· Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

· Telecommunications: Deicing, Enclosure Heater

· Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

· Food Service: Steamers, Dish Washers,

· Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
