HIGH-TEMPERATURE EFFICIENCY
Electric Far Infrared Ceramic Heater
Electric Far Infrared Ceramic Heater by LICHENGDA. Radiant coverage and emitter mounting, configuration details and made-to-drawing quotation for radiant drying, warming and thermoforming.
Product image gallery (6)
PRODUCT ENGINEERING
Radiant coverage and emitter mounting
Electric Far Infrared Ceramic Heater: Radiant heat transfer depends on emitter temperature, spacing and the target surface. Provide the heated-area layout, reflector arrangement and line speed or exposure time before selecting wattage.
Keep mounts and terminals within their temperature limits. Review guard clearances and zone control; an integrated sensor, when specified, must match the controller input.
For Electric Far Infrared Ceramic Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Electric Far Infrared Ceramic Heater lists Size: 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60mm; Resistance wire: NiCr Heating Wire; Heater Voltage: 120V, 220V, 230V, 240V; Useful wavelength range: 2-10 microns. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Electric Far Infrared Ceramic Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Radiant drying, warming and thermoforming. The final suitability of Electric Far Infrared Ceramic Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

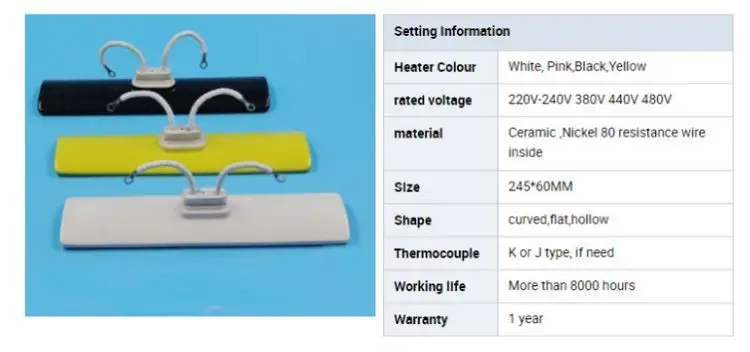

| Size | 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60mm |
|---|---|
| Wattage available | 125-1500W |
| Resistance wire | NiCr Heating Wire |
| Heater Voltage | 120V, 220V, 230V, 240V |
| Useful wavelength range | 2-10 microns |
| Average Operating Life | Up to 20,000 hrs depending on conditions |
| Recommended radiation distance from heater | 100 mm to 200 mm |
| Thermocouple | J or K Type |
| Lead Wire | 100mm ceramic beaded power leads |

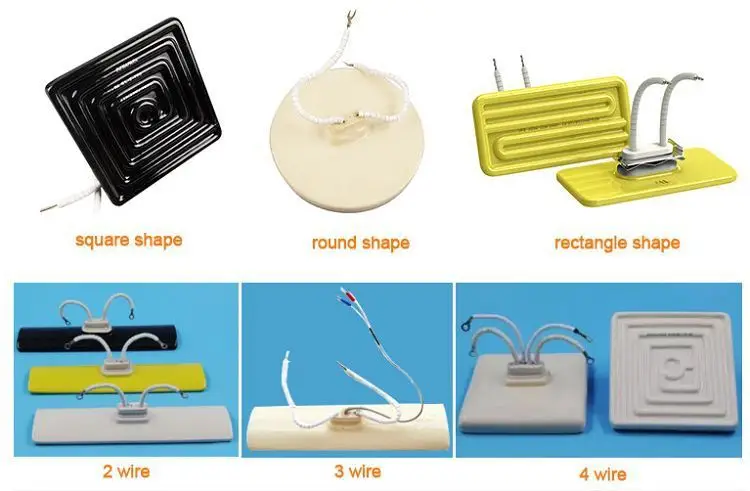

| Terminals Option | Pin or Ring |
ARCHIVED PRODUCT INFORMATION

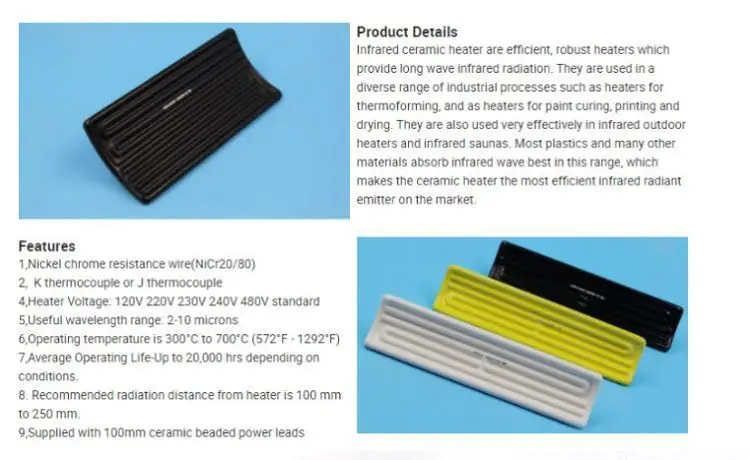

Description

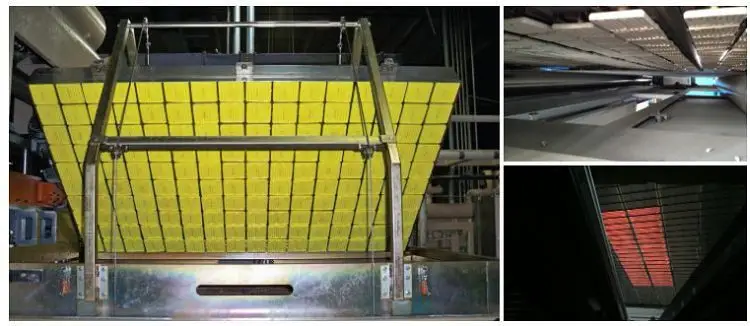

Infrared ceramic heater are widely used in pre-heating of plastic sheets for vacuum forming & thermoforming, drying paints, lacquer & varnish curing, drying printing inks, drying textiles, activating adhesives, removing surface water from objects or moisture removal from fabric and paper, animal husbandry and rearing. The ceramic IR heaters are highly efficient. Ceramic infrared heater offers precise targeting and control with minimal peripheral heat. It is possible to apply heat only where and when it is required. The energy in an infrared heater is transmitted at the speed of light from the element to the product. A constant rate of heating is obtained because the source temperature is normally much higher than that of the product even at the end of the heating cycle.
Size | 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60mm |
Wattage available | 125-1500W |
Resistance wire | NiCr Heating Wire |
Heater Voltage | 120V, 220V, 230V, 240V |
Useful wavelength range | 2-10 microns |
Average Operating Life | Up to 20,000 hrs depending on conditions |
Recommended radiation distance from heater | 100 mm to 200 mm |
Thermocouple | J or K Type |
Lead Wire | 100mm ceramic beaded power leads |
Terminals Option | Pin or Ring |
Color Option | White / Yellow / Black / Pink |
Product Advantages
1. Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.
2. Thermal response time: Less than 20 minutes from the room temperature to the set temperature
3. Durability: The surface keeps smooth after five times heating and cooling exchanges.
4. The radiation surface temperature uniformity: ≤15%
5. Power error: ≤5%
6. Cold insulation resistance: 500V mega meter >2m
7. Thermal insulation resistance: 500V megameter >0.5m
8. The service life of >3000 hours
Application
1. Widely used in Injection Moulding.
2. Film extruders.
3. Blow Moulding.
4. All Plastic & Rubber Processing Machinery.
5. Laboratory Equipment.
Hot Tags: electric far infrared ceramic heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Ceramic Heater, Far Infrared Ceramic Heater Plates, Far Ceramic Infrared Heater, Electric Infrared Ceramic Heater Element, Infrared Ceramic Heater Lamp
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
