HIGH-TEMPERATURE EFFICIENCY
Far Infrared Ceramic Heater Plate
Far Infrared Ceramic Heater Plate manufactured by LICHENGDA with custom voltage, wattage, dimensions, materials and termination options for industrial applications.
ENGINEERING GUIDANCE
Specify this product correctly
Radiant ceramic plates transfer energy without direct contact and suit drying, warming and thermoforming processes. Emitter temperature, distance and reflector design determine heat distribution.
Final voltage, wattage, dimensions, material and termination are reviewed against your operating conditions before production.
- ✓ Nickel-chrome resistance wire in ceramic blocks
- ✓ Integrated thermal insulation
- ✓ High-temperature stainless steel outer shell
- ✓ Optional J or K thermocouple
REFERENCE SPECIFICATIONS
Available configuration
| Voltage | 110 / 220 / 380 V or custom |
|---|---|
| Power | 50–4400 W typical |
| Sheath temperature | Up to 700°C by design |
| Construction | Ceramic / fiber insulation / stainless shell |
| Applications | Extrusion, molding, high-temperature machinery |
TYPICAL APPLICATIONS
Where this product is used
- Radiant industrial heating
- High-temperature machinery
- Process drying and warming
QUOTE CHECKLIST
Send these details
- Required voltage and wattage
- Dimensions or technical drawing
- Operating temperature and environment
- Lead, connector and mounting requirements
- Sample and production quantity

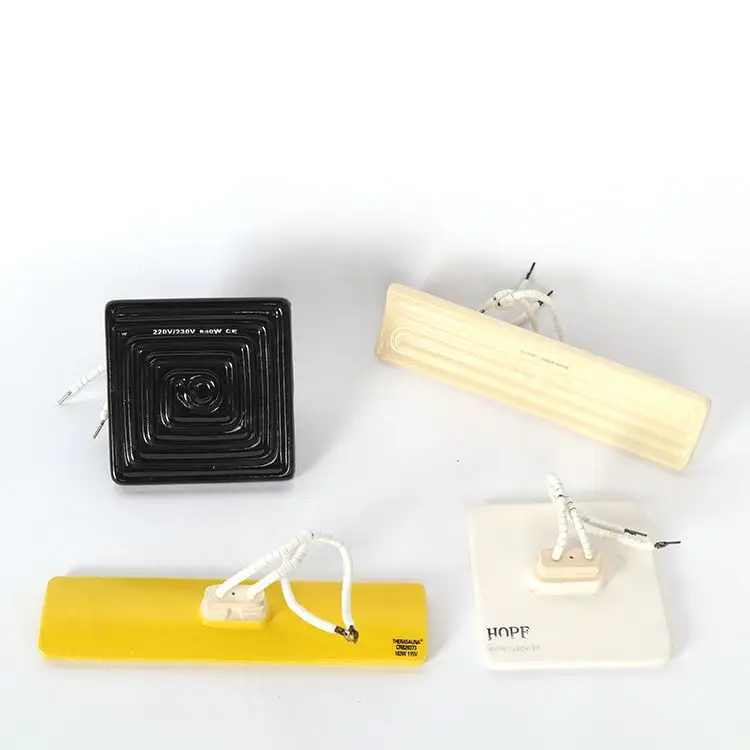

Product image gallery (6)
PRODUCT ENGINEERING
Radiant coverage and emitter mounting
Far Infrared Ceramic Heater Plate: Radiant heat transfer depends on emitter temperature, spacing and the target surface. Provide the heated-area layout, reflector arrangement and line speed or exposure time before selecting wattage.
Keep mounts and terminals within their temperature limits. Review guard clearances and zone control; an integrated sensor, when specified, must match the controller input.
For Far Infrared Ceramic Heater Plate, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Far Infrared Ceramic Heater Plate lists material: ceramic,Nickel 80 resistance wire inside; size: 245*60mm,120*60mm,122*122mm,245*80mm,60*60mm or customzied; voltage: 110v-480v. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Far Infrared Ceramic Heater Plate, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Radiant drying, warming and thermoforming. The final suitability of Far Infrared Ceramic Heater Plate depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| color | white ,pink,black,yellow |
|---|---|
| material | ceramic,Nickel 80 resistance wire inside |
| size | 245*60mm,120*60mm,122*122mm,245*80mm,60*60mm or customzied |

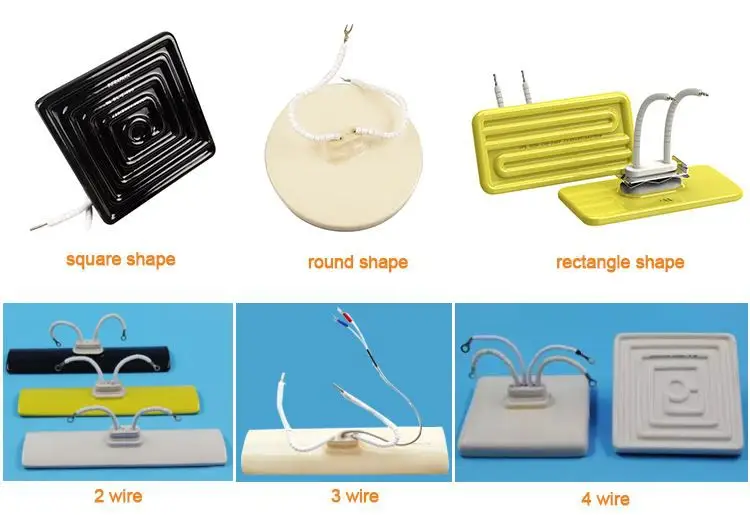

| shape | curved/falt/hollow |
| voltage | 110v-480v |
| watt | 125w-3000w |
| thermocouple | K/J type |
ARCHIVED PRODUCT INFORMATION
Description
color | white ,pink,black,yellow |
material | ceramic,Nickel 80 resistance wire inside |
size | 245*60mm,120*60mm,122*122mm,245*80mm,60*60mm or customzied |
shape | curved/falt/hollow |
voltage | 110v-480v |
watt | 125w-3000w |
thermocouple | K/J type |
Product advantages
1:High-quality nickel-chromium wire 2040 material, fast heating, durable, imported clay material, good thermal shock, high emissivity glaze layer, high temperature
2:supplied with 100mm ceramic beaded power leads
3:recommended radiation distance from heater is 100mm to 250mm
Hot Tags: far infrared ceramic heater plates, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Far Ceramic Infrared Heater, Electric Infrared Ceramic Heater Element, Far Infrared Ceramic Heater Plates
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
