Infrared Ceramic Heating Plate with Thermocouple
Infrared Ceramic Heating Plate with Thermocouple by LICHENGDA. Radiant coverage and emitter mounting, configuration details and made-to-drawing quotation for radiant drying, warming and thermoforming.
Product image gallery (6)
PRODUCT ENGINEERING
Radiant coverage and emitter mounting
Infrared Ceramic Heating Plate with Thermocouple: Radiant heat transfer depends on emitter temperature, spacing and the target surface. Provide the heated-area layout, reflector arrangement and line speed or exposure time before selecting wattage.
Keep mounts and terminals within their temperature limits. Review guard clearances and zone control; an integrated sensor, when specified, must match the controller input.
For Infrared Ceramic Heating Plate with Thermocouple, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Infrared Ceramic Heating Plate with Thermocouple lists Power: 125-1500W; Usually size: 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60mm; Voltage: 110-440 volts. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Infrared Ceramic Heating Plate with Thermocouple, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Radiant drying, warming and thermoforming. The final suitability of Infrared Ceramic Heating Plate with Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product Name | Electric ceramic heater |
|---|---|

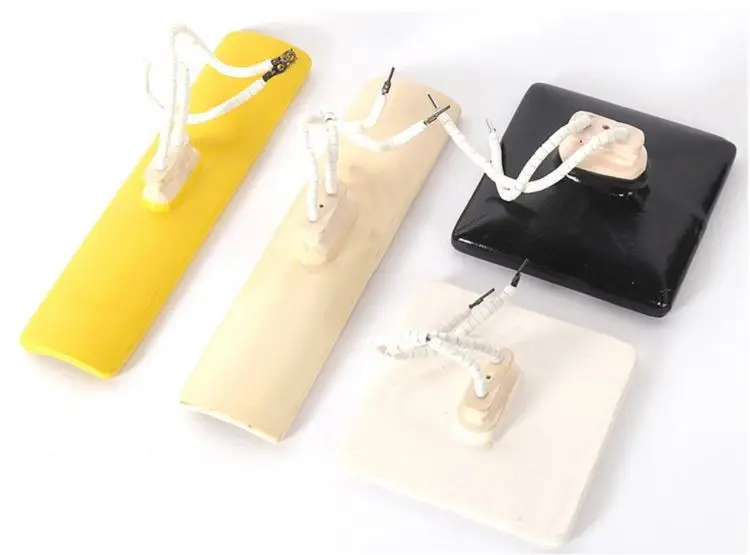

| Color | White, yellow, black, etc |
| Power | 125-1500W |
| Usually size | 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60mm |

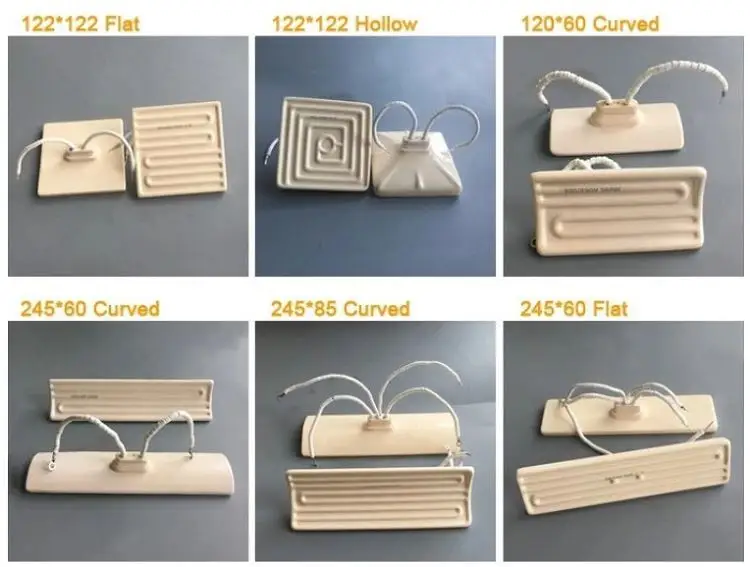

| Shapes | Trough, Hollow and Flat |
| Voltage | 110-440 volts |

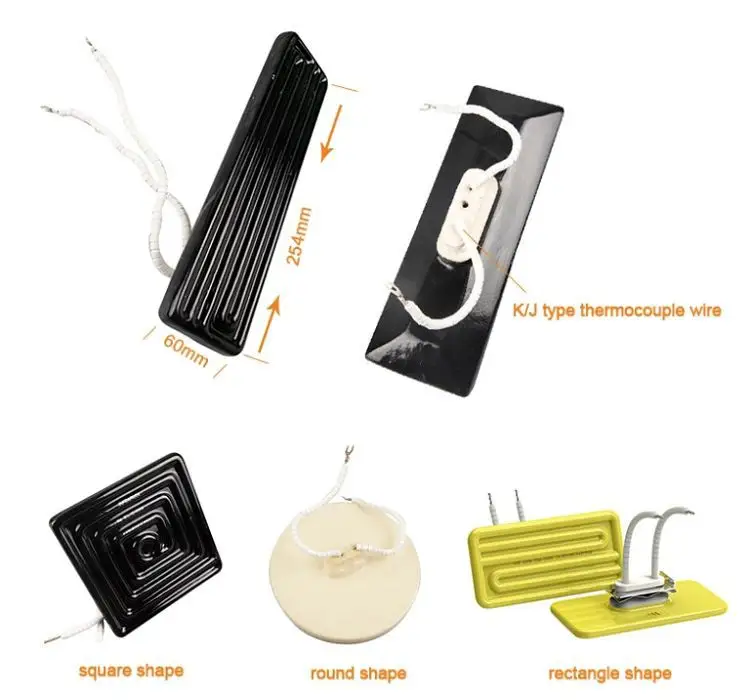

| Thermocouple | Optional, K or J Type |
| Operating Temperature | 300C - 700C |
ARCHIVED PRODUCT INFORMATION
Description
Infrared ceramic heater are widely used in pre-heating of plastic sheets for vacuum forming & thermoforming, drying paints, lacquer & varnish curing, drying printing inks, drying textiles, activating adhesives, removing surface water from objects or moisture removal from fabric and paper, animal husbandry and rearing. The ceramic IR heaters are highly efficient. Ceramic infrared heater offers precise targeting and control with minimal peripheral heat. It is possible to apply heat only where and when it is required. The energy in an infrared heater is transmitted at the speed of light from the element to the product. A constant rate of heating is obtained because the source temperature is normally much higher than that of the product even at the end of the heating cycle.
Product Name | Electric ceramic heater |
Color | White, yellow, black, etc |
Power | 125-1500W |
Usually size | 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60mm |
Shapes | Trough, Hollow and Flat |
Voltage | 110-440 volts |
Thermocouple | Optional, K or J Type |
Operating Temperature | 300C - 700C |
Product Advantages
1. Good chemical stability, strong oxidation resistance and high corrosion resistance;
2. Use non-radiant surface with small heat loss and energy saving;
3. Matrix (not glaze) heated to 800 ℃ in cold repeated dozens of times no crack;
4. The radiating element (finished product) is electrified and heated to the rated power, and the product is immersed in cold water for 40 times without loss after power off;
5. Component radiation rate is greater than 0.9.
Application
1. Widely used in Injection Moulding.
2. Film extruders.
3. Blow Moulding.
4. All Plastic & Rubber Processing Machinery.
5. Laboratory Equipment.
Hot Tags: infrared ceramic heating plate with thermocouple, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Far Ceramic Infrared Heater, Electric Infrared Ceramic Heater Element, Far Infrared Ceramic Heater Plates
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
