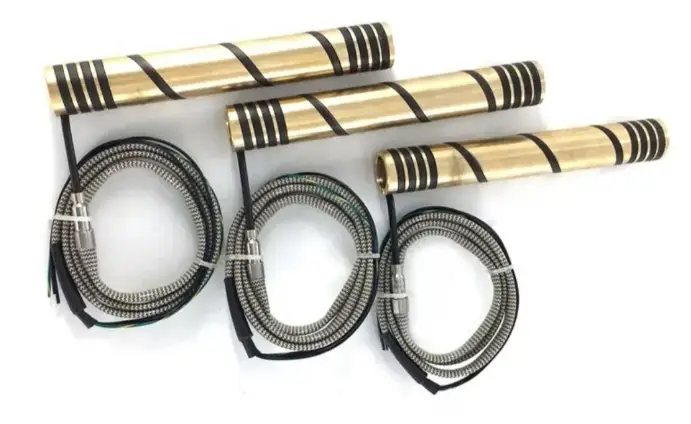

Brass Nozzle Heater
Brass Nozzle Heater by LICHENGDA. Drawing review and thermal interfaces, configuration details and made-to-drawing quotation for made-to-drawing heating assemblies.

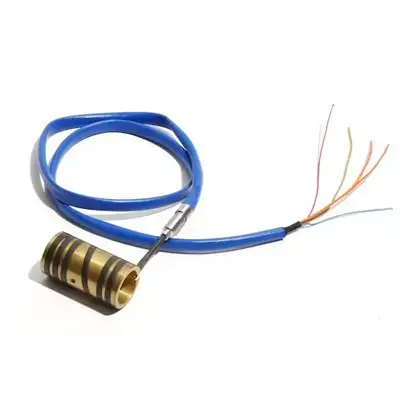

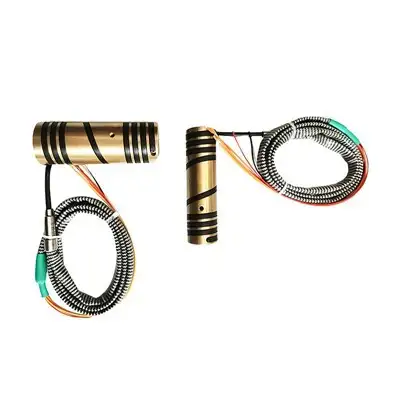

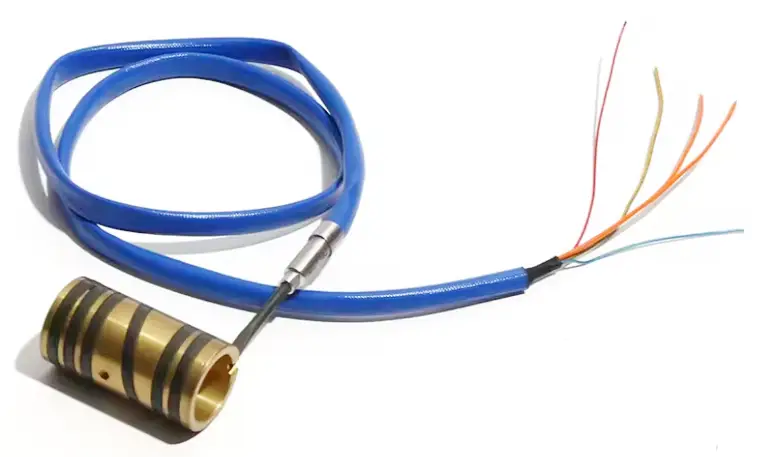

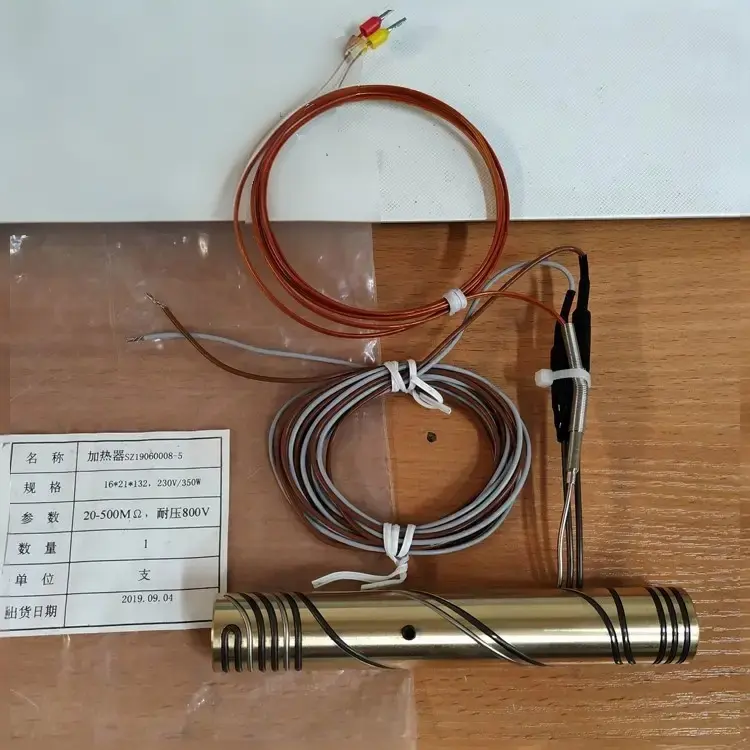

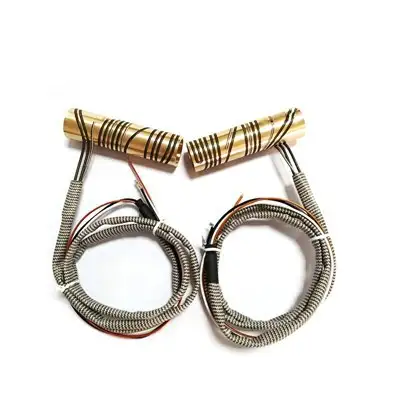

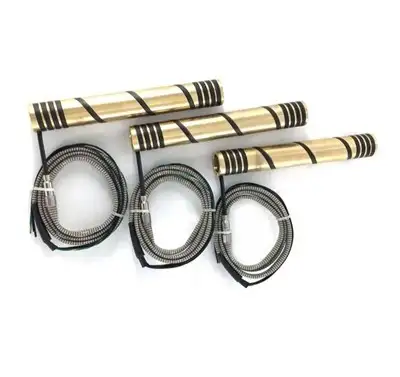

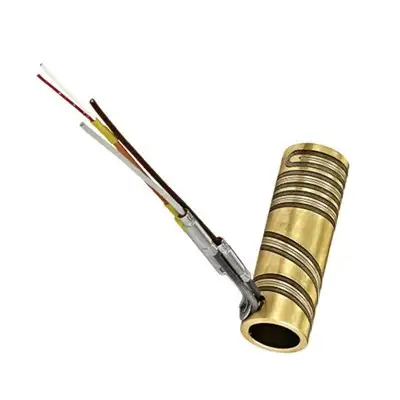

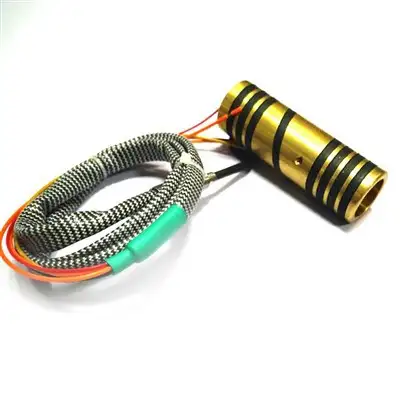

Product image gallery (7)
PRODUCT ENGINEERING
Drawing review and thermal interfaces
Brass Nozzle Heater: Supply a drawing showing active and cold zones, mounting faces and electrical exits. Identify the heated material, heat-loss paths and required warm-up time so the geometry and power can be reviewed together.
Specify environmental exposure, control method and service access. Agree a sample configuration and inspection points before committing the design to a production quantity.
For Brass Nozzle Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Brass Nozzle Heater lists material: copper; size: inside diameter 8-60mm,length 25-200mm; Inner diameter tolerance: ±0.05mm; Sleeve length tolerance: ±0.05mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Brass Nozzle Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Made-to-drawing heating assemblies. The final suitability of Brass Nozzle Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| material | copper |
|---|---|
| size | inside diameter 8-60mm,length 25-200mm |
| thermocouple | J type (Standard) or K type |
| min wall thickness | 2mm-3mm |
| Inner diameter tolerance | ±0.05mm |
| Sleeve length tolerance | ±0.05mm |

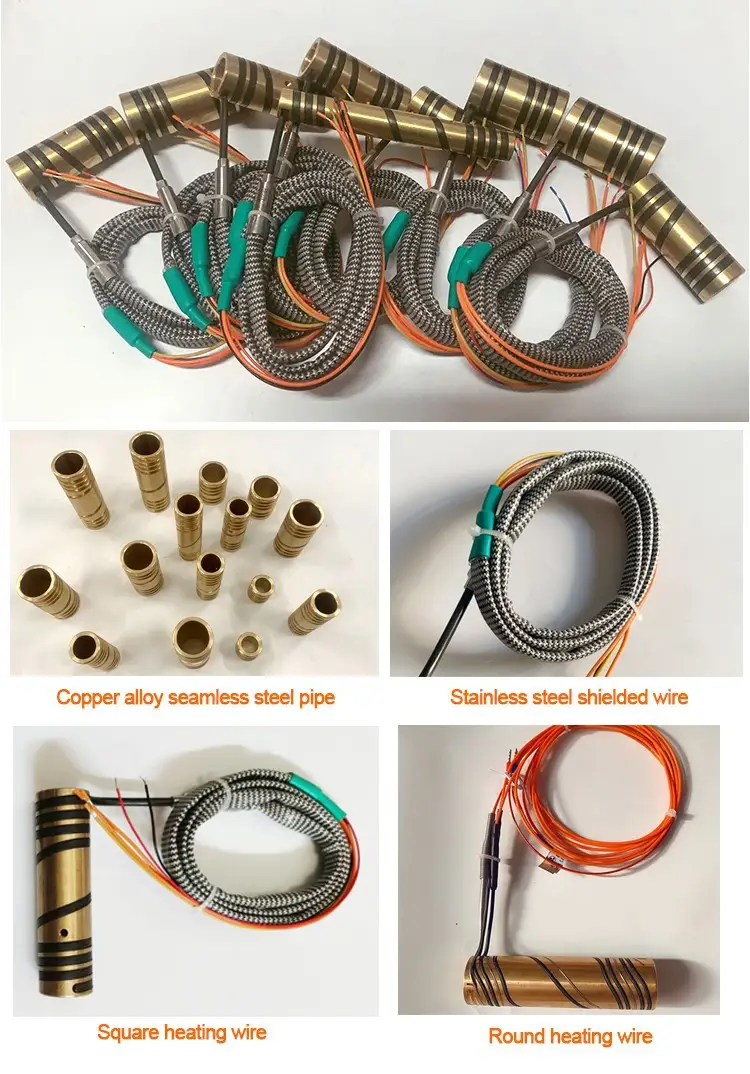

| Round heating wire | 1.6mm,1.8mm.2.0mm.2.2mm |
| Square heating wire | 2.2*4.2mm,3*3mm,3.5*3.5mm |
ARCHIVED PRODUCT INFORMATION
Description
brass heater is a type of heating element that is made of brass, which is a copper-zinc alloy. Brass heaters are
commonly used in industrial and commercial applications where a reliable and durable heating source is required.
| material | copper |
| size | inside diameter 8-60mm,length 25-200mm |
| thermocouple | J type (Standard) or K type |
| min wall thickness | 2mm-3mm |
| Inner diameter tolerance | ±0.05mm |
| Sleeve length tolerance | ±0.05mm |
| Round heating wire | 1.6mm,1.8mm.2.0mm.2.2mm |
| Square heating wire | 2.2*4.2mm,3*3mm,3.5*3.5mm |
| The minimum spacing between ID and OD is 7mm. | |
Brass heaters are typically designed as cartridge heaters, with a cylindrical shape that is easy to install in a variety of equipment and machinery. They are available in a range of sizes and watt densities to meet different heating requirements.
One of the advantages of using brass heaters is their excellent thermal conductivity. Brass has a high thermal conductivity, which means it can transfer heat quickly and efficiently. This makes brass heaters ideal for applications where rapid heating or precise temperature control is required.
Brass heaters are also highly corrosion-resistant, which makes them ideal for use in harsh environments where other types of heaters might fail. They can operate in high temperatures and are able to withstand thermal shock and vibration.
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: brass nozzle heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Hot Runner Coil Spring Heater, Electric Spring Hot Runner Brass Heater, Hot Runner Copper Coil Heaters
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
