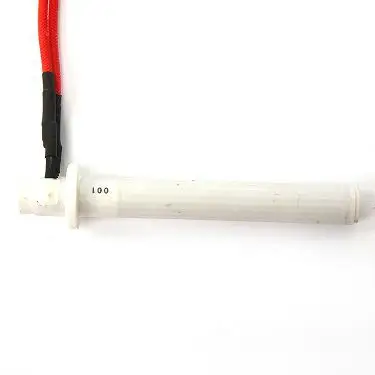

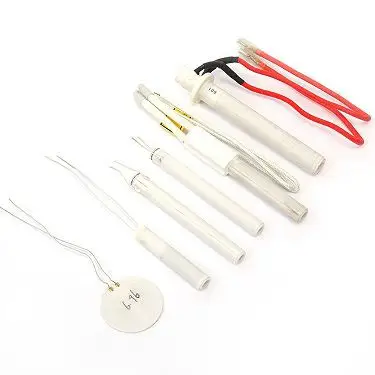

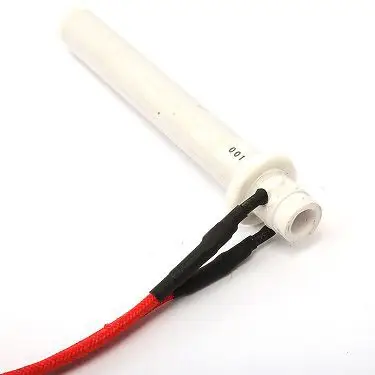

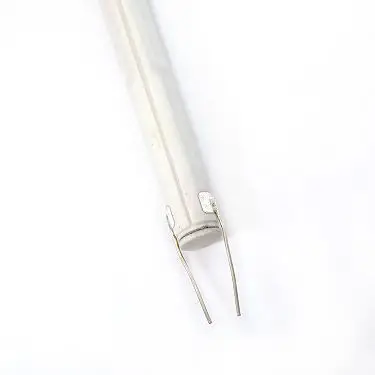

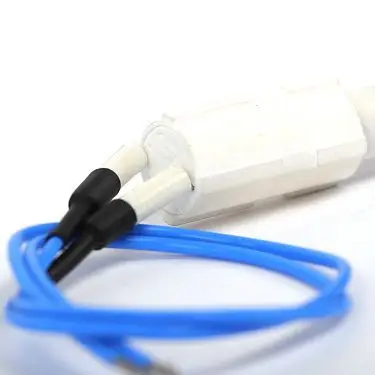

Pellet Ceramic Igniter for Stove
Pellet Ceramic Igniter for Stove by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (10)
PRODUCT ENGINEERING
Ignition fit and airflow
Pellet Ceramic Igniter for Stove: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
For Pellet Ceramic Igniter for Stove, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Pellet Ceramic Igniter for Stove, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of Pellet Ceramic Igniter for Stove depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Electrical Rating | Confirmed for the application |
|---|---|
| Dimensions / Shape | Made to drawing |
| Materials / Termination | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

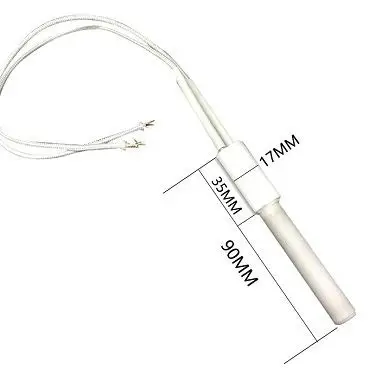

Dimension | Dimension | Max. Dia. Flange | Max Temperature |
230V 150W | 10.5 x 93 mm | 17.5 mm | 860 Deg.C |
230V 250W | 10.5 x 102 mm | 17.5 mm | 960 Deg.C |
Specification | Dimension | Max. Dia. Flange | Max Temperature |
230V 300W | 11.5 x 107 mm | 26 mm | 1200 Deg.C |
230V 300W | 11.5 x 112 mm | 17.7 mm | 1200 Deg.C |
230V 300W | 11.5 x 107 mm | No Flange | 1200 Deg.C |
230V 300W | 11.5 x 107 mm | No Flange | 1200 Deg.C |
230V 300W | 11.5 x 107 mm | 1/2'' | 1200 Deg.C |
230V 300W | 11.5 x 107 mm | 3/8'' | 1200 Deg.C |
230V 300W | 11.5 x 107 mm | 3/8'' | 1200 Deg.C |
Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills. It has a high efficiency(more than 90%)of ignition and very easy to install before operating.
It can instantly heat 300℃ in 10 seconds, max temperature is 1200℃
Application
•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner
•Gas Stove Burner ect
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was founded in 2003, it has a registered capital of 10 million and 100 employees. The plant covers an area of 2000 m² and owns 20+ advanced production equipment imported from home and abroad.
Main products: industrial heater elements and temperature measuring instrument.
Documentation: confirm the CE, RoHS, quality-system and test documents applicable to the quoted product and order.
Enterprise philosophy: Customer and Quality First, Product quality is the vitality of an enterprise.
Company Profile
Certificate
Hot Tags: pellet ceramic igniter for stove, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, cartridge heater pellet stove, igniter cartridge heater for pellet stove, Silicon Nitride Igniter Heater, Ceramic Igniter For Pellet Stove, Wood Ceramic Pellet Stove Igniter, Silicon Nitride Igniter
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
