Silicon Nitride Hot Surface Igniter
Silicon Nitride Hot Surface Igniter by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Ignition fit and airflow
Silicon Nitride Hot Surface Igniter: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
For Silicon Nitride Hot Surface Igniter, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Silicon Nitride Hot Surface Igniter lists Material: Silicon Nitride; Voltage: 110-220V, 220-240V; Power: 400W/ 600W/ 650W/ 900W; size: 95*17*4mm, 128*17*4mm, 138*17*4mm, 191*17*4mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Silicon Nitride Hot Surface Igniter, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of Silicon Nitride Hot Surface Igniter depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Material | Silicon Nitride |
|---|---|
| Voltage | 110-220V, 220-240V |
| Power | 400W/ 600W/ 650W/ 900W |
| Max Temperature | ≤1200℃ |
| size | 95*17*4mm, 128*17*4mm, 138*17*4mm, 191*17*4mm |
| Application | Fireplace; Stove; Biomass Heating; BBQ Grills & Cookers |
ARCHIVED PRODUCT INFORMATION
Description

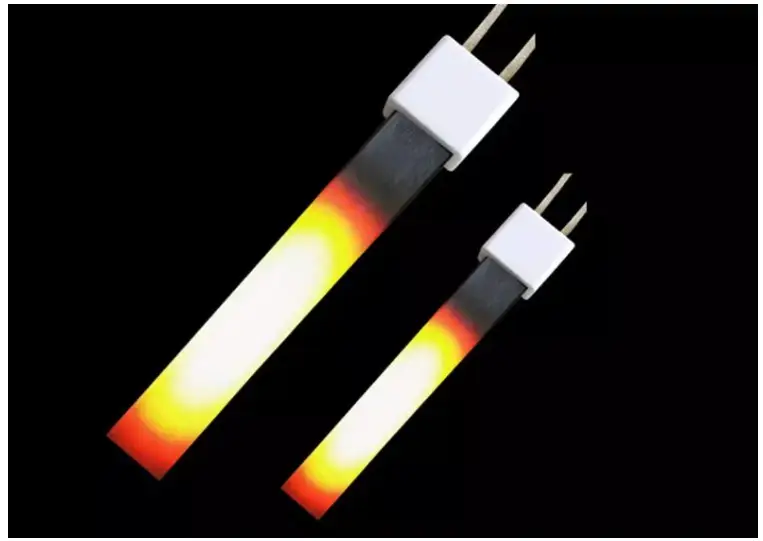

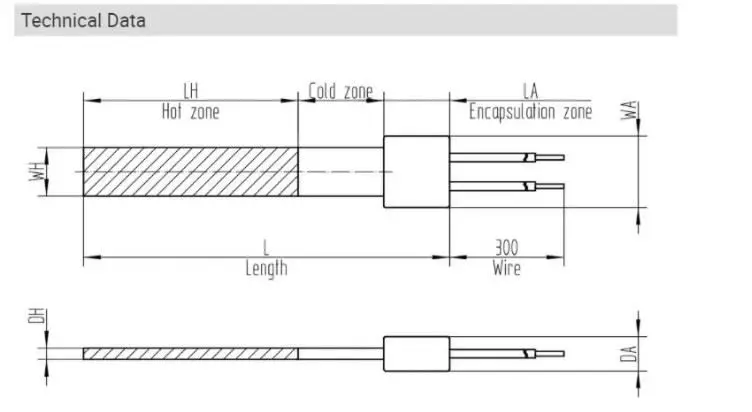

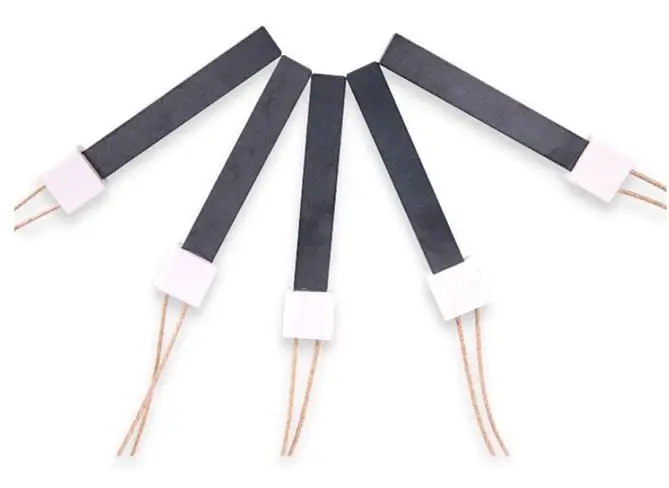

Ceramic pellet igniter for wood pellet burner are normally rectangular in shape. These igniters have a lot operation zone up to 1000 degree and a cold zone in the contact area. Encapsulated terminal can prevent short circuit caused by conductive contamination.
Material | Silicon Nitride |
Voltage | 110-220V, 220-240V |
Power | 400W/ 600W/ 650W/ 900W |
Max Temperature | ≤1200℃ |

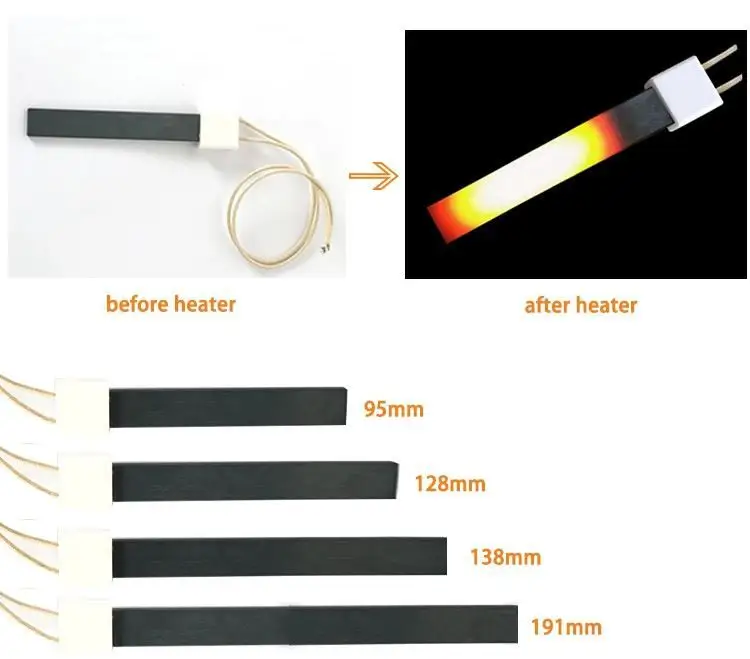

size | 95*17*4mm, 128*17*4mm, 138*17*4mm, 191*17*4mm |
Application | Fireplace; Stove; Biomass Heating; BBQ Grills & Cookers |
Advantages
1: Using high-performance silicon nitride as the substrate has excellent oxidation resistance, long service life and fast heating speed.
2: Excellent electrical insulation performance, small size, light weight, strong high temperature strength.
Hot Tags: silicon nitride hot surface igniter, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 230v cartridge heater igniter, Cartridge Heater Wood Pellet Igniter, 220v igniter pellet cartridge heater, 220v cartridge heater for pellet stove, Pellet Ignition Ceramic, Silicon Nitride Ceramic Ignition Rod
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
