Silicon Nitride Igniter Heater
Silicon Nitride Igniter Heater by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Ignition fit and airflow
Silicon Nitride Igniter Heater: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
For Silicon Nitride Igniter Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Silicon Nitride Igniter Heater lists Material: Silicon Nitride; Voltage: 110-220V, 220-240V; Power: 400W/600W/900W. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Silicon Nitride Igniter Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of Silicon Nitride Igniter Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Material | Silicon Nitride |
|---|---|
| Voltage | 110-220V, 220-240V |
| Power | 400W/600W/900W |
| Max Temperature | ≤1200℃ |
| Application | Fireplace; Stove; Biomass Heating; BBQ Grills & Cookers |
ARCHIVED PRODUCT INFORMATION
Description

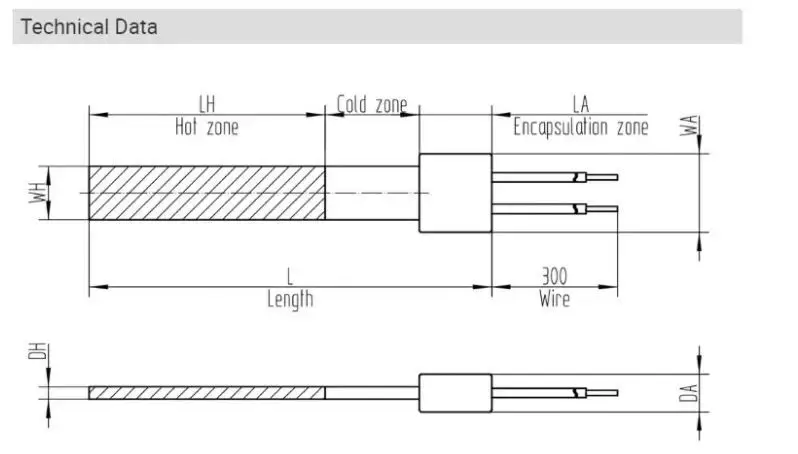

Silicon nitride igniters are normally rectangular in shape. These igniters have a lot operation zone up to 1000 degree C . and a cold zone in the contact area. Encapsulated terminal can prevent short circuit caused by conductive contamination. They can be operated with or without a controller. Silicon nitride igniters have several times the durability than that of silicon carbide products.
Dimension , power and input voltage are customizable according to your requirement.

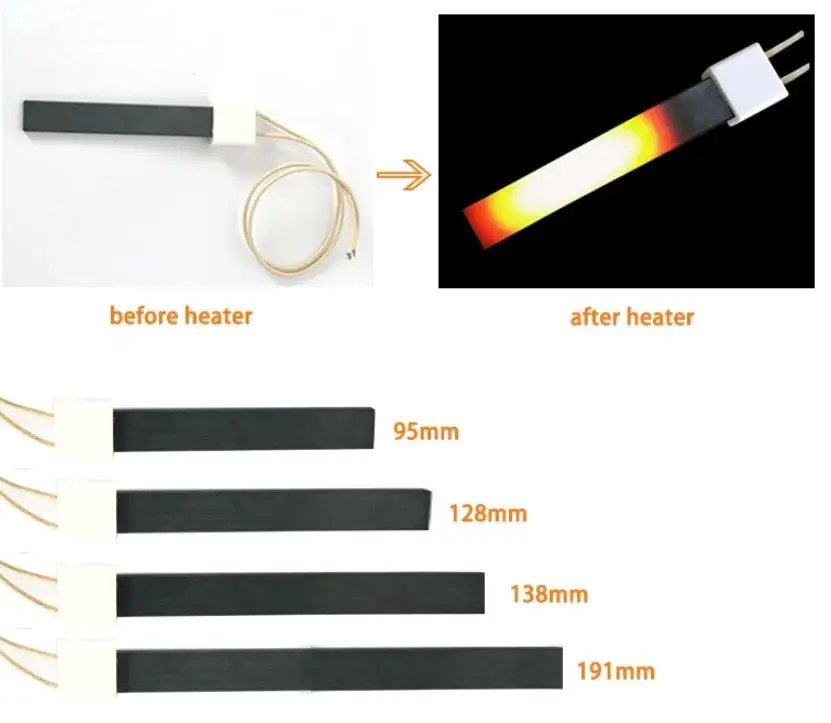

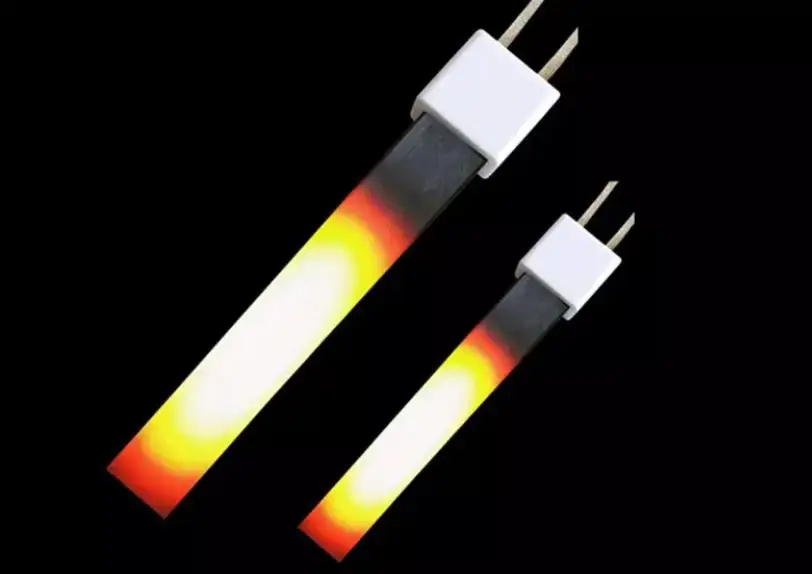

Silicon Nitride igniter can heating up to 800 to 1000degree within tens of seconds. Silicone Nitride ceramic can sustain corrosion of melting metals. With proper instatllation and igniting process , the igniter can server several years.
Material | Silicon Nitride |
Voltage | 110-220V, 220-240V |
Power | 400W/600W/900W |
Max Temperature | ≤1200℃ |
Application | Fireplace; Stove; Biomass Heating; BBQ Grills & Cookers |
Advantages of Silicon Nitrid Igniter
1) High effciency,heating up quickly
2) Safety, electricity insulation
3) Corrosion resistance to many acids and alkalis
4) High temperature resistance
5) Good low temperature startting
6) Long service life
7) Good stability and power accuracy
8) High strength,toughness and hardness
9) Small size and light weight
Application
1) Ignition of solid fuels (e.g. wood pellets)
2) Ignition of gas or oil
3) Ignition of exhaust fumes
4) Heating of process gases
5) Pyrotechnics
6) Brazing machines
7) Heater for corrosive atmosphere
8) R&D - laboratory equipment, measuring and testing equipment, reactors
Hot Tags: silicon nitride igniter heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Silicon Nitride Igniter Heater, 300w Ceramic Igniter For Wood, 220v electric cartridge heater pellet, Wood Ceramic Pellet Stove Igniter, Silicon Nitride Igniter, Pellet Igniter
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
