20mm Heat Resistant Tape

Description

Flexible Rubber Silicone Rubber Belt Pipe Heater are available as wire wound or etched foil. Wire wound elements consist of the resistance wire wound on a fiberglass cord for support and stability. Etched foil heaters are made with a thin metal foil (.001") as the resistance element. Wire wound is recommended and preferred for small to medium size quantities, medium to large sized heaters, and to produce prototypes to prove out the design parameters prior to entering into large volume production runs with etched foil.

Material	Silicone Rubber	Voltage	220V and other customized
Temperature Range	0-200 Degree	Power	100W-1000W
Length	1m to 10m	Lead Length	300mm
Width	15mm/ 20mm/ 25mm/ 30mm/ 50mm

voltage :220v	size
size	25mm*1m 100w
15mm*1m 100w	25mm*2m 200w
15mm*2m 200w	25mm*3m 300w
15mm*3m 300w	25mm*5m 500w
15mm*5m 500w	25mm*10m 1000w
15mm*10m 1000w	30mm*1m 100w
20mm*1m 100w	30mm*2m 200w
20mm*2m 200w	30mm*3m 300w
20mm*3m 300w	30mm*5m 500w
20mm*5m 500w	30mm*10m 1000w
20mm*10m 1000w	50mm*1m 100w

1. Temperature range: -60.0~200℃

2. Electric resistance precision: ±10%( bigger value selected)

3. Power density: 0.10~1.50w/cm²

4. Mechanical pressure: 100.00kg/cm²

5. Minimum bending radius: 3.20mm

High-quality silicone material, fireproof and waterproof, safe and stable, using alloy wire to conduct heat

Good heat resistance, small thermal expansion coefficient, large electrical conductivity, corrosion

resistance, good electrical conductivity

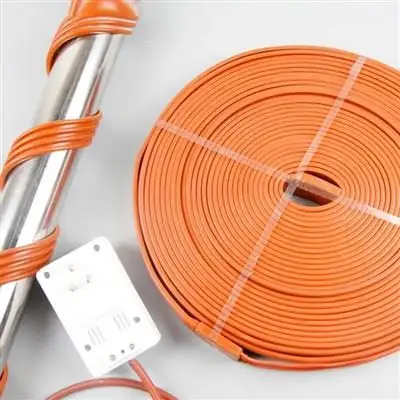

Spiral Silicone Rubber Heating Tape (also known as Twisted Heating Tape, Spiral Electric Heat Tape, Pipe Trace Heat Tape)

Core Structure:

Heating Element: Nickel-chromium heating wire wound in a spiral shape, encapsulated between two layers of fiberglass-reinforced silicone rubber

Appearance: Self-contained "memory-type" spiral structure, twisted in a 麻花 shape, which can naturally fit the pipeline

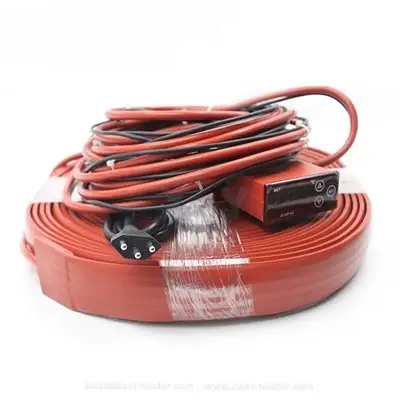

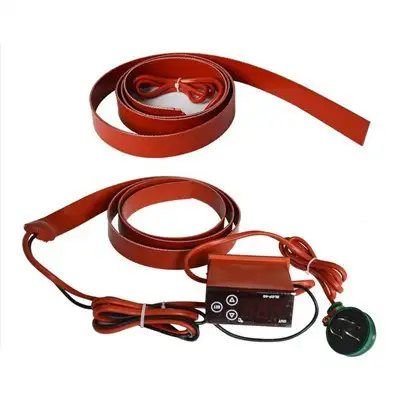

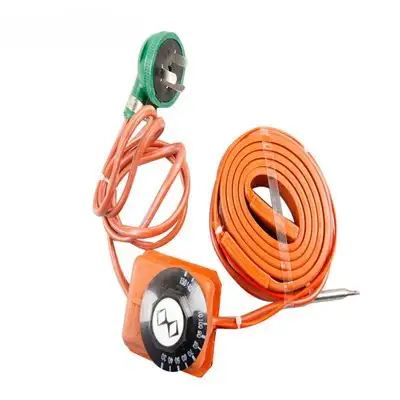

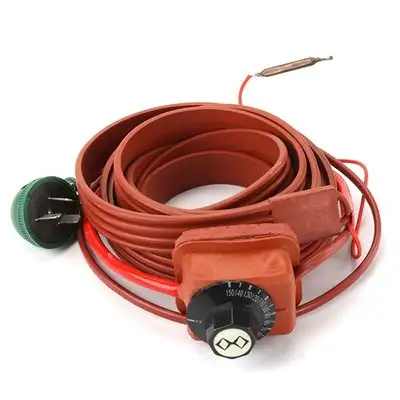

Supporting Parts: Equipped with silicone insulated power cord, which can be connected to a thermostat for precise temperature control

Key Technical Parameters (Conventional Specifications)

Rated Voltage: 12V/24V (low voltage), 220V/380V (industrial)

Power Density: Conventional 10-60W/m, customizable

Temperature Range: -60℃ ~ +200℃ (long-term operation)

Insulation Strength: ≥2000V/1min, no breakdown

Protection Grade: IP64 (moisture and dust proof)

Applicable Pipe Diameter: 6mm and above small pipelines, customizable large diameter version

Typical Application Scenarios

Pipeline Anti-freezing and Heat Preservation: Anti-freezing of outdoor water pipes, oil pipes, gas pipes, and laboratory gas circuit pipes in northern regions in winter

Process Temperature Maintenance: Constant temperature transportation of fluid/gas pipelines in chemical, semiconductor, and food industries

Special Pipeline Heating: Heating of thin corrugated pipes, thin metal pipes, rubber and plastic hoses, and laboratory micro-capillary pipelines

Anti-condensation Application: Anti-condensation protection of instrument pipelines and precision equipment pipelines

Other Scenarios: Pipeline heating in medical equipment, new energy pipelines, heat tracing of small tank bodies, etc.

Construction: Silicone heaters are made by sandwiching a resistive heating element (usually a nickel-chromium wire or etched foil) between layers of silicone rubber. The silicone rubber serves as both the insulating material and the outer protective layer.

Resistance Heating: When an electric current is applied to the resistive heating element within the silicone heater, it generates heat due to resistance. The resistance of the heating element causes it to heat up, transferring thermal energy to the surrounding silicone rubber.

Uniform Heat Distribution: Silicone rubber has excellent thermal conductivity properties, allowing the heat generated by the heating element to distribute evenly across the surface of the heater. This ensures uniform heating of the target object or surface.

Flexibility: One of the key advantages of silicone heaters is their flexibility. They can be manufactured in various shapes, sizes, and thicknesses to conform to the contours of complex surfaces or objects. This flexibility makes them suitable for applications where traditional rigid heaters are impractical.

Temperature Control: Temperature control of silicone heaters is typically achieved using a thermostat or temperature controller. These devices monitor the temperature of the heater and regulate the power supplied to maintain the desired temperature level.

Overall, silicone heaters are versatile, efficient, and reliable heating solutions suitable for a wide range of industrial and commercial applications.

silicone heater is a type of flexible heating element constructed using silicone rubber as the base material.

These heaters are commonly used in various applications such as medical devices, food processing

equipment, aerospace, automotive, and electronics.

Silicone heaters are known for their flexibility and durability, as well as their ability to withstand high temperatures and harsh environments.

They are typically used in applications where a flat or curved surface needs to be heated, such as in industrial pro

cesses, medical equipment, and aerospace applications.

One of the advantages of silicone heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.

Silicone heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.

Overall, silicone heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
