THIN, LIGHT & UNIFORM

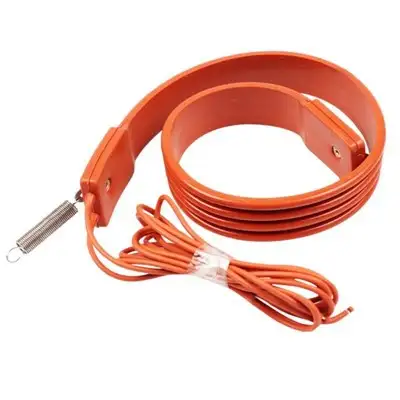

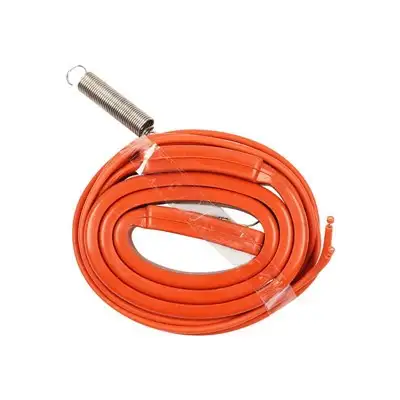

Belt Crankcase Heater
Belt Crankcase Heater by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Belt Crankcase Heater: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Belt Crankcase Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Belt Crankcase Heater lists length: 370mm-1000mm; wire length: 1m. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Belt Crankcase Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Belt Crankcase Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| length | 370mm-1000mm |
|---|---|

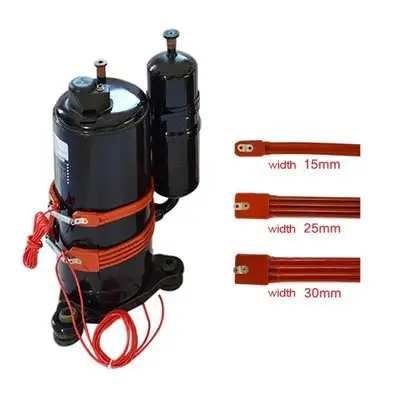

| width | 15mm 25mm 30mm |
| wire length | 1m |
| valtage | 220v |
| Temperature resistance | -30℃-±200℃ |
ARCHIVED PRODUCT INFORMATION
Description

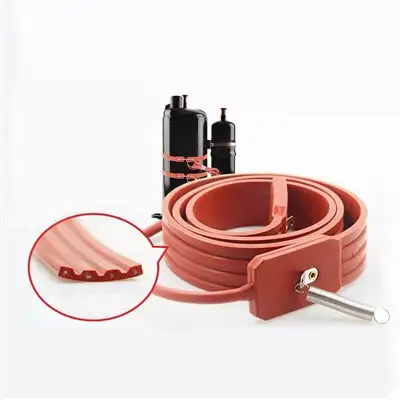

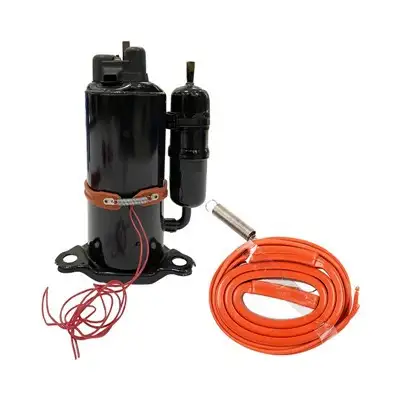

In severe cold conditions, the transmission oil in the air conditioner will condense, which will affect the normal start of the unit. The heating belt can heat the oil and help the unit start normally.
Protect the compressor from damage when it is turned on in the cold winter and extend its service life. (In the cold winter, the oil in the machine will condense and form blocks, which will cause hard friction when it is turned on, which will damage the compressor
| length | 370mm-1000mm |
| width | 15mm 25mm 30mm |
| wire length | 1m |
| valtage | 220v |
| Temperature resistance | -30℃-±200℃ |
