THIN, LIGHT & UNIFORM
Chicken Heating Water Pad
Chicken Heating Water Pad by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Chicken Heating Water Pad: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Chicken Heating Water Pad, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Chicken Heating Water Pad lists Power density: 0.10~1.50w/cm²; External insulation material: Silicone glass fiber; Voltage: 3.7-660V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Chicken Heating Water Pad, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Chicken Heating Water Pad depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Temperature range | -40.00~180.00°C |
|---|---|
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |
| Thickness | 1.5mm-3mm(With 3M) |
| Voltage | 3.7-660V |
ARCHIVED PRODUCT INFORMATION
Description
silicone heater is a flexible heating element made of a silicone rubber material that is designed to provide uniform
and efficient heat transfer in a wide range of applications. The heating element consists of a resistance wire, such
as nickel-chromium or copper-nickel, that is embedded in a silicone rubber substrate, which is then bonded to a thin
layer of fiberglass or other insulating material.
|
Temperature range |
-40.00~180.00°C |
|
Electric resistance precision |
±10%( bigger value selected) |
|
Power density |
0.10~1.50w/cm² |
|
Mechanical pressure |
100.00kg/cm² |
|
Minimum bending radius |
3.20mm |
|
External insulation material |
Silicone glass fiber |
|
Internal heating element |
Ni-Cr alloy |
|
Thickness |
1.5mm-3mm(With 3M) |
|
Voltage |
3.7-660V |

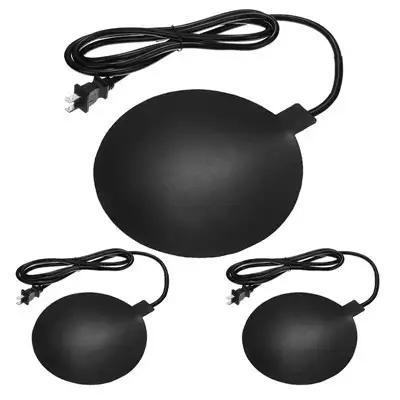

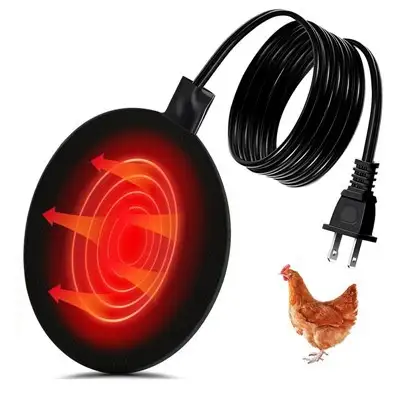

120V 35w Heated Pad: our chicken water heater works at 35W and uses 120V voltage to save energy and electricity; Each poultry water heater comes with a 1.2 m/ 47.24 inches power cord, sturdy and firm, has a long service life, can be applied for a long time

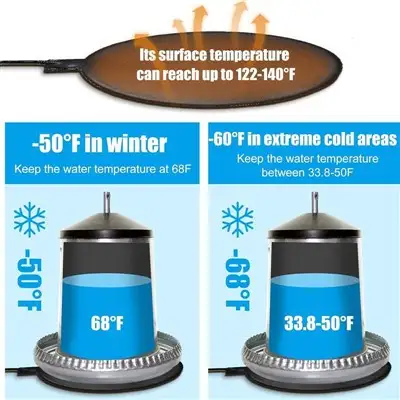

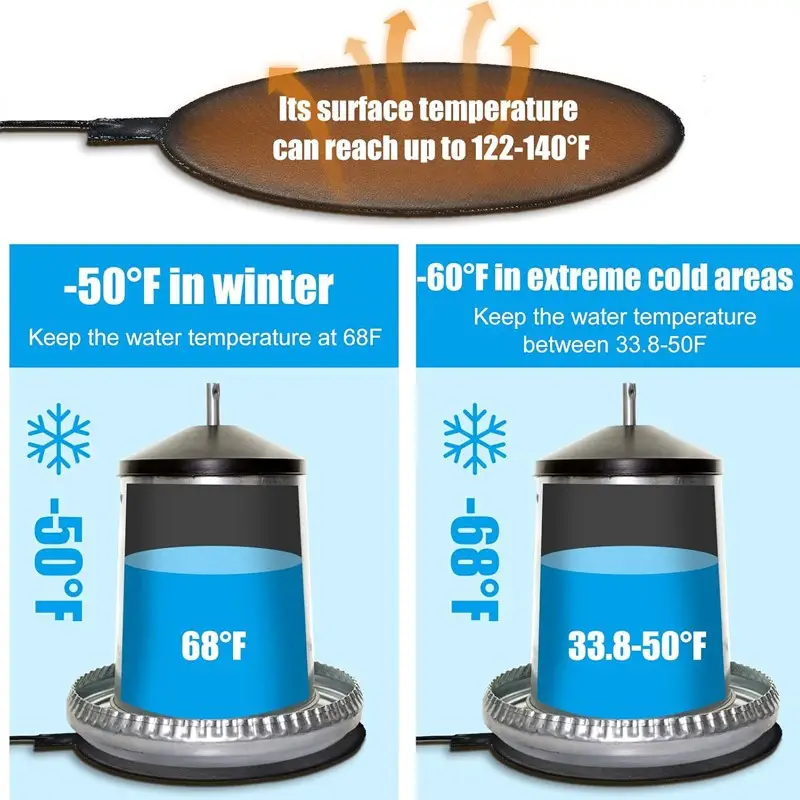

Novelty Heated Waterer: the chicken coop heater is safe, and the temperature of heated base can change with the temperature of outside, so remember to avoid water gets very hot, keep plugged into outlet that turns on when it is cold

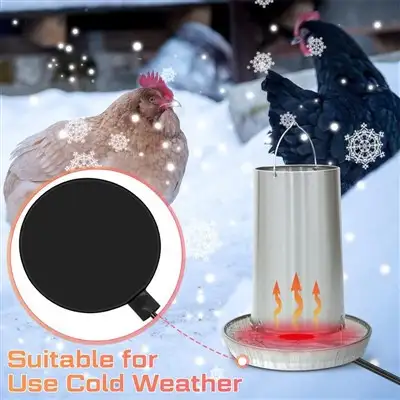

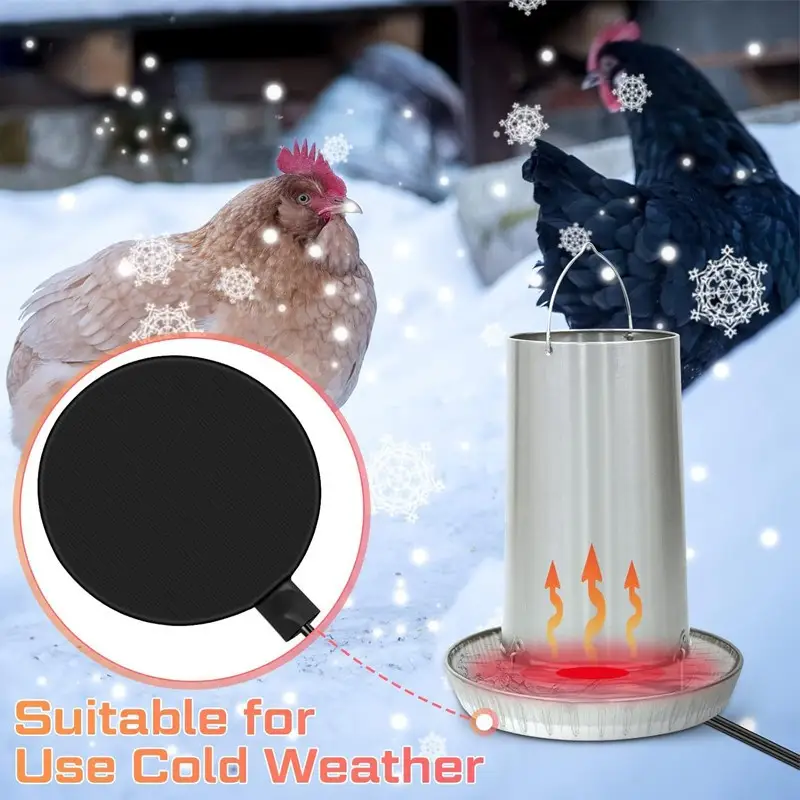

Winter Water Heated Pad: this heated poultry waterer can be widely applied in cold winter to provided your chickens warm water, to stop water from freezing and allow poultry to drink hot water

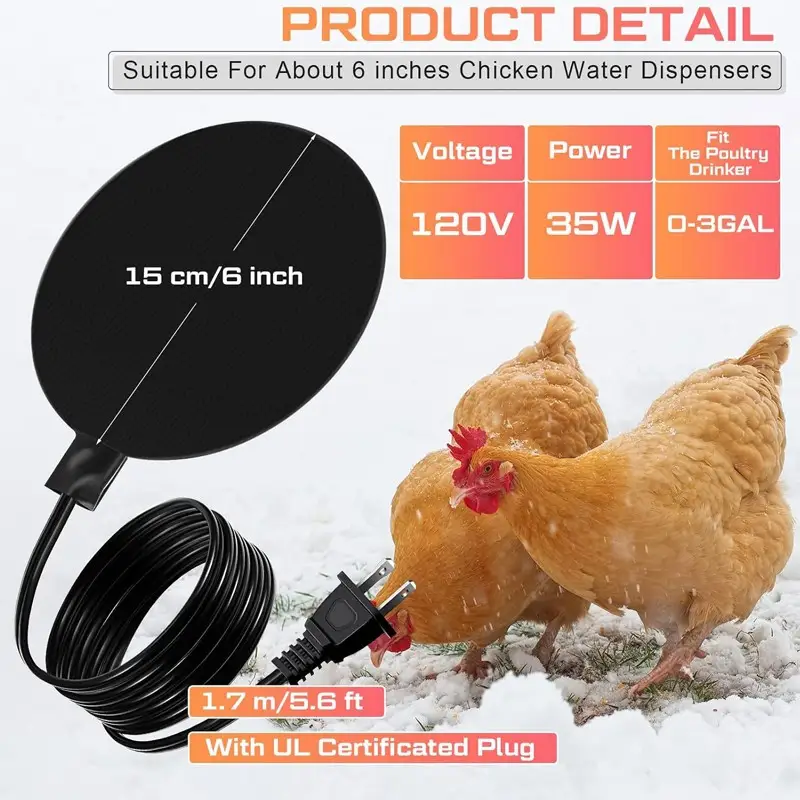

Heater Size: our chicken waterer heater measures approximately 15 cm/ 6 inches in diameter, with a 1.2 m/ 47.24 inches power cord, proper size makes it suitable for most metal buckets, also ideal for your chicken, ducks, or other small poultry
[Specification] 31.5 inches (Length) × 3.15 inches (Width), Voltage: 120 volts | Power: 40 watts | Temperature Range: 60°F-75°F. Starts operation when temp drops below 60°F (Fahrenheit), stops when it exceeds 75°F
[Wide Application] Works versatilely with any 2 to 5-gallon bucket of various shapes. The spring can stretch to around 3 inches, wraps completely around your chicken waterer, ensuring even heating and preventing freezing during winter.
[Using Method] Simply hook the spring end's clasp into the hole on the other side; for harsh weather, peel off the adhesive backing for a more secure hold. Just plug it in to power it up-no switch required, peace of mind all winter
[Energy Saving] This energy-efficient, cost-saving chicken water heating element uses only 40 watts, which is much less than most 150-watt alternatives, and it includes a flexible 6.5 foot cord, easy for outdoor placement and storage.

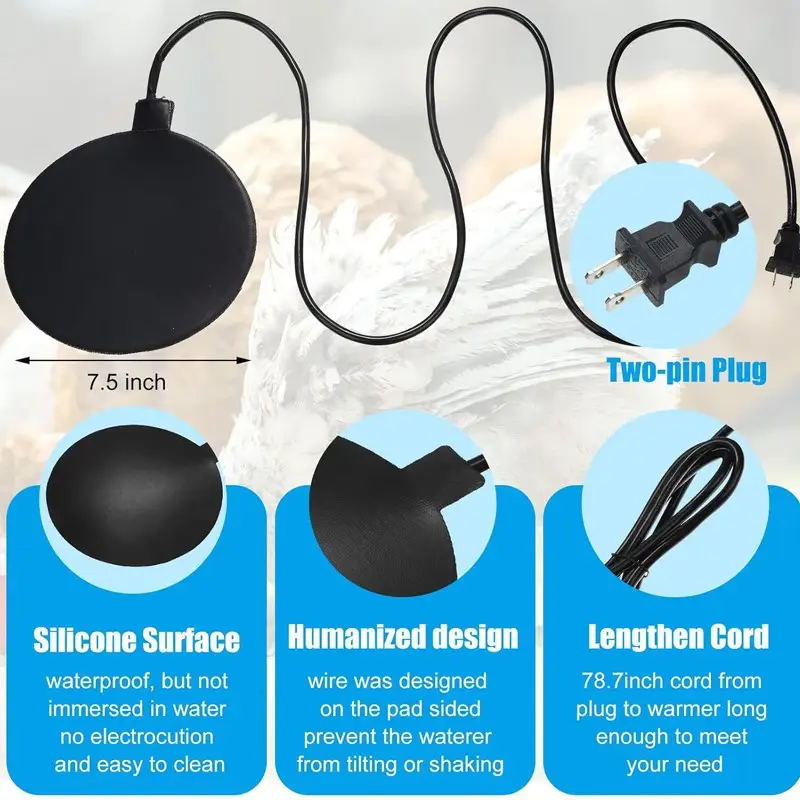

[Efficient & Safe] Crafted from high-quality, double-reinforced silicone rubber for durability and long-lasting performance. A grounded heating element ensures max safety during use, with greater energy efficiency to lower winter electricity bills.
,
Product Advantage
1.3M gum
2. The shape can be customized
3. Heating in the air, the highest temperature is 180℃
4. USB interface, 3.7V battery, thermocouple wire and thermistor can be added (PT100 NTC 10K 100K 3950%)
Construction: Silicone heaters are made by sandwiching a resistive heating element (usually a nickel-chromium wire or etched foil) between layers of silicone rubber. The silicone rubber serves as both the insulating material and the outer protective layer.
Resistance Heating: When an electric current is applied to the resistive heating element within the silicone heater, it generates heat due to resistance. The resistance of the heating element causes it to heat up, transferring thermal energy to the surrounding silicone rubber.
Uniform Heat Distribution: Silicone rubber has excellent thermal conductivity properties, allowing the heat generated by the heating element to distribute evenly across the surface of the heater. This ensures uniform heating of the target object or surface.
Flexibility: One of the key advantages of silicone heaters is their flexibility. They can be manufactured in various shapes, sizes, and thicknesses to conform to the contours of complex surfaces or objects. This flexibility makes them suitable for applications where traditional rigid heaters are impractical.
Temperature Control: Temperature control of silicone heaters is typically achieved using a thermostat or temperature controller. These devices monitor the temperature of the heater and regulate the power supplied to maintain the desired temperature level.
Overall, silicone heaters are versatile, efficient, and reliable heating solutions suitable for a wide range of industrial and commercial applications.
silicone heater is a type of flexible heating element constructed using silicone rubber as the base material.
These heaters are commonly used in various applications such as medical devices, food processing
equipment, aerospace, automotive, and electronics.
Silicone heaters are known for their flexibility and durability, as well as their ability to withstand high temperatures and harsh environments.
They are typically used in applications where a flat or curved surface needs to be heated, such as in industrial pro
cesses, medical equipment, and aerospace applications.
One of the advantages of silicone heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.
Silicone heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.
Overall, silicone heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: chicken heating water pad, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 200l Oil Drum Heater Blanket, 5v kapton polyimide film heater, electric flexible ceramic pad heaters, Flexible Kapton Film Polyimide Heater, Silicone Rubber Gas Tank Heater, Silicone Rubber Heating Strip
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
