THIN, LIGHT & UNIFORM
Glass Fiber Heating Cable
Glass Fiber Heating Cable by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Glass Fiber Heating Cable: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Glass Fiber Heating Cable, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Glass Fiber Heating Cable, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Glass Fiber Heating Cable depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Shape / Dimensions | Made to drawing |
| Material / Sensor | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

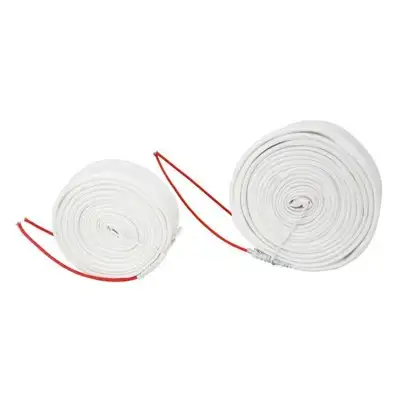

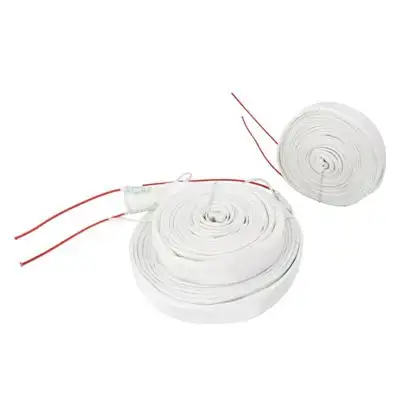

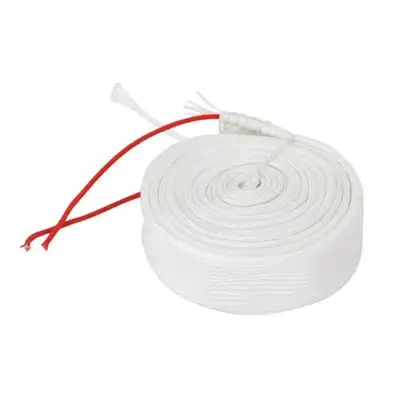

Glass Fiber Electric Heating Tape (High-Temperature Heating Cable)
This is a glass fiber braided electric heating tape, also known as a high-temperature heating cable, a flexible industrial heating element mainly used for heating and freeze protection of pipes, tanks, and other equipment.
.
1. Structure and Composition
Heating Wire: Typically made of nickel-chromium alloy (e.g., Cr20Ni80), ensuring stable resistance and uniform heat generation.
Insulation Layer: Woven fiberglass sheath, resistant to temperatures of 200°C–500°C, offering both flexibility and electrical insulation.
Terminals: Metal connectors or high-temperature-resistant wires for power connection.
Outer Coating (Optional): Some products feature silicone or PTFE coatings for enhanced waterproofing and corrosion resistance.
Structure & Key Features
Material & Structure

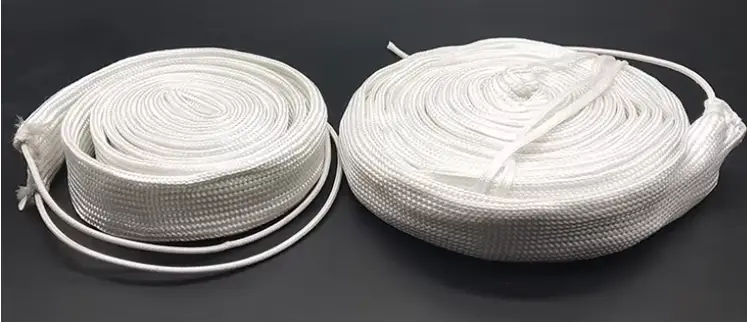

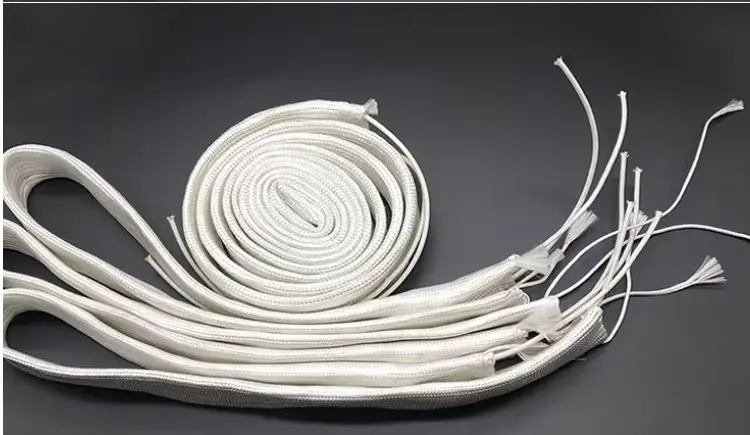

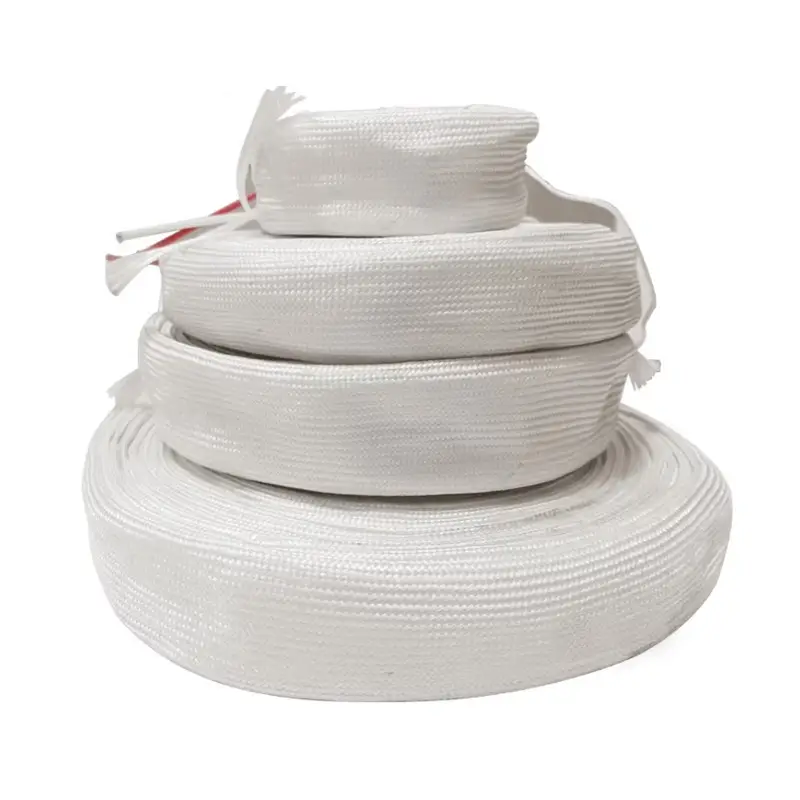

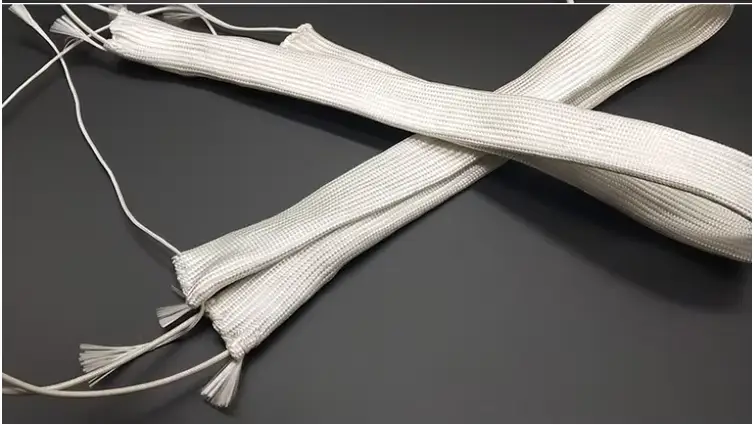

Outer layer: Alkali-free glass fiber braid, which is high-temperature resistant and has good insulation performance, with a maximum working temperature of about 250–350°C.
Inner core: Nickel-chromium alloy heating wire/tape, featuring high heating efficiency, oxidation resistance, and long service life, wrapped in a glass fiber insulation layer to ensure electrical safety.

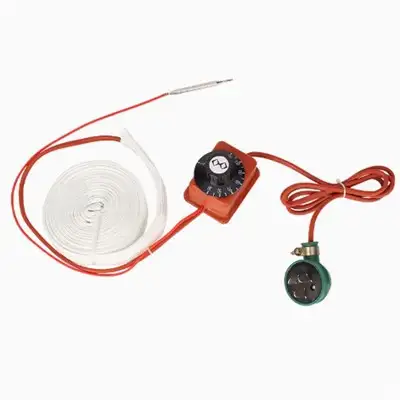

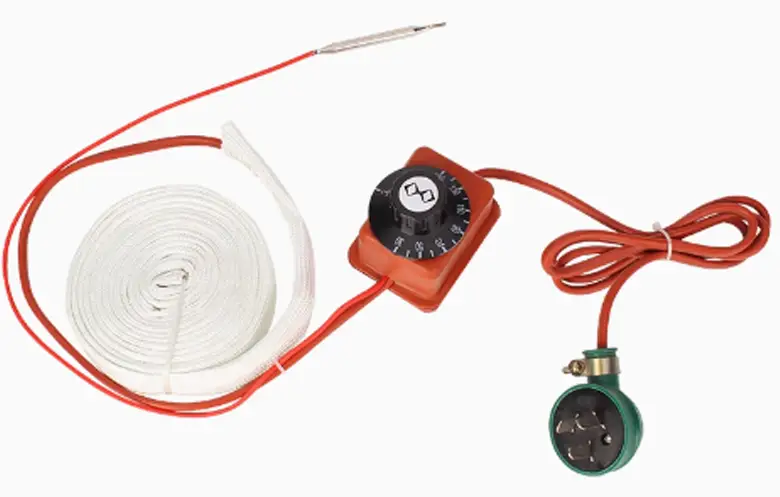

Terminals: Red high-temperature resistant wires for power connection; some models can be connected to a thermostat for precise temperature control.
Form: The whole is soft and bendable, can be directly wound on the surface of the heated object with good fit and uniform heating.
Performance Advantages
High temperature resistance: The glass fiber insulation layer can work in high-temperature environments for a long time, far exceeding the temperature limit of ordinary silicone rubber heating tapes.
Reliable insulation: Multi-layer glass fiber insulation with high electrical strength, not easy to break down, suitable for humid and dusty industrial environments.
Flexible installation: Can be cut and wound according to the shape of the heated object without customizing complex molds.
High thermal efficiency: Directly attached to the heating surface, with low heat transfer loss and fast heating speed.
Typical Application Scenarios
Industrial pipe freeze protection: Winter heating of petroleum, chemical, and water supply/drainage pipes to prevent medium freezing.
Tank/container heating: Insulation and heating of storage tanks and reaction kettles to maintain material fluidity.
Mechanical equipment preheating: Auxiliary heating of injection molding machines and extruder barrels, or preheating of large workpieces before welding.
Laboratory equipment: Temperature control of small experimental containers and analytical instruments.
⚠️ Selection & Usage Notes

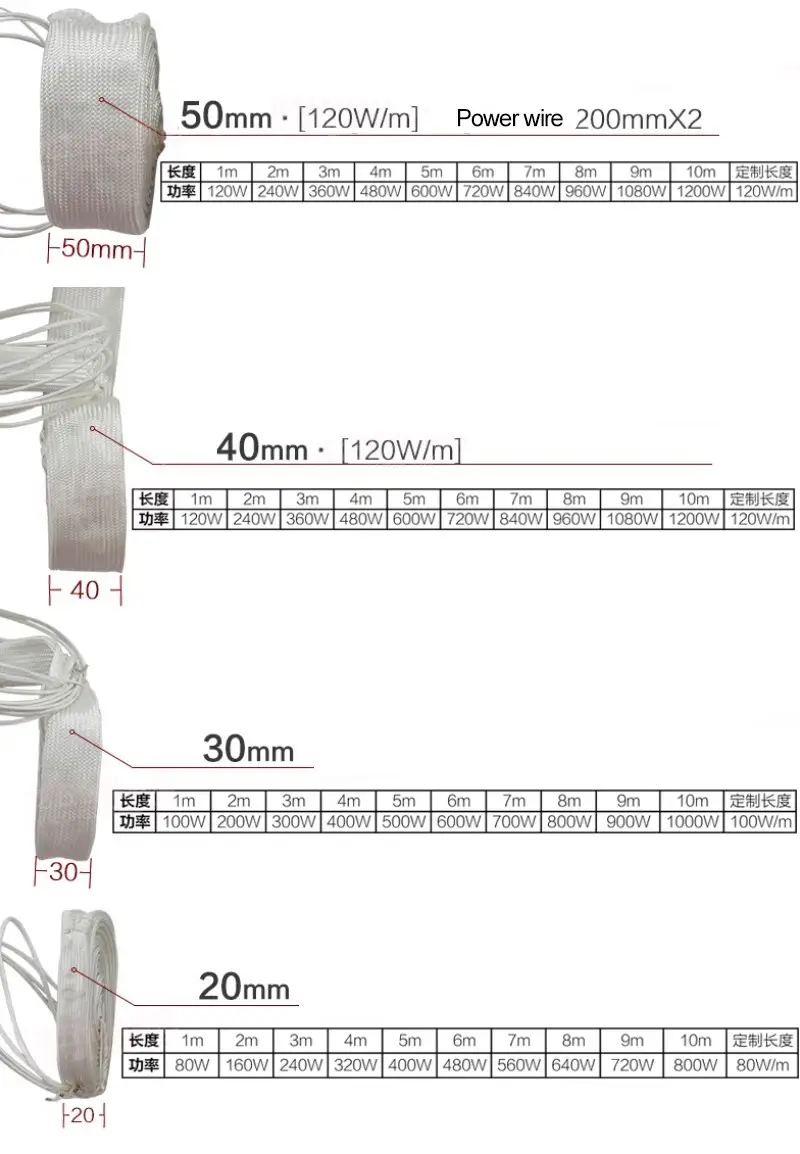

Parameter matching: Select appropriate specifications of voltage, power, and length according to the length of the heated object and insulation requirements.
Environmental restrictions: Not suitable for use in environments with explosive gases; relative humidity is recommended to be <80%.
Safety protection: Use with a thermostat and overheat protector to avoid dry burning or overheating damage; the outer layer must not be damaged to prevent electric leakage.
