THIN, LIGHT & UNIFORM
Kapton Heating Pad
Kapton Heating Pad by LICHENGDA. Thin-film bonding and temperature feedback, configuration details and made-to-drawing quotation for instruments, electronics and precision surface warming.
Product image gallery (7)
PRODUCT ENGINEERING
Thin-film bonding and temperature feedback
Kapton Heating Pad: A polyimide heater has low thermal mass and should be supported by a compatible substrate. Supply an outline drawing that identifies cutouts, lead exit and the area available for bonding.
Review adhesive temperature limits and uniform contact pressure. Place the sensor where the controlled surface temperature matters, and keep the circuit away from sharp folds or screw holes.
For Kapton Heating Pad, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Kapton Heating Pad lists Power density range: 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2); Voltage: 3.7v-220v; Material: polyimide; Power: 1-6.5w/cm2. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Kapton Heating Pad, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Instruments, electronics and precision surface warming. The final suitability of Kapton Heating Pad depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Power density range | 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|---|---|
| Thickness | 0.15-0.18mm |
| thermocouple | K or J type |
| Voltage | 3.7v-220v |
| Wattage | 3w-100kw |
| Material | polyimide |
| Resistance Precision | ±10%ak±0.5Ω |
| Power | 1-6.5w/cm2 |
ARCHIVED PRODUCT INFORMATION
Description

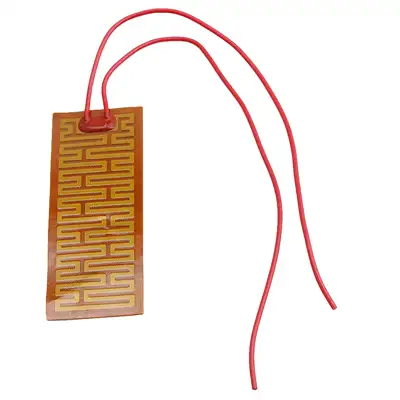

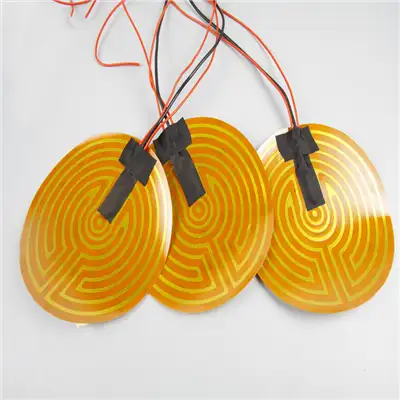

Polyimide heater (Kapton heater) is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters.It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -60 degree celsius to 250 degree Celsius.
|
Power density range |
0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|
Thickness |
0.15-0.18mm |
|
thermocouple |
K or J type |
|
Voltage |
3.7v-220v |
|
Wattage |
3w-100kw |
|
Material |
polyimide |
|
Resistance Precision |
±10%ak±0.5Ω |
|
Power |
1-6.5w/cm2 |
Technical Parameter
1:Heating core: Alloy
2:Thickness: 0.15-0.18
3:Operating temperature:-190 ~ 205℃
4:Voltage: 3.7-220V
5:Power: Designed according to environment
6:Power deviation: ± 5℃
7:Tensile strength of lead:>5N
Polyimide heaters are known for their flexibility, durability, and resistance to high temperatures and harsh environments. They are typically used in applications where a thin and flexible heating element is required, such as in medical equipment, aerospace applications, and electronics.
One of the advantages of polyimide heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.
Polyimide heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.
Overall, polyimide heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
