THIN, LIGHT & UNIFORM
Silicon Drum Heater
Silicon Drum Heater by LICHENGDA. Container coverage and controlled warming, configuration details and made-to-drawing quotation for drums, buckets and viscosity-control applications.
Product image gallery (7)
PRODUCT ENGINEERING
Container coverage and controlled warming
Silicon Drum Heater: Confirm the drum or bucket diameter, material and filled volume. Coverage and insulation should be selected around the required heat-up time and the material’s permitted storage temperature.
Locate temperature feedback to detect hot spots at the container wall. Review minimum fill level, restraint method and safe removal before choosing a thermostat or operating setpoint.
For Silicon Drum Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Silicon Drum Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Drums, buckets and viscosity-control applications. The final suitability of Silicon Drum Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 250*1740 | 2kw 3kw |
|---|---|
| 200*860 | 0.8kw |
| 200*860 | 0.8kw |
| 250*1200 (100L) | 1.5kw |
| 250*1520 (150L) | 2kw |
| 880*1780 | 6kw |
ARCHIVED PRODUCT INFORMATION
Description

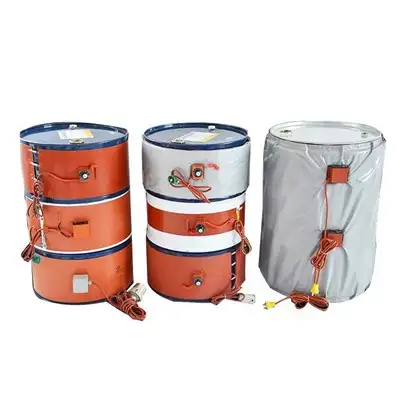

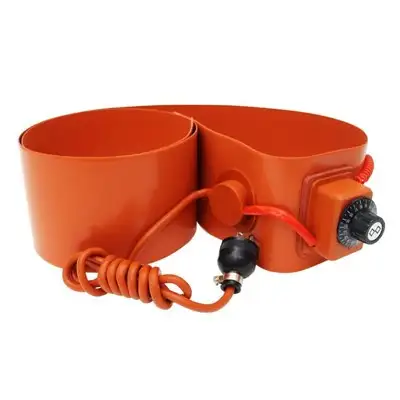

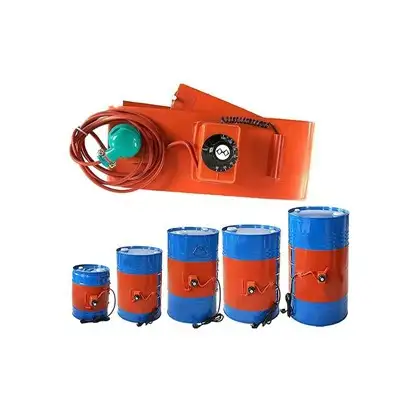

55 Gal Drum Heater Pad:Heating pad width of 5 inches. Heating effect and heating area far beyond the 3-inch and 4-inch size.
Powerful Function: Raise the temperature of 55-gallon drums with a heating pad. Keeps the material inside the drum at the optimum temperature at all times. For long-term storage.

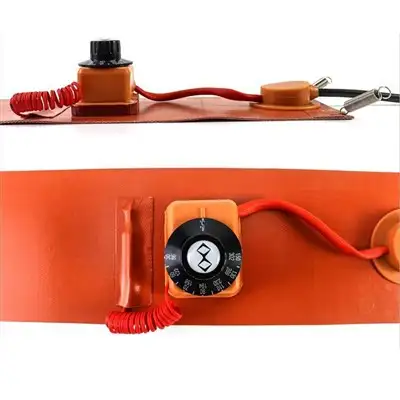

Easy Operation: The heater temperature is controlled from 30 to 150°C (86°F to 302°F) by a thermostat. Consumption decreases as the drum reaches the desired temperature, thus keeping the temperature controlled at the desired temperature (±10°F / 5°C). Please note that the heater temperature should not be higher than 130°C for long periods of time.
High Quality: The quality of the heater is far superior to other brands. It can work at high intensity and is fire, oil and acid resistant. This is because the outer layer is made of high temperature resistant silicone rubber and flame retardant, alkali-free fiberglass cloth laminated through a special process to form an insulating layer.
|
Size (mm) |
Power |
Temperature control |
|
|
In stock |
125*1740 |
1kw 2kw |

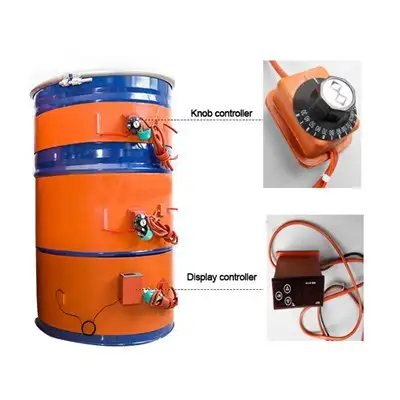

Knob control: (Error range: ± 5℃) |
|
250*1740 |
2kw 3kw |
||
|
Customized |
250*1840 (200L) |
2kw |
|
|
200*860 |
0.8kw |
||
|
200*860 |
0.8kw |
||
|
250*1200 (100L) |
1.5kw |
||
|
250*1520 (150L) |
2kw |
||
|
880*1780 |
6kw |
Products Advantage
1: Heating, insulation, frost and moisture
2: Strong Thermal conductivity
3: Uniform temperature, safe and durable useing
4: Accurate temperature control, good fixing effect of elastic connection
Product Properties
1. Temperature range: 0~250.00°C:
2: Thickness: 1.5mm-1.8mm
3. Electric resistance precision: ±10% (bigger value selected)
4. Power density: 0.10~1.50w/cm²
5. Mechanical pressure: 100.00kg/cm²
6. Minimum bending radius: 3.20mm
Matters Needing Attention
Inspect vessel to be heated for any sharp edges, rust, oil, etc. The power connections must be adequately rated to electrically support the voltage and amperage of the heater.
Select a suitable location to install the heater. The heater should be located below the lowest expected content level (typically the bottom 1/3) of the vessel. Do not overlap the heater on itself or another heater. Do not twist the heater or cover any protrusions that may cause an air gap beneath the heater.
Before connecting the heater to an electrical source, turn the adjustable dial on the heater's control box.
Do not wrap the heater over itself.
If anything unusual happens, disconnect from power source and clean after heater is allowed to cool.
Never operate a heater without an appropriate heat sink (device being heated is considered a heat sink)
Do not operate heater above rated temperature value.
Fasten heater to device using approved methods only.
Do not repair damaged or faulty heaters.
Do not crush or apply severe physical stress on heater or cord assembly.
Disconnect heater when not in use.
Use specified sized heater with same sized drum. Do not use for other applications.
Failure to observe these warnings may result in personal injury or damage to the heater.
Application
1. Industrial equipment, pipelines, barrels, tanks, etc.
2. Outdoors telecommunication equipment
3. Medical equipment and devices
4. Outdoors electronic devices
5.Thermal imaging of imaging equipment
6. Case protection under cold and moist environment
7. Industrial ovens and thermal processing equipment
8. Ventilator supports
9. Laminating equipment
10. Vessels
