THIN, LIGHT & UNIFORM
Silicone Battery Heating Pad
Silicone Battery Heating Pad by LICHENGDA. Battery interface and sensor placement, configuration details and made-to-drawing quotation for battery packs and cold-weather equipment.
Product image gallery (7)
PRODUCT ENGINEERING
Battery interface and sensor placement
Silicone Battery Heating Pad: Use the battery maker’s permitted temperature limits and pack drawing to define the heater outline. Identify electrically insulated contact surfaces, cable routes and areas that must remain unheated.
Coordinate heater control with the battery management system. Review local sensor placement and fault protection before using surface power density as a design target.
For Silicone Battery Heating Pad, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Silicone Battery Heating Pad lists Power density: 0.10~1.50w/cm²; External insulation material: Silicone glass fiber; Voltage: 3.7-660V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Silicone Battery Heating Pad, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration

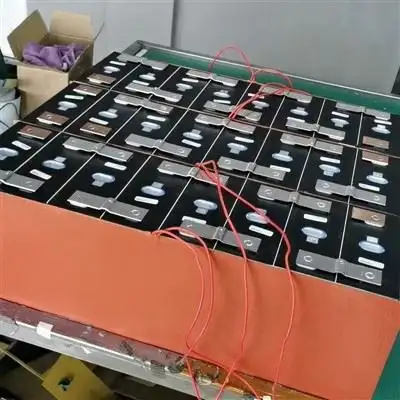

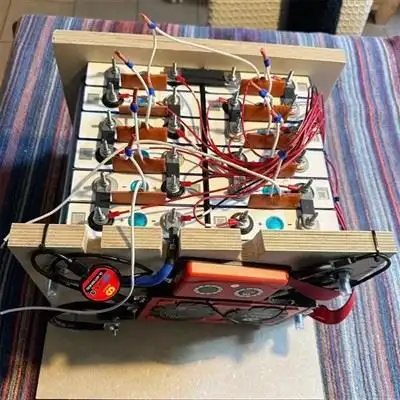

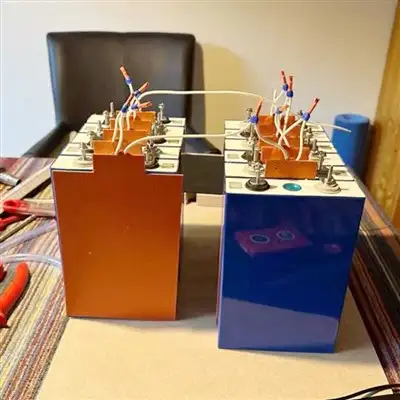

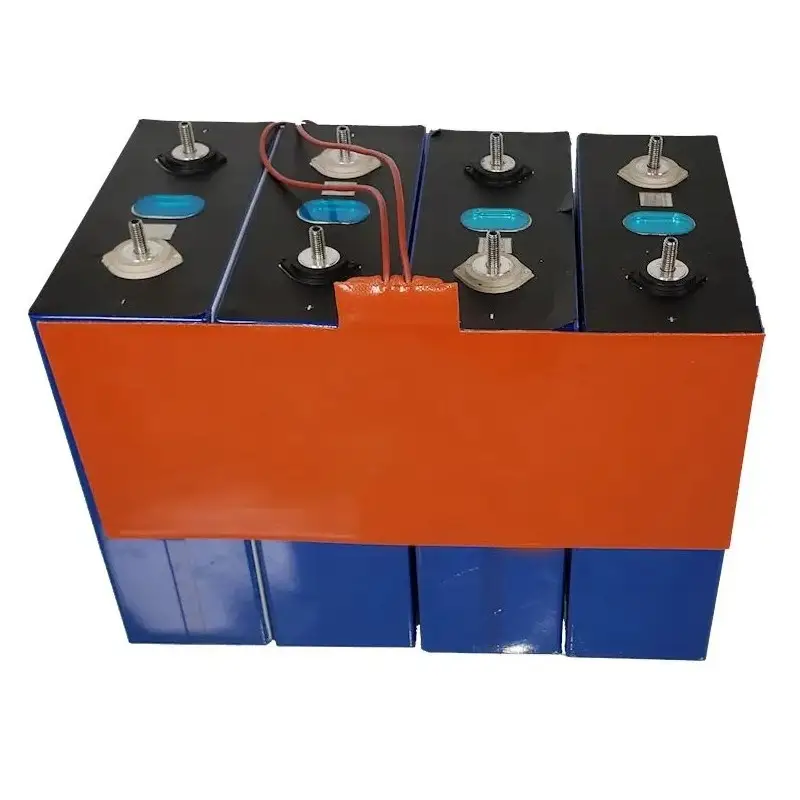

Battery packs and cold-weather equipment. The final suitability of Silicone Battery Heating Pad depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Temperature range | -40.00~180.00°C |
|---|---|
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |
| Thickness | 1.5mm-3mm(With 3M) |
| Voltage | 3.7-660V |
ARCHIVED PRODUCT INFORMATION
Description
silicone heater is a flexible heating element made of a silicone rubber material that is designed to provide uniform
and efficient heat transfer in a wide range of applications. The heating element consists of a resistance wire, such
as nickel-chromium or copper-nickel, that is embedded in a silicone rubber substrate, which is then bonded to a thin
layer of fiberglass or other insulating material.
|
Temperature range |
-40.00~180.00°C |
|
Electric resistance precision |
±10%( bigger value selected) |
|
Power density |
0.10~1.50w/cm² |
|
Mechanical pressure |
100.00kg/cm² |
|
Minimum bending radius |
3.20mm |
|
External insulation material |
Silicone glass fiber |
|
Internal heating element |
Ni-Cr alloy |
|
Thickness |
1.5mm-3mm(With 3M) |
|
Voltage |
3.7-660V |
Imported silicone heating temperature of 200 ℃, more durable, and longer service life;
Domestic silicone heating temperature of 180 ℃, economical and cost-effective;
,
Product Advantage
1.3M gum
2. The shape can be customized
3. Heating in the air, the highest temperature is 180℃
4. USB interface, 3.7V battery, thermocouple wire and thermistor can be added (PT100 NTC 10K 100K 3950%)
Specifications:
1. Length: 15-10000mm, width: 15-1200mm; Lead length: default 1000mm or custom
2. Circular, irregular, and special shapes can be customized.
3. The default does not include 3M adhesive backing
4. Voltage: 5V/12V/24V/36V/48V/110V/220V/380V, etc., can be customized.
5. Power: 0.01-2W/cm can be customized, conventional 0.4W/cm,this power density temperature
can reach around 50 ℃, with low temperature for low power and high temperature for high power
Digital temperature control: Temperature control range -45 ℃~220 ℃. It can maintain a constant
temperature or a temperature range, and the temperature can be adjusted
Knob temperature control: commonly used temperature ranges are 0-40 ° C, 0-60 ° C,
0-120 ° C, 30-110 ° C, 30-150 ° C, 50-200 ° C etc. Temperature adjustment can be installed at
any position on the heating plate, with average temperature control accuracy, suitable for
insulation and antifreeze industries that do not require high temperature control accuracy.
Constant temperature control: also known as temperature switch/overheat protector. Generally,
there is a temperature range of 5 ℃, with commonly used temperatures including 5 ℃, 10 ℃, 20 ℃,
30 ℃, 40 ℃, 45 ℃, 50 ℃... 180 ℃, etc. The temperature can be adjusted but not adjustable. It can
be installed at any position on the heating plate and cannot be externally connected. The
temperature control accuracy is average, suitable for insulation and antifreeze industries that do not
require high temperature control accuracy.
Construction: Silicone heaters are made by sandwiching a resistive heating element (usually a nickel-chromium wire or etched foil) between layers of silicone rubber. The silicone rubber serves as both the insulating material and the outer protective layer.
Resistance Heating: When an electric current is applied to the resistive heating element within the silicone heater, it generates heat due to resistance. The resistance of the heating element causes it to heat up, transferring thermal energy to the surrounding silicone rubber.
Uniform Heat Distribution: Silicone rubber has excellent thermal conductivity properties, allowing the heat generated by the heating element to distribute evenly across the surface of the heater. This ensures uniform heating of the target object or surface.
Flexibility: One of the key advantages of silicone heaters is their flexibility. They can be manufactured in various shapes, sizes, and thicknesses to conform to the contours of complex surfaces or objects. This flexibility makes them suitable for applications where traditional rigid heaters are impractical.
Temperature Control: Temperature control of silicone heaters is typically achieved using a thermostat or temperature controller. These devices monitor the temperature of the heater and regulate the power supplied to maintain the desired temperature level.
Overall, silicone heaters are versatile, efficient, and reliable heating solutions suitable for a wide range of industrial and commercial applications.
silicone heater is a type of flexible heating element constructed using silicone rubber as the base material.
These heaters are commonly used in various applications such as medical devices, food processing
equipment, aerospace, automotive, and electronics.
Silicone heaters are known for their flexibility and durability, as well as their ability to withstand high temperatures and harsh environments.
They are typically used in applications where a flat or curved surface needs to be heated, such as in industrial pro
cesses, medical equipment, and aerospace applications.
One of the advantages of silicone heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.
Silicone heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.
Overall, silicone heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
