THIN, LIGHT & UNIFORM
Silicone Heating Blanket
Silicone Heating Blanket by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Silicone Heating Blanket: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Silicone Heating Blanket, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Silicone Heating Blanket, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Silicone Heating Blanket depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 250*1740 | 2kw 3kw |
|---|---|
| 200*860 | 0.8kw |
| 200*860 | 0.8kw |
| 250*1200 (100L) | 1.5kw |
| 250*1520 (150L) | 2kw |
| 880*1780 | 6kw |
ARCHIVED PRODUCT INFORMATION
Description

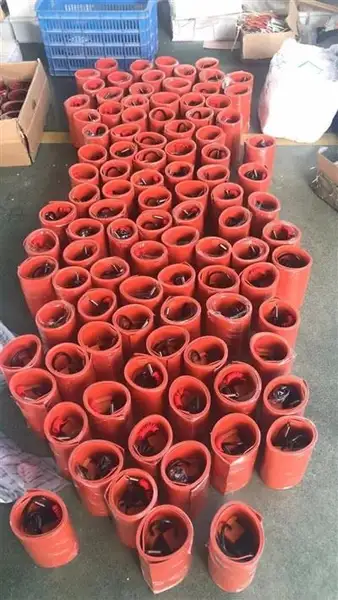

Oil Drum Heating

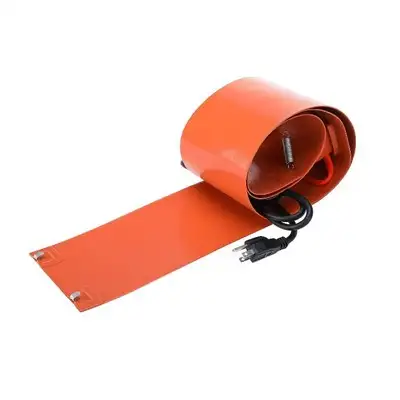

Drum Heating Belt is extremely thin, light and flexible. And the heater can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Glass fiber-reinforced silicon rubber can ensure the heater to be stable in dimension, without losing flexibility.
|
Size (mm) |
Power |
Temperature control |
|
|
In stock |
125*1740 |
1kw 2kw |
Knob control: (Error range: ± 5℃) |
|
250*1740 |
2kw 3kw |
||
|
Customized |
250*1840 (200L) |
2kw |
|
|
200*860 |
0.8kw |
||
|
200*860 |
0.8kw |
||
|
250*1200 (100L) |
1.5kw |
||
|
250*1520 (150L) |
2kw |
||
|
880*1780 |
6kw |
Product Properties
1. Temperature range: 0~250.00°C:
2: Thickness: 1.5mm-1.8mm
3. Electric resistance precision: ±10% (bigger value selected)
4. Power density: 0.10~1.50w/cm²
5. Mechanical pressure: 100.00kg/cm²
6. Minimum bending radius: 3.20mm
Products Advantage
1: Heating, insulation, frost and moisture
2: Strong Thermal conductivity
3: Uniform temperature, safe and durable useing
4: Accurate temperature control, good fixing effect of elastic connection
Application
1. Industrial equipment, pipelines, barrels, tanks, etc.
2. Outdoors telecommunication equipment
3. Medical equipment and devices
4. Outdoors electronic devices
5.Thermal imaging of imaging equipment
6. Case protection under cold and moist environment
7. Industrial ovens and thermal processing equipment
8. Ventilator supports
9. Laminating equipment
10. Vessels
