THIN, LIGHT & UNIFORM
Single Phase Solid State Relay
Single Phase Solid State Relay by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Single Phase Solid State Relay: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Single Phase Solid State Relay, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Single Phase Solid State Relay lists Load Voltage: 5-220VDC(Basic model); Control Voltage: 3-32VDC; On Voltage: ≤1.6V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Single Phase Solid State Relay, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Single Phase Solid State Relay depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

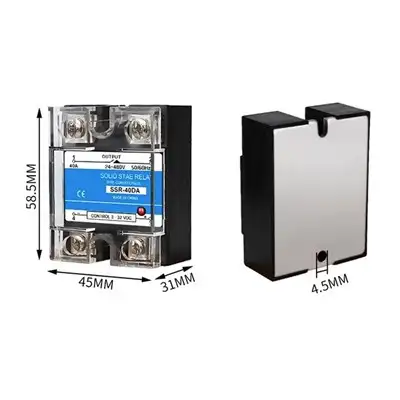

| Outine Dimension(mm) | 45Lx31Wx58.5mm H |
|---|---|
| output current | 10-120A |
| Load Voltage | 5-220VDC(Basic model) |
| Control Voltage | 3-32VDC |
| Control Current | 5-20mA |
| On Voltage | ≤1.6V |
| Off leakage Current | ≤5mA |
| On-off time | ≤10mS |
| Ambient Temperature | -30~+70°C |
ARCHIVED PRODUCT INFORMATION
Description
Industrial automation installment, AC motor control, Intermediate relay,solenoid valve control, Numerical control machinery,external guidnance system,computer periphery connection, Illumination,stage lighting control, Electric stove,heating,warm control, street light,signal light,traffic light,Color photo enlargement, film processing equipment,injection machinery,automatic fire control and security system,etc.
| Outine Dimension(mm) | 45Lx31Wx58.5mm H | |||
| output current | 10-120A | |||
| Load Voltage | 5-220VDC(Basic model) | |||
| Control Voltage | 3-32VDC | |||
| Control Current | 5-20mA | |||
| On Voltage | ≤1.6V | |||
| Off leakage Current | ≤5mA | |||
| On-off time | ≤10mS | |||
| Ambient Temperature | -30~+70°C | |||
Solid state relays must be equipped with a heat sink when the high voltage of the load current exceeds
10A due to their high heat generation. Apply thermal conductive silicone grease of 60A or more between
the bottom of the solid state relay and the heat sink, and add a fan for strong cooling
Product Advantages
1: Brass wiring contacts, low resistance, strong conductivity, and sufficient current

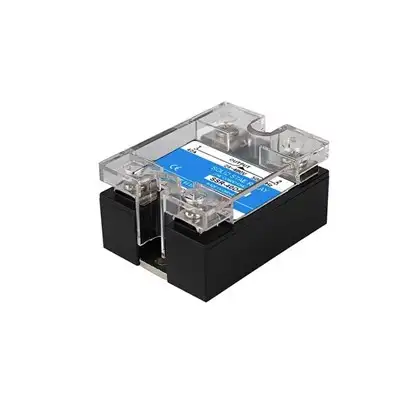

2: High temperature resistant and flame-retardant shell, transparent dust cover, dustproof and beautiful
3: Diode indicator light, working status visualization
4: Cooling bottom plate, quickly dissipates heat for relays, no worries about long-term use
Product Advantages
1: The core components of solid state relay have quick switching speed and high withstand voltage
2: The high-strength screw is made of stainless steel, which is not easy to break and slip.
The column is made of red copper
3: Strong shell, made of excellent high temperature flame retardant materials, shiny and durable
4: The zinc low plate has obvious heat dissipation effect, and it is not easy to heat up after long use
Company Profilm
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: single phase solid state relay, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, flexible silicone rubber heater with controler, Gas Cylinder Silicone Heater, 12v pad flexible silicone heater heating, 220v flexible ceramic heating pad, Silicone Rubber Drum Heater Belt, Silicone Rubber Gas Cylinder Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
