THIN, LIGHT & UNIFORM
Valve Insulation Cover
Valve Insulation Cover by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Valve Insulation Cover: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Valve Insulation Cover, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Valve Insulation Cover lists voltage: 220v 380v or customized; Material: fiberglass. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Valve Insulation Cover, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Valve Insulation Cover depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Type | Insulation Jacket / Insulation sleeve / Insulation cover |
|---|---|
| voltage | 220v 380v or customized |
| Thickness | 15 -150MM |
| Flame retardant performance | Non-combustible(Fire resistance Grade A) |
| Density | 110-220Kg/m |
| application | Barrel heater on injection molding machine, extruder etc. Molds and dies Flange, Pipe, Valve Exhaust Elbow Heater exchanger Exhaust pipe of engine |
| Material | fiberglass |
ARCHIVED PRODUCT INFORMATION
Description

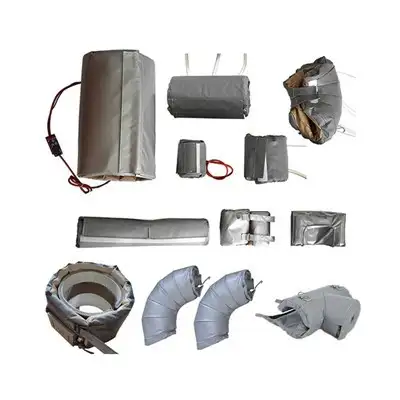

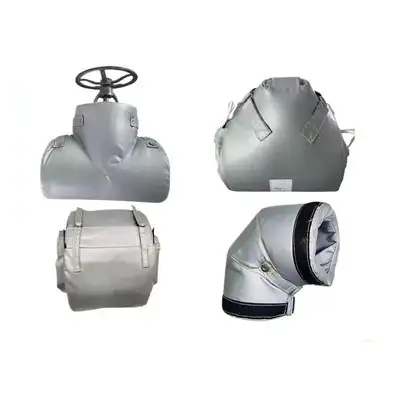

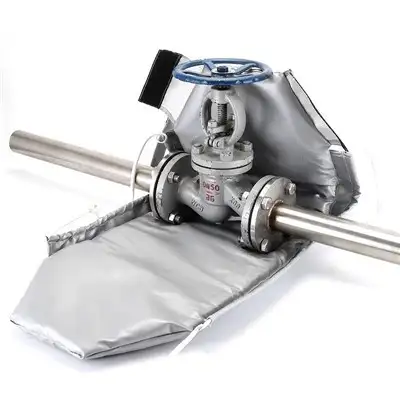

Introduction of Thermal Blanket Insulation For Pipes, Valves, Boilers
Thermal Blanket Insulation For Pipes, Valves, Boilers has three to six layers, liner is high silica glass fiber cloth, stainless steel braided cloth, ceramic fiber cloth, glass fiber cloth or high-SI aluminum cloth, and insulating layer is ceramic or glass fiber or aerogel blanket, and the protection layer is silicone coated glass fiber cloth, teflon cloth or stainless steel braided cloth, which is water, oil, acid and alkali proof. The thickness is 5-150mm, which could be customized, temperature resistance could be as high as 1000 cent degree. Normal lifetime is more than 5 years. And the energy saving rate is 25% to 40%.
|
Type |
Insulation Jacket / Insulation sleeve / Insulation cover |
| voltage | 220v 380v or customized |
| Thickness |
15 -150MM |
| Flame retardant performance | Non-combustible(Fire resistance Grade A) |
| Density | 110-220Kg/m |
| application |
Barrel heater on injection molding machine, extruder etc. Molds and dies Flange, Pipe, Valve Exhaust Elbow Heater exchanger Exhaust pipe of engine |
| Material | fiberglass |
Advantage of Thermal Blanket Insulation For Pipes, Valves, Boilers
Minimize heat loss by 20%-40%
The surface temperature can be lowered to 40ºC, and thus safe to touch by hands
We support customized design to ensure 100% fit your application
Easy to install by buckles
Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.
Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.

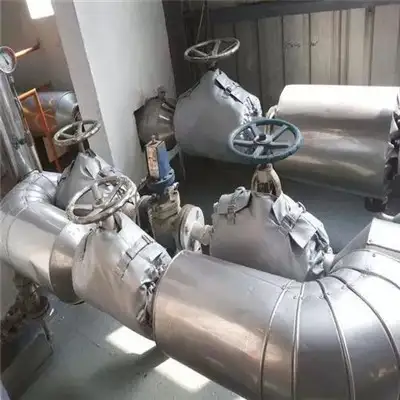

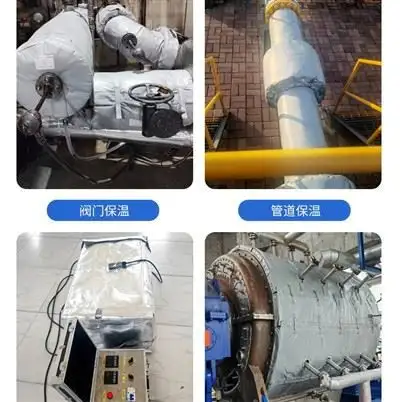

Application of Thermal Blanket Insulation For Pipes, Valves, Boilers
Barrel heater on injection molding machine, extruder etc.
Molds and dies
Flange, Pipe, Valve
Exhaust Elbow
Heater exchanger
Exhaust pipe of engine
Any other applications needed to reduce heat loss
