DIRECT LIQUID HEATING

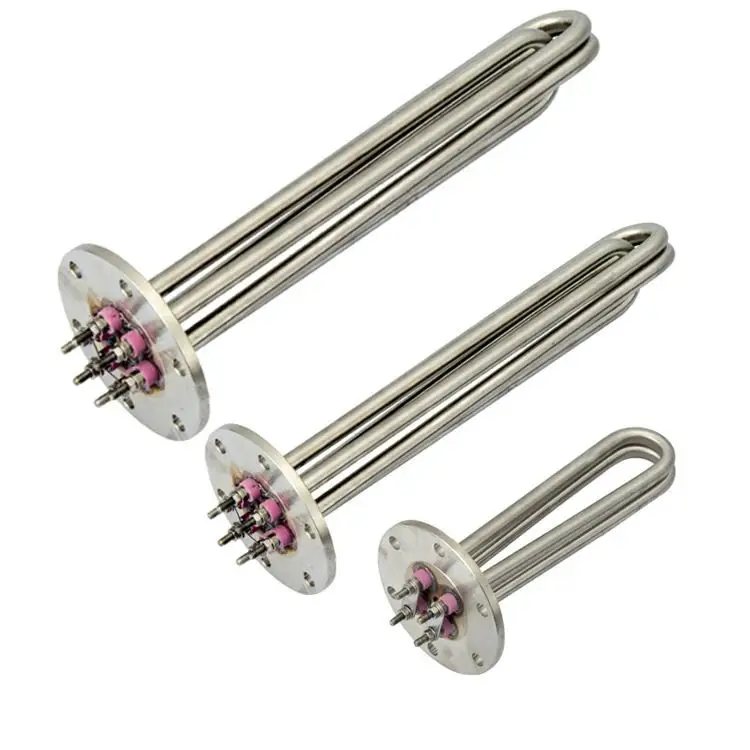

electric tubular Water flange immersion heater
electric tubular Water flange immersion heater by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (6)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
electric tubular Water flange immersion heater: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For electric tubular Water flange immersion heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For electric tubular Water flange immersion heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of electric tubular Water flange immersion heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Power | Confirmed for the application |
|---|---|
| Thread / Flange | Made to drawing |
| Liquid / Sheath | Selected for compatibility |
ARCHIVED PRODUCT INFORMATION
Description
| flange heating pipe | |||
| Wattage | Length | Wattage | Length |
| 2kw | 230mm | 12kw | 500mm |
| 3kw | 230mm | 15kw | 580mm |
| 6kw | 340mm | 18kw | 660mm |
| 9kw | 420mm | customized | |
Advantages
1. The surface power is large, which is 2~4 times of the surface load of air heating.
2. Highly intensive and compact structure. Because the whole is short and dense, it has good stability and no support is needed for installation.

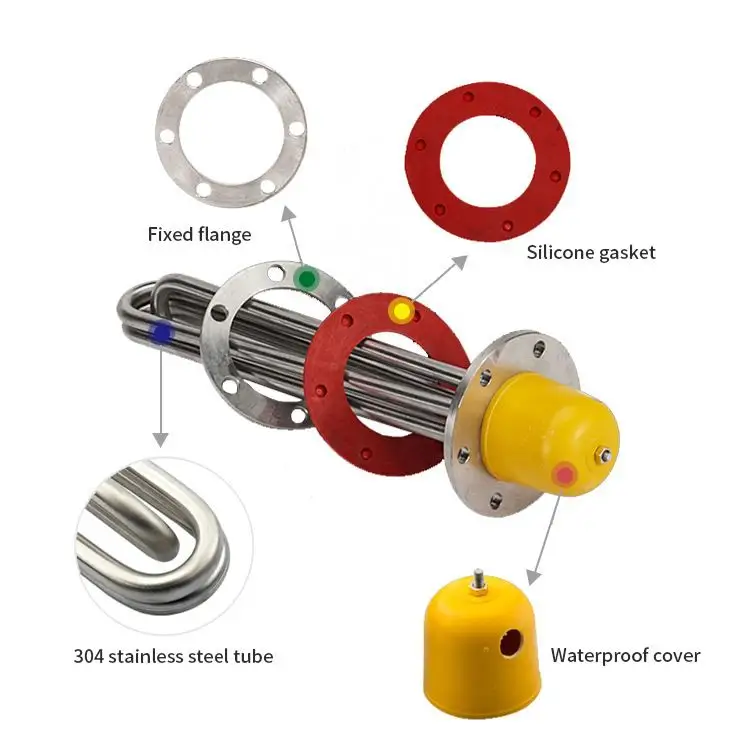

3:For the first installation, it is recommended to buy it together with the Female Flange
Advantages
1. The surface power is large, which is 2~4 times of the surface load of air heating.
2. Highly intensive and compact structure. Because the whole is short and dense, it has good stability
and no support is needed for installation.
3:For the first installation, it is recommended to buy it together with the Female Flange
| Explosion-proof flange heating pipe | |||
| Watt | Size | Watt | Size |
| 10kw | Φ108*1000mm | 100kw-120kw | Φ325*1500mm |
| 20kw | Φ133*1200mm | 140kw-160kw | Φ325*1800mm |
| 30kw | Φ159*1200mm | 180-200kw | Φ377*2000mm |
| 40-50kw | Φ219*1400mm | 240-270kw | Φ377*2500mm |
| 60kw | Φ219*1500mm | 300-360kw,400-450kw | Φ426*2500mm |
| 70-90kw | Φ273*1500mm | customized | |
Appliction:professional selection,stable performance and more accurate,suitable for chemical industry
aquaculture ,food ,packing ,medical electronis and other industried with temperature control equipment
Hot Tags: electric tubular Water flange immersion heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Water Immersion Copper Tubular Heater, Tubular Air Finned Heater Element, Water Immersion Heater Element, Mosquito Coil Heating Tube Element, Teflon Water Industrial Immersion Heater, Electric Industrial Toaster Oven Heating Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
