DIRECT LIQUID HEATING

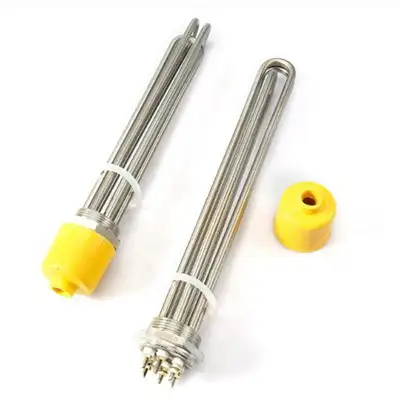

Tubular Immersion Water Heater
Tubular Immersion Water Heater by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (3)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Tubular Immersion Water Heater: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Tubular Immersion Water Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Tubular Immersion Water Heater lists Power: 3KW, 4.5KW, 6KW, 9KW, 12KW other customized; Voltage: 220V, 230V, 240V, 380V, 400V other customized; Reisistance wire element: Ni-Cr/ FeCr; Length toleranc: +/1.5%. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Tubular Immersion Water Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Tubular Immersion Water Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Power | 3KW, 4.5KW, 6KW, 9KW, 12KW other customized |
|---|---|
| Voltage | 220V, 230V, 240V, 380V, 400V other customized |
| Reisistance wire element | Ni-Cr/ FeCr |
| Length toleranc | +/1.5% |
| Power tolerance | +5%-10% |
ARCHIVED PRODUCT INFORMATION
Description
Screw Plug Immersion Heaters are screwed directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling. Sizes of screw plug heaters are available with 1", 1-1/4", 1-1/2", 2", 2-1/2" pipe threads. A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials, terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.
|
Sheath Material |
Material Max. Temp. °C |
Application |
|
Copper |
150 |
Water, non-corrosive liquids |
|
Steel |
400 |
Oil immersion |
|
Stainless Steel 304 |
650 |
Water, Corrosive liquids, air, clamp on |
|
Stainless Steel 316 |
650 |
Corrosive liquids |
|
Stainless Steel 321 |
650 |
Intergranular corrosion situation |
|
Power |
3KW, 4.5KW, 6KW, 9KW, 12KW other customized |
|
|
Voltage |
220V, 230V, 240V, 380V, 400V other customized |
|
|
Reisistance wire element |
Ni-Cr/ FeCr |
|
|
Length toleranc |
+/1.5% |
|
|
Power tolerance |
+5%-10% |
|
|
Thread Size |
Voltage |
Power |
Material |
Tube diameter |
Length |
|
DN40 |
220V/380V |
3KW |
SS304 |
10MM |
220MM |
|
6KW |
260MM |
||||
|
9 |
330MM |
||||
|
12 |
360MM |
||||
|
9 |
600MM |
||||
|
12 |
600MM |
Product Advantage
1: Elaborate work Laser seamless welding, beautiful appearance, not easy to leak.
2: Stable Quality, Stainless steel thickness of 1.0mm is not easy to deform after long-term use.
Appliction
Professional selection, stable performance and more accurate,suitable for chemical industry aquaculture, food, packing, medical electronis and other industried with temperature control equipment.
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was founded in 2003, it has a registered capital of 10 million and 100 employees. The plant covers an area of 2000 m² and owns 20+ advanced production equipment imported from home and abroad.
Main products: industrial heater elements and temperature measuring instrument.
Documentation: confirm the CE, RoHS, quality-system and test documents applicable to the quoted product and order.
Enterprise philosophy: Customer and Quality First, Product quality is the vitality of an enterprise.
