Water Immersion Heater Element

PRODUCT ENGINEERING

Wetted material and minimum liquid level

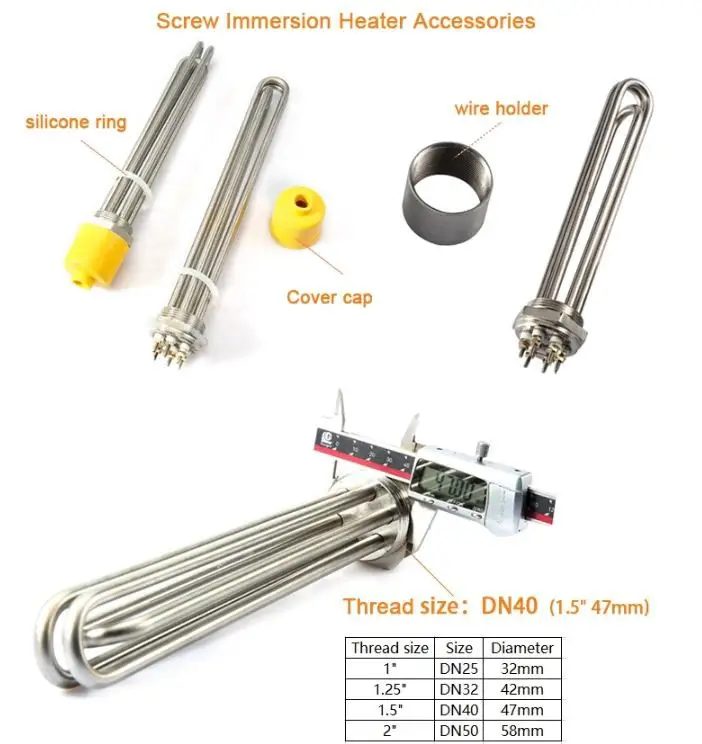

Water Immersion Heater Element: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.

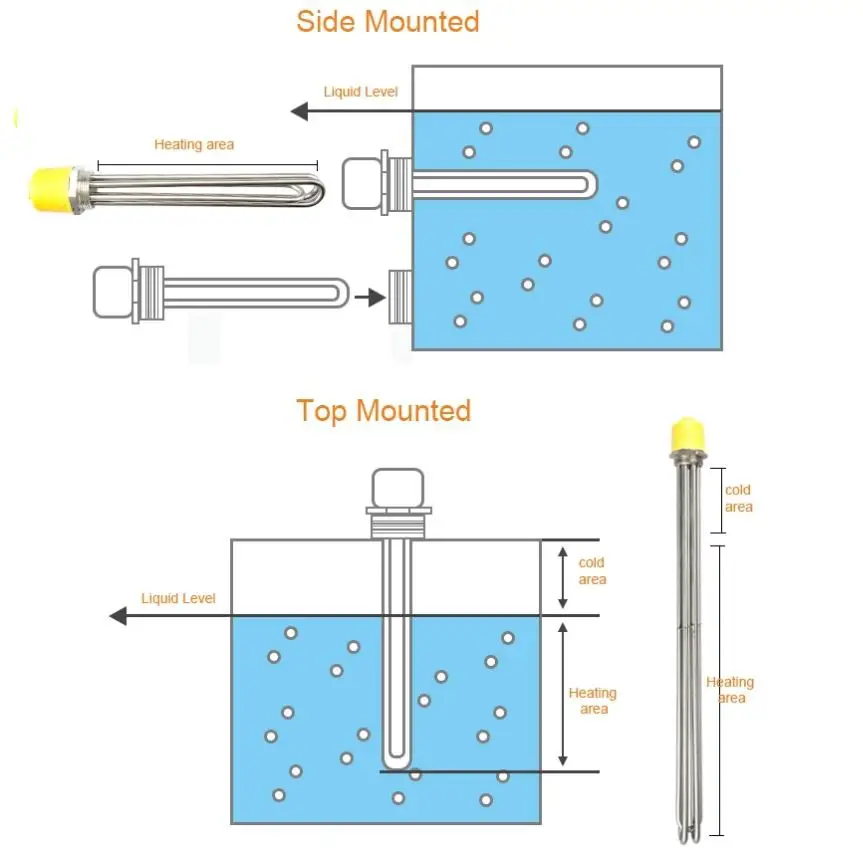

Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.

For Water Immersion Heater Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.

For Water Immersion Heater Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.

Application and reference configuration

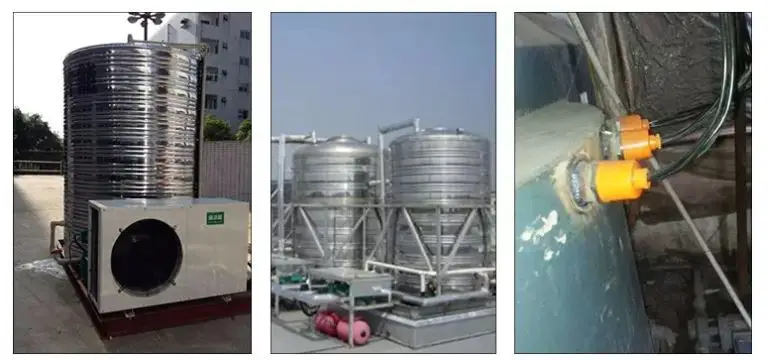

Tanks and process vessels. The final suitability of Water Immersion Heater Element depends on the assembled equipment and agreed operating conditions.

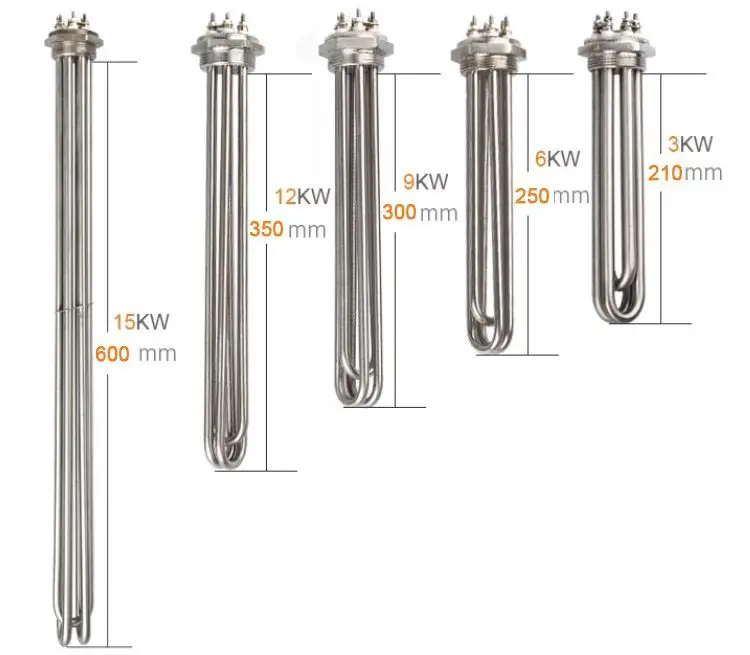

Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
