ACCURATE TEMPERATURE SENSING
1/2” Thermocouple
1/2” Thermocouple by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (3)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
1/2” Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For 1/2” Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of 1/2” Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
thermocouple as measure temperature sensor, and usually display meter, recording meter and
electronic regulator, at the same time, also can be used as a prefabricated thermocouple temperature
sensing element, it can be directly measured from 0 ℃ ~ 1200 ℃ in the process of various production
within the scope of the liquid, steam and gas medium, as well as the temperature of the solid surface.
| Size | Type | length | Temperature | Material | thread |
| WRN-130 WRN-230 |
K | L=300 | 0-1200℃ |
SS304 SS2520 SS201 |
M27*2 or custom |
| L=400 | |||||
| L=500 | |||||
| L=600 | |||||
| L=700 | |||||
| L=800 | |||||
| L=900 |
Product advantage

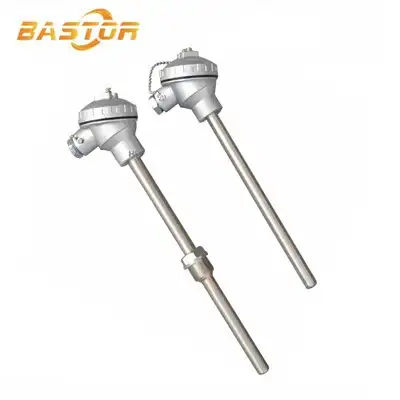

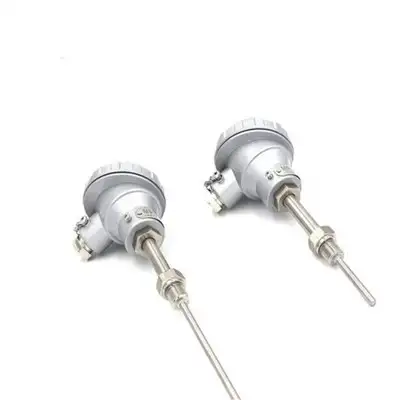

1:Size: WRN-130 (Without thread) ,WRN-230 (M27*2 thread)
2:Tube diameter:16mm (6-20mm diameter can be customized)
3:Wire diameter:1.5mm (Stander size,can be customized)
4:Stainless steel protective tube:SS304
