ACCURATE TEMPERATURE SENSING

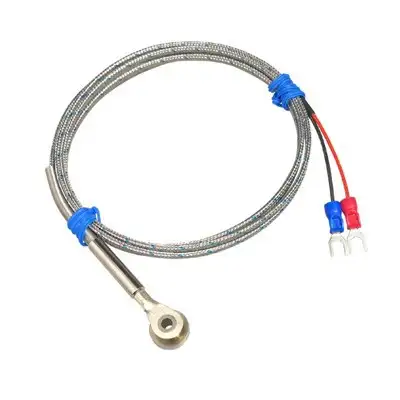

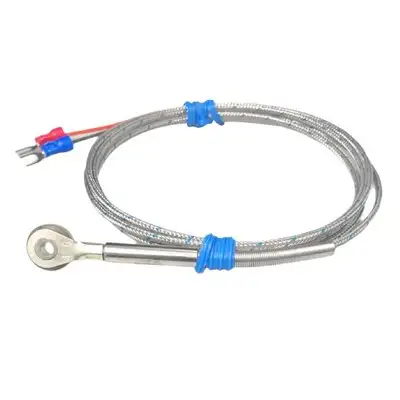

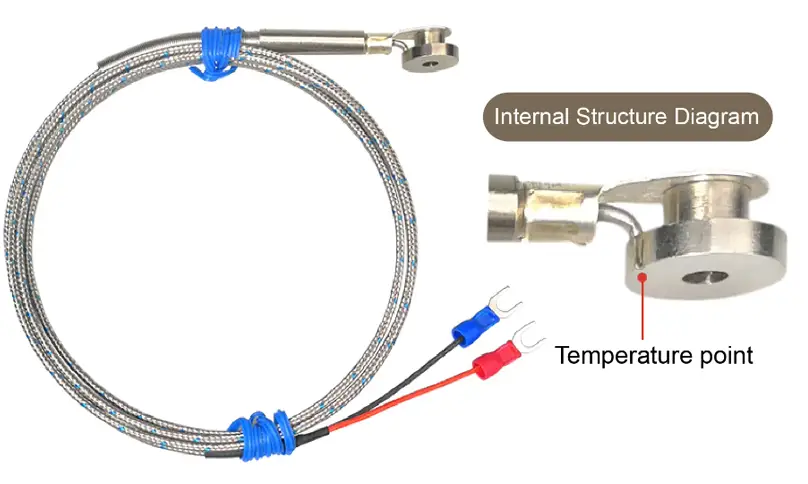

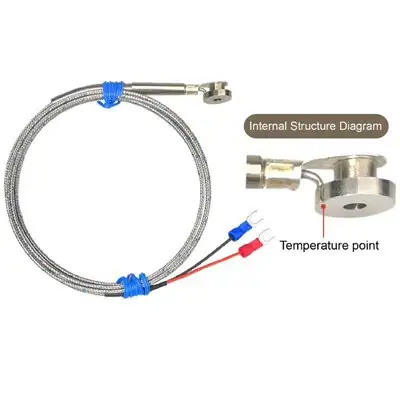

Button Temperature Sensor
Button Temperature Sensor by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (6)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Button Temperature Sensor: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Button Temperature Sensor lists Outer Diameter: Φ14mm; Temperature Hole Diameter: Φ4.2mm; Protective Tube Material: Copper; Lead Wire: 2×7×0.2mm multi-strand. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Button Temperature Sensor, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Button Temperature Sensor depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Parameter | Details |
|---|---|
| Product Name | Button-Type Thermocouple, T-Type Probe |

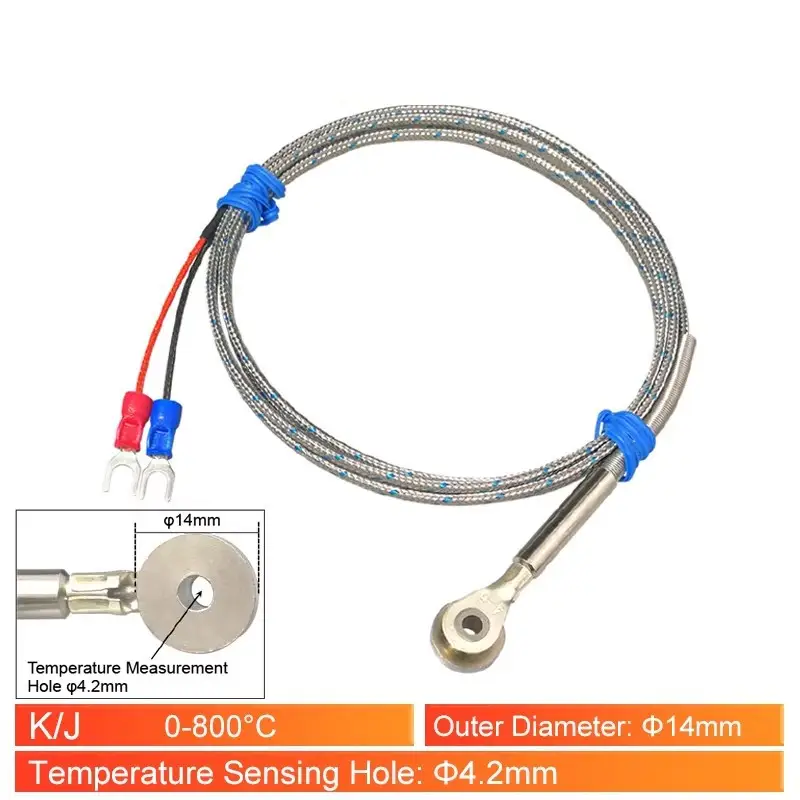

| Thermocouple Type | K-type (default) / J-type |
| Temperature Range | 0–800°C (K/J type) |

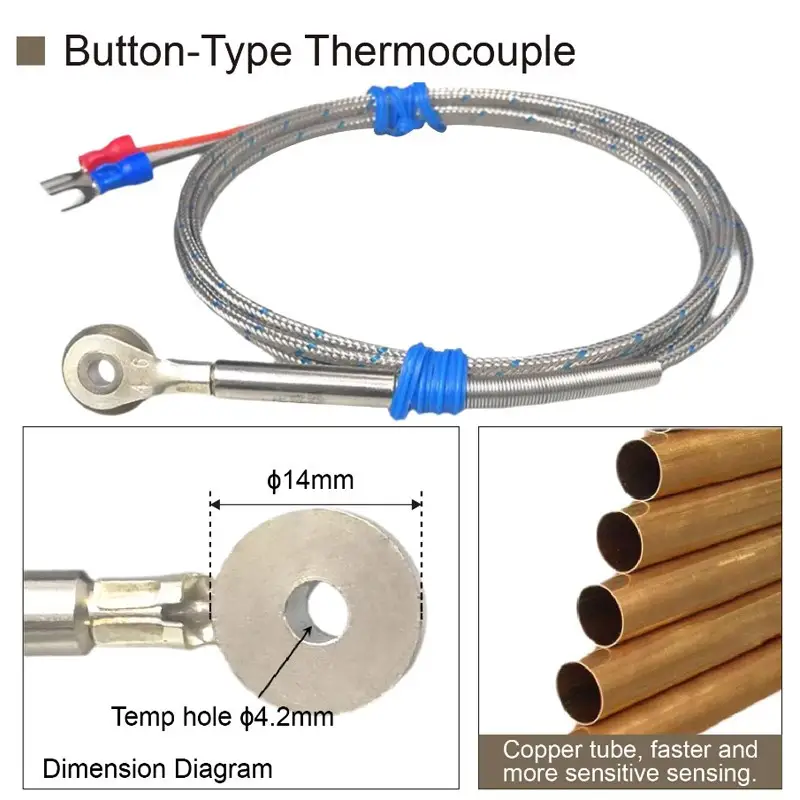

| Outer Diameter | Φ14mm |
| Temperature Hole Diameter | Φ4.2mm |
| Protective Tube Material | Copper |
| Connector Type | U-type (default) / Plug Options |
| Lead Wire | 2×7×0.2mm multi-strand |
| Shielding Layer | Precision braided shielding |
ARCHIVED PRODUCT INFORMATION
Description
A magnetic thermocouple is a specialized type of thermocouple that incorporates magnetic materials or principles to enhance
temperature measurement, particularly in environments with strong magnetic fields or where magnetic effects influence thermal readings
|
Parameter |
Details |
|
Product Name |
Button-Type Thermocouple, T-Type Probe |
|
Thermocouple Type |
K-type (default) / J-type |
|
Temperature Range |
0–800°C (K/J type) |
|
Outer Diameter |
Φ14mm |
|
Temperature Hole Diameter |
Φ4.2mm |
|
Protective Tube Material |
Copper |
|
Connector Type |
U-type (default) / Plug Options |
|
Lead Wire |
2×7×0.2mm multi-strand |
|
Shielding Layer |
Precision braided shielding |
|
Lead Length |
Customizable (0.5m–5m) |
Features
High Sensitivity: The copper protective tube enables rapid and precise temperature detection, ensuring reliable performance in demanding applications.
Customizable Options: Multiple connector choices, including U-terminal, pin connectors, and quick plugs like XH2.54, are available.
Durable and Stable: Multi-strand lead wires with precision braided shielding provide long-lasting durability and stability.
Flexible Lead Lengths: Customizable lead wire lengths (0.5m–5m) to meet specific installation requirements.
Versatile Applications: Suitable for hot runner systems, industrial heating equipment, and other precision temperature monitoring applications.
Applications
Ideal for precise temperature monitoring in hot runner systems.
Commonly used in injection molding and industrial heating processes.
Suitable for equipment requiring stable and reliable temperature measurement.
Related Product Recommendation
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: button temperature sensor, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, high temperature k type thermocouple, K E T PT100 RTD Thermocouple, Pid Digital Temperature Controller, 3 Wire RTD Temperature Sensor PT100, k type temperature thermocouples, ceramic k type thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
