ACCURATE TEMPERATURE SENSING
C Type Thermocouple
C Type Thermocouple by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.

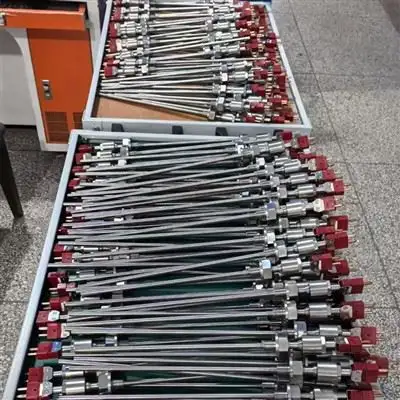

Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
C Type Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For C Type Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of C Type Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Type C
Type C thermocouples are made of tungsten and rhenium. They are used in applications that produce high temperatures up to 4200°F or 2315°C. Type C thermocouples are used in hydrogen, inert, or vacuum atmospheres to prevent failure from oxidation. They have protective sheaths made of molybdenum, tantalum, and inconel with insulators made of alumina, hafina, and magnesium oxide.
| Model | probe | range | |
| C type thermocouple | 6mm.6.8mm 8mm or custom | 0 to 2000℃ | |
| probe material | Default molybdenum tube | ||
Product Advantages

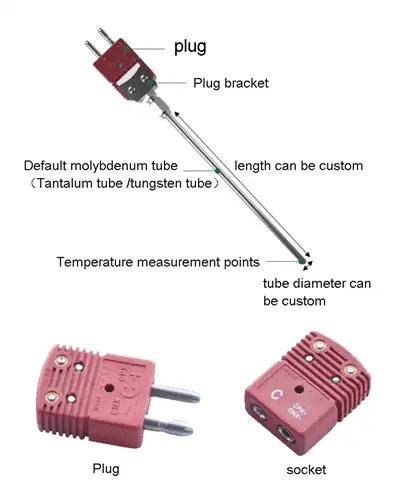

1:C-type plug
made of glass fiber filled nylon material, corrosion-resistant and wear-resistant, sturdy and durable
2:High temperature resistant molybdenum tube, ultra-high temperature resistance of 2000 ° C,
anti-corrosion and wear-resistant, customizable tungsten tube, tantalum tube

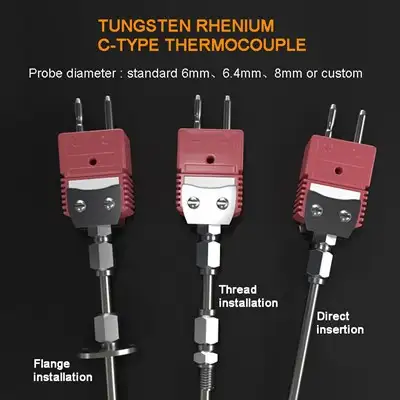

3:Probe diameter :6mm/6.8mm/8mm or custom,probe length can be custom
thermocouple is a type of temperature sensor that uses two dissimilar metal wires made of stainless steel alloys to measure temperature variations. Thermocouples are widely used in various industries and applications due to their simplicity, reliability, and broad temperature measurement range.
Here's how a thermocouple works:
Principle: Thermocouples rely on the Seebeck effect, which states that when two different metals are joined together at two junctions and there is a temperature gradient along the length of the metals, a voltage is generated at the open ends of the metals. This voltage is directly proportional to the temperature difference between the junctions.
Construction: A stainless steel thermocouple is made by welding or crimping together two different types of stainless steel alloys to form the two junctions. The point where the two different metals are joined is called the "hot junction" or "measuring junction," which is exposed to the temperature being measured. The other ends of the wires are connected to a measuring instrument, such as a thermocouple thermometer or a temperature controller.
Temperature Measurement Range: Stainless steel thermocouples have a moderate temperature measurement range, typically from around -200°C (-328°F) to 1200°C (2192°F). The exact temperature range depends on the specific type of stainless steel alloys used.
Advantages: Stainless steel thermocouples are known for their durability, resistance to corrosion, and stability at high temperatures. They are suitable for many industrial applications, including food processing, chemical processing, HVAC systems, and exhaust gas monitoring.
Limitations: While stainless steel thermocouples offer good general-purpose temperature measurement capabilities, they might not be as accurate or sensitive as some other thermocouple types, such as those made from noble metal alloys like platinum and rhodium (type S and type R thermocouples). In high-temperature applications, the thermocouple's sheath material can affect accuracy and response time.
Remember that for critical or precise temperature measurements, it's essential to choose the right type of thermocouple that best suits your specific application requirements. Factors such as temperature range, accuracy, environmental conditions, and the chemical composition of the substances being measured should all be considered when selecting a thermocouple.
Chapter Four: Uses for a Thermocouple
Thermocouples are widely used temperature sensors because of their wide temperature capabilities, ruggedness, and low cost. They are found in home appliances, industrial processes, electric power generation, furnace monitoring and control, food and beverage processing, automotive sensors, aircraft engines, rockets, and spacecraft.
Their small size and fast response, as well as their ability to endure shocks and vibrations, makes them perfect for temperature control and measurement.
Below is a description of a few of the applications for thermocouples.
Related Product Recommendation
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermocouple k, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, ceramic k type thermocouple, Platinum Rhodium Thermocouple, 4 Wires Rtd Pt100 Thermocouple Sensor, industrial waterproof rtd pt100 sensor, Temperature Sensor K Type Thermocouple, k type screw type thermocouple
Hot Tags: c type thermocouple, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, ceramic b type thermocouple, Thermocouple, Temperature Sensor K Type Thermocouple, k type pt100 thermocouples rtd, temperature sensor thermocouple pt100 rtd, rtd thermocouple pt100 temperature sensor
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
