ACCURATE TEMPERATURE SENSING
Ceramic Thermocouple
Ceramic Thermocouple by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Ceramic Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For Ceramic Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Ceramic Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Product Description

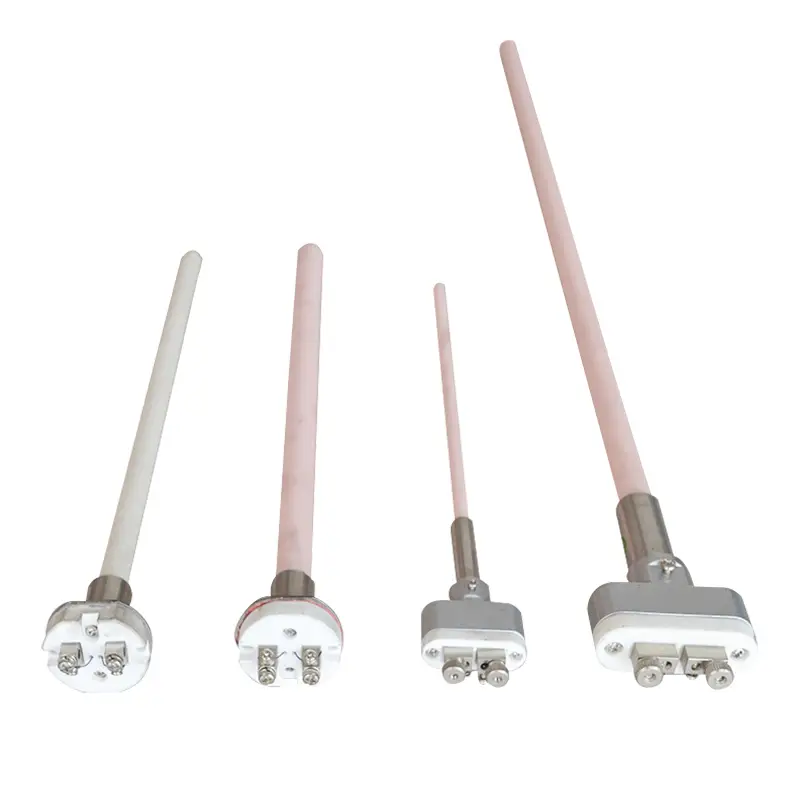

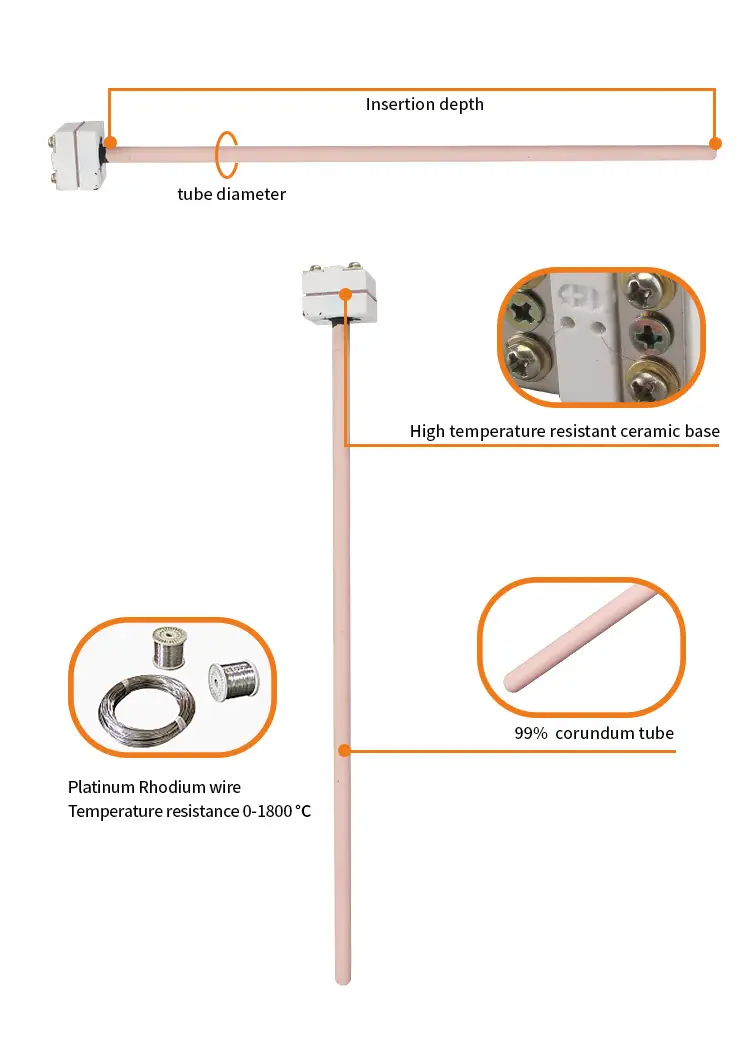

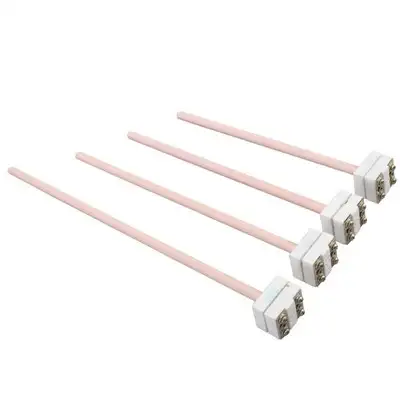

High accuracy probe ceramic tube temperature sensor thermocouple r s b type
Type S thermocouples are constructed using one wire of 90% Platinum and 10% Rhodium (the positive or
"+" wire) and a second wire of 100% platinum (the negative or "-" wire). Like type R, type S thermocouple
are used up to 1600 °C.
Type B thermocouples use a platinum–rhodium alloy for each conductor. One conductor contains 30%
rhodium while the other conductor contains 6% rhodium. These thermocouples are suited for use at up
to 1800 °C. Type B thermocouples produce the same output at 0 °C and 42 °C, limiting their use below
about 50 °C.
| Size | type | temperature | Accuracy | Length |
| WRR | B | 0~1800 | ±1.5℃ | 70 |
| WRP | S | 0~1600 | ±1.5℃ | 85 |
| WRQ | R | 0~1600 | ±1.5℃ | 90 |
| wire diameter | 0.15mm or customized | 95 | ||
| tube diameter | 8mm or customzied | 120 | ||
Product Advantage
1) High wear resistance: the alloy system commonly used in international wear resistant composite
steel plate has excellent wear resistance and grain wear performance
2) Impact resistance: The substrate of wear-resistant composite steel plate adopts low carbon steel
plate with good plasticity, which can absorb energy in the process of impact
3) Easy to process: Wear-resistant composite steel plate can be made into standard size plate, light
weight, convenient and flexible processing,
4) High performance-to-price ratio: the cost of manufacturing parts with wear-resistant composite steel
plate is higher than that of ordinary materials

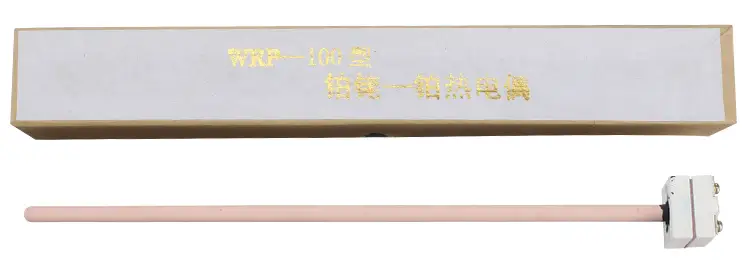

Package
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: ceramic thermocouple, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Aluminium Spiral Stainless Steel Finned Tube, k type pt100 thermocouples rtd, Pellet Ignition Ceramic, stainless steel flange immersion heating element, fuel water level sensor switch, Electric Water Screw Immersion Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
