ACCURATE TEMPERATURE SENSING

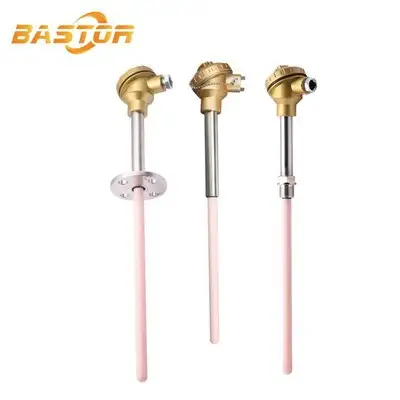

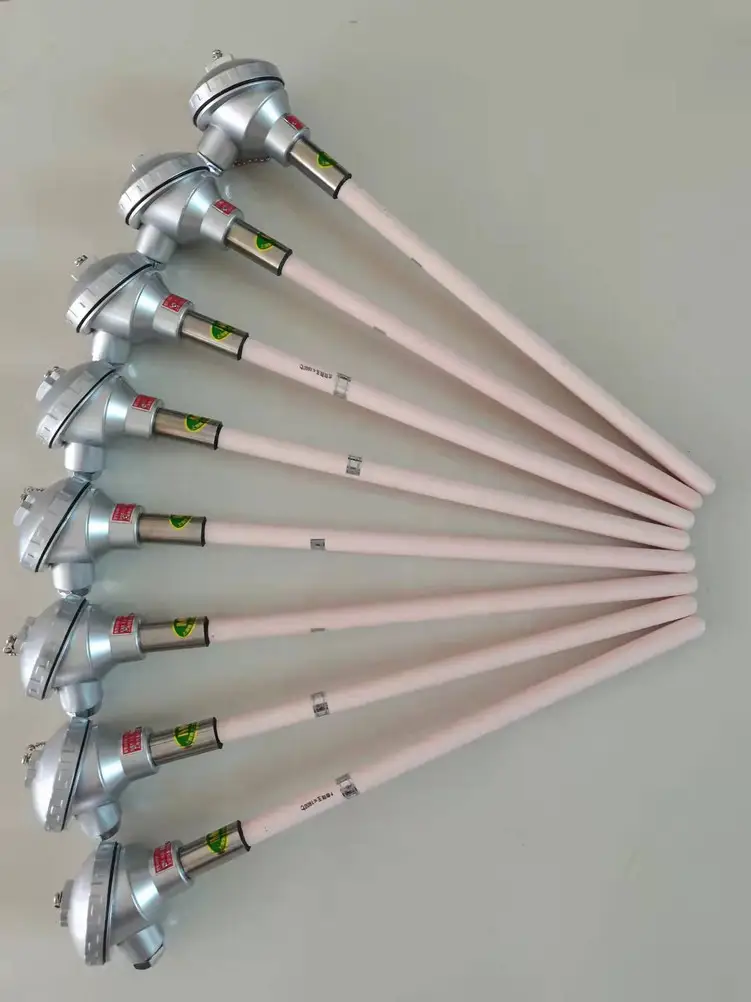

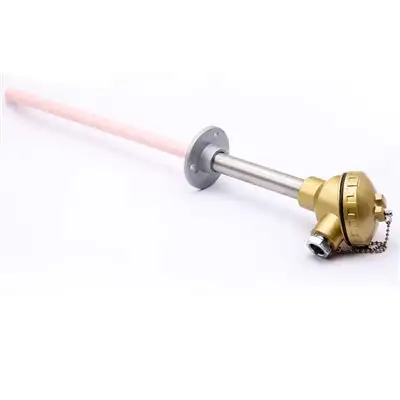

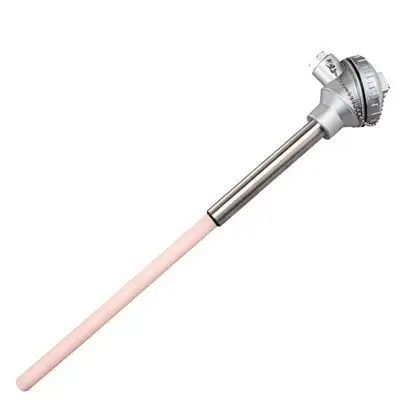

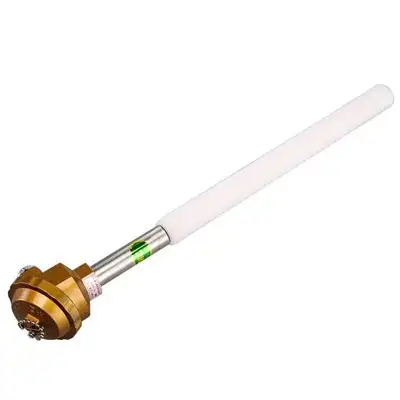

High Temperature Ceramic Thermocouple
High Temperature Ceramic Thermocouple by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (5)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
High Temperature Ceramic Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For High Temperature Ceramic Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of High Temperature Ceramic Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
thermocouple is a type of temperature sensor that consists of two dissimilar metal wires joined at one end, called the junction. When the junction
is exposed to a temperature difference, a voltage is generated that is proportional to the temperature difference.
This voltage can be measured and used to calculate the temperature.
|
Thermocouple |
Product model |
Length |
Insertion Depth |
Graduation |
Thermometric |
Specification |
Thermal response |
|
|
Category |
300 |
150 |
Mark |
Scope |
Diam (mm) |
Protection |
Time T (s) |
|
|
Single |
WRB-120-T |
350 |
200 |
S/ R /B |
0~2500C |
Φ16 |
Corundum |
<150 |
|
Pt Rh30-Pt Rh6 |
WRB-121-T |
400 |
250 |
Φ25 |
<360 |
|||
|
Double |
WRB-120-T |
450 |
300 |
Φ16 |
<150 |
|||
|
PtRh 30-Pt Rh6 |
WRB-121-T |
550 |
400 |
Φ25 |
<360 |
|||
|
Single Pt Rh 10-Pt |
WRS-120-T |
650 |
500 |
Φ16 |
<150 |
|||
|
WRS-121-T |
900 |
750 |
Φ25 |
<360 |
||||
|
Double Pt Rh10-Pt |
WRS-120-T |
1150 |
1000 |
Φ16 |
<150 |
|||
|
WRS-121-T |
1250 |
1100 |
Φ25 |
<360 |
||||
temperature sensor thermocouple is use of metal platinum (pt) resistance and temperature with a certain
functional relation of temperature sensor,Due to its high accuracy, large measuring range, good reproducibility
and stability, etc. That are widely used in medium temperature (-200 ℃ ~ 650 ℃) in the range of temperature
measurement.Diameter of protective tube4~20. Length according to user requirements
Product Advantage
1: High temperature resistant ceramic base
2: Imported chip
3: Temperature resistance 0-2500℃
4: The installation method can be customized
5: Degrees fast response speed the installation
6: Micro Welding Technology
7: High accuracy, High quality temperature measuring wire
8: 99% corundum tube
Thermocouples are commonly used in industrial applications for temperature measurement, such as in furnaces, ovens, and other high-temperature processes.
They are also used in scientific research and in household appliances like stoves and grills.
There are many different types of thermocouples, each made from a different combination of metals, with different temperature ranges and accuracies.
Common types include J, K, T, and E, with J and K being the most commonly used. The choice of thermocouple type depends on the application
requirements, including temperature range, accuracy, and environment.

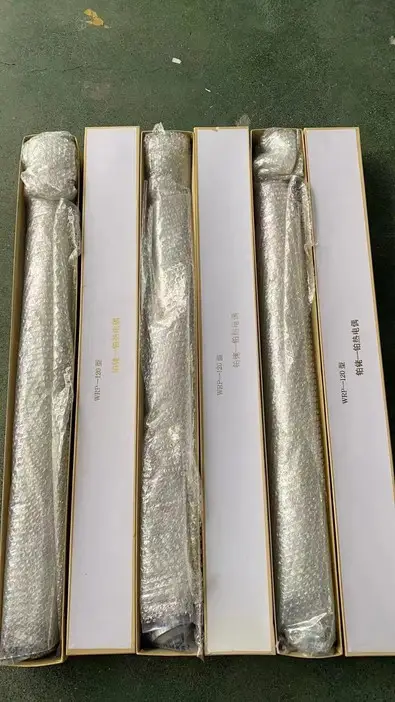

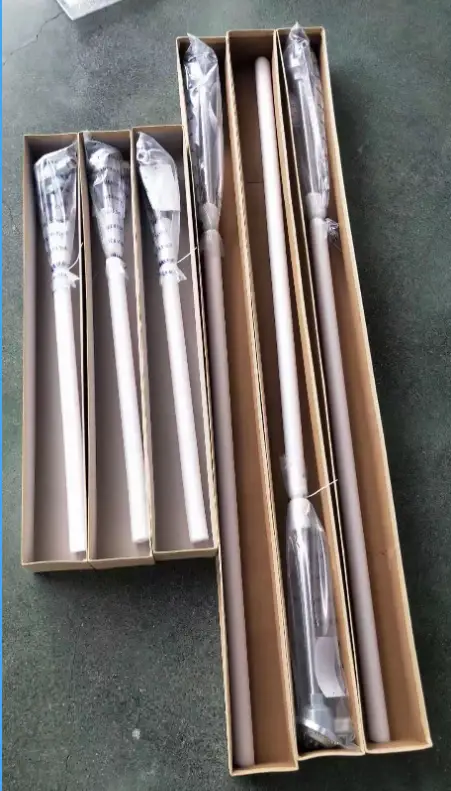

Package

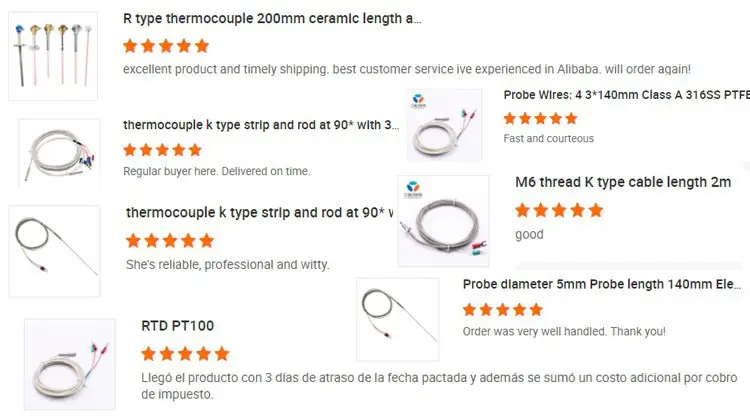

Feedback
