ACCURATE TEMPERATURE SENSING
Hot Runner Manifold Thermocouple
Hot Runner Manifold Thermocouple by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (8)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Hot Runner Manifold Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For Hot Runner Manifold Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Hot Runner Manifold Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
This is a surface-mounted thermocouple (or RTD) temperature sensor, mainly used for surface temperature measurement in industrial equipment.
Structure and Function

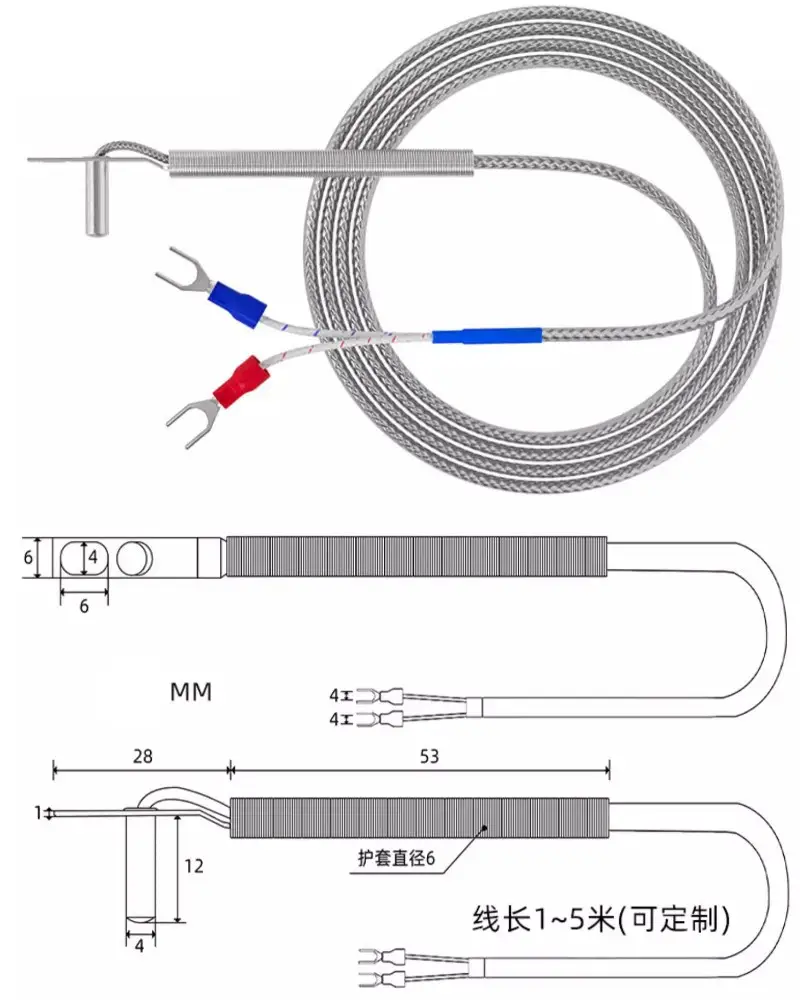

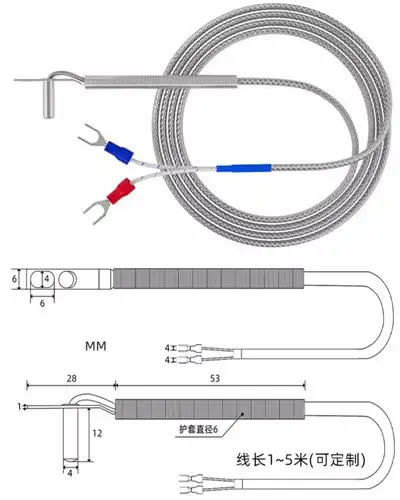

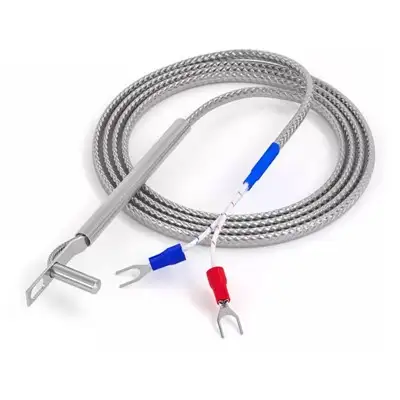

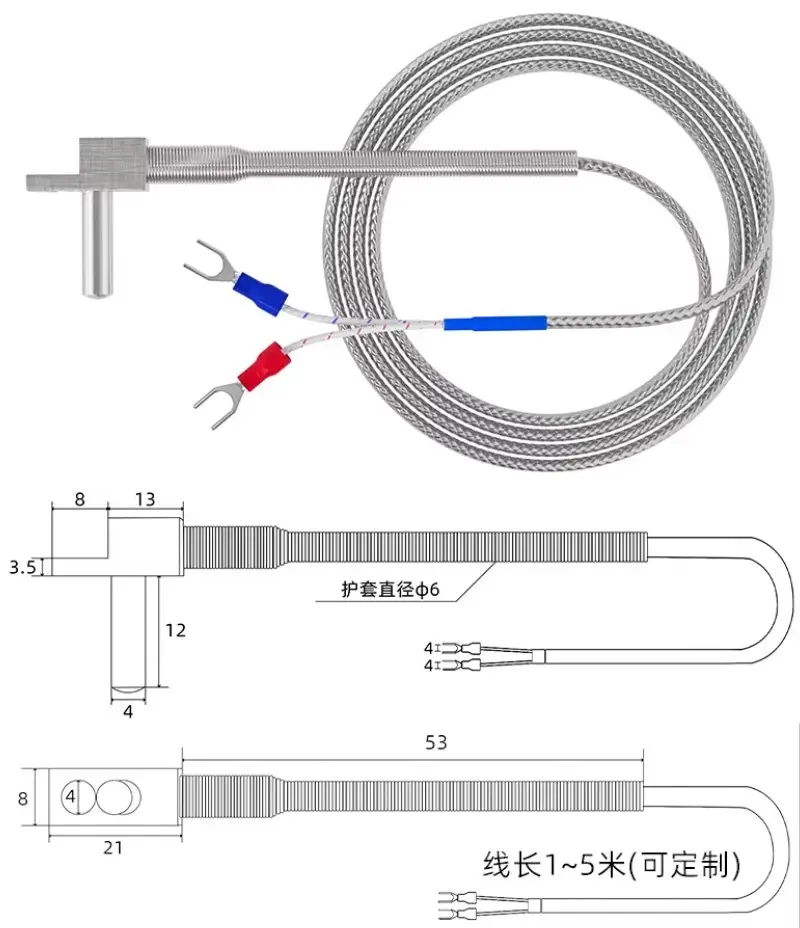

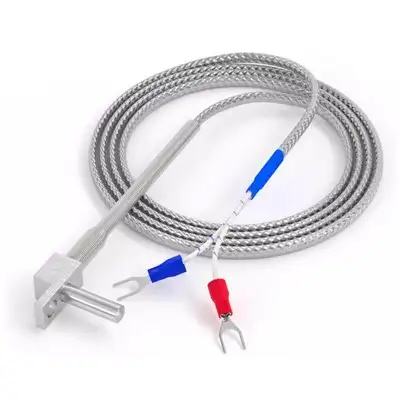

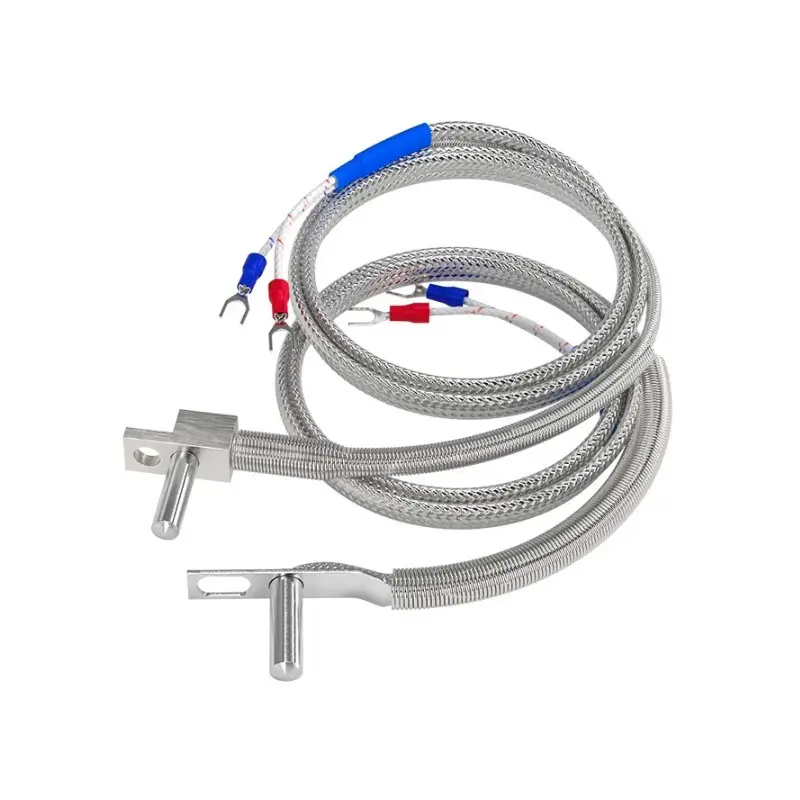

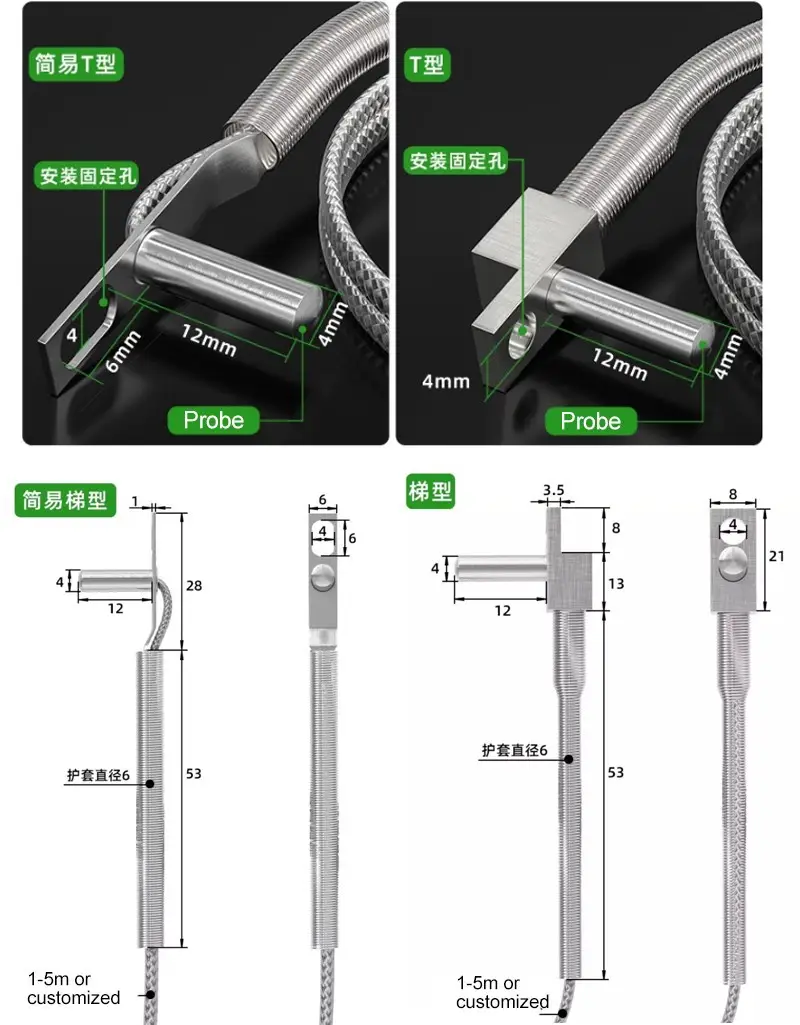

Probe section: The front end is a stainless steel cylindrical probe with a mounting tab (with holes), which can be tightly attached to the surface of metal equipment, pipes, or molds via screws to ensure accurate temperature measurement.
Connecting cable: It uses a metal braided shielded cable, which is characterized by high temperature resistance, anti-interference, and good flexibility, and can adapt to complex industrial environments.

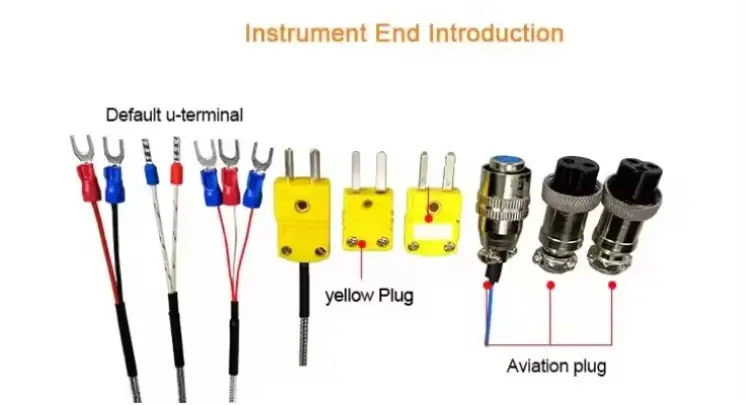

Terminal block: There are red and blue terminal forks at the end, which are used to connect temperature control instruments, PLCs, or data acquisition equipment to transmit temperature signals.
Key Features
Accurate temperature measurement: It is in close contact with the measured surface, reducing thermal resistance and improving measurement accuracy.
Fast response: The compact probe design enables a quick response to temperature changes.
Easy installation: The mounting tab design allows for quick installation and removal on the equipment surface.
Wide application: It is commonly used in scenarios requiring real-time monitoring of surface temperature, such as plastic machinery, food processing, HVAC, and industrial furnaces.
Related Product Recommendation
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: hot runner manifold thermocouple, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, m6 rtd pt100 sensor thermocouple, Temperature Sensor Probe Thermocouple PT100, K Type Bayonet Spring Thermocouple, Platinum Rhodium Thermocouple, K E T PT100 RTD Thermocouple, high temperature thermocouples s type
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
