ACCURATE TEMPERATURE SENSING
Industrial Thermometers
Industrial Thermometers by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Industrial Thermometers: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Industrial Thermometers lists resolving power: (-99°~999.9°)0.1°℃/°F;. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Industrial Thermometers, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Industrial Thermometers depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Measurement range | K-type:-200℃~+1372℃ |
|---|---|
| resolving power | (-99°~999.9°)0.1°℃/°F; |
| Accuracy | ±0.2%+0.7°℃ |
| Above alarm | Default value 1300℃ |
| Low alarm | Default value -200℃ |
| ADJ compensation | -9~+9℃ A17 Probe error range compensation |
| Automatic Storage | Only store thermocouple channel temperature values |
| Record duration | H:M/M:S |
| With bracket nut | 1/4 British screw nut |
ARCHIVED PRODUCT INFORMATION
Description
| type | TA612A | TA612B | TA612C | |
| Measurement channel | single channel | Dual channel | Four channels | |
| Temperature difference measurement | - | √ | - | |
| Measurement range | K-type:-200℃~+1372℃ | |||
| (-328°F~+2501°F) | ||||
| J-type:-200℃~+1200℃ | ||||
| (-328°F~+2192°F) | ||||
| resolving power | (-99°~999.9°)0.1°℃/°F; | |||
| (-100°~-200°,≥1000°)¹℃/°F | ||||
| Accuracy | ±0.2%+0.7°℃ | |||
| Above alarm | Default value 1300℃ | |||
| Low alarm | Default value -200℃ | |||
| ADJ compensation | -9~+9℃ A17 Probe error range compensation | |||
| USB computer communication | - | √ | ||
| Data storage | 9999 pens | 9999 pens | 5000 pens | |
| After opening | ||||
| Automatic Storage | Only store thermocouple channel temperature values | |||
| environment | range | 0~60℃ | - | - |
| Temperature | Accuracy | ±2℃ | ||
| Record duration | H:M/M:S | |||
| Interval setting | ||||
| With bracket nut | 1/4 British screw nut | |||
| Sampling rate | Once per second | |||
| Automatic shutdown | 15 minutes (can be manually turned off) | |||
| Usage environment | -10-50 ℃, with a maximum relative humidity of 80% | |||
| Humidity, indoor altitude<2000m | ||||
| Storage environment | -10-50 ℃, with a maximum relative temperature of 70% | |||
| Humidity (remove battery) | ||||
| Products size | 177×70×35mm | |||
| Display screen size | 53x44mm | |||
| weight | about 189g | |||
| power | 3 × 1.5VAA (LRO6) battery/USB micro interface 5V | |||
| K type thermocouple | Randomly configured probe measurement range -50 ℃~300 ℃ (± 1.5%) | |||
| TA612A(1of them ),TA612B(2 of them),TA612C(4 if them) | ||||

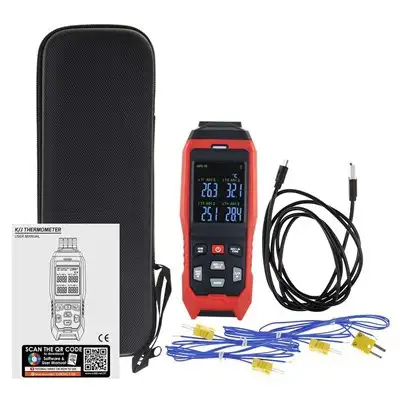

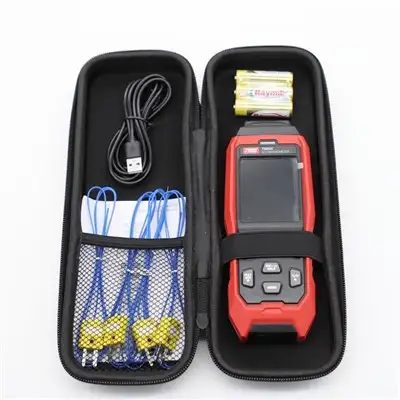

| Packaging accessories | Host, color box, cloth bag, instruction manual, certificate of conformity, K-type thermocouple | |||
| Packaging size | 295×100×60mm | |||
| Individual packaging weight | 502g | 510g | 526g | |
1:Allows user to manually set upper and lower alarm thresholds to ensure that you are immediately alerted when the temperature reaches a critical point. The light indicator will flash and the device will emit a beeping sound to notify you when the temperature is either higher or lower than the set thresholds.
2:Can display up to 4 temperature readings at simultaneously, which is useful for scientific or industrial processes. It has a clear display for easy reading and provides real-time data. It is an essential tool for accurate temperature monitoring in many applications.
3:Features advanced power management capabilities with an auto power-off function after 15min of inactivity, helping to conserve battery life. It also includes a disable function to turn off the auto power-off feature when conducting extended experiments or measurements.
4:ADJ Temperature Compensation Function With an ADJ thermocouple temperature compensation, this thermometer provides precise readings in difficult conditions. It compensates for temperature changes in the thermocouple wire to minimize errors and ensure accurate results.

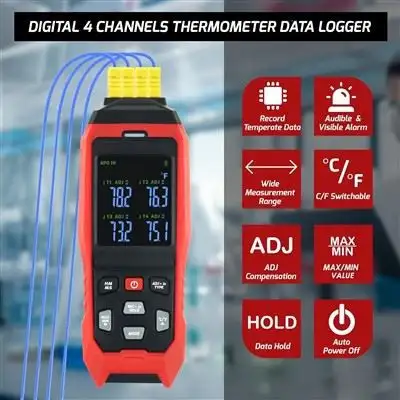

[4 Channels Thermometer Data logger]4 channels thermometer main unit can record 5000 groups temperature, and unlimited data storage when connect to software in PC
[Wide Measurement Range]The man unit of thermometer measuring range is: -328~2501degreeF (-200~1372degreeC); Range of K type thermocouples: -58~572degreeF(-50~300degreeC)

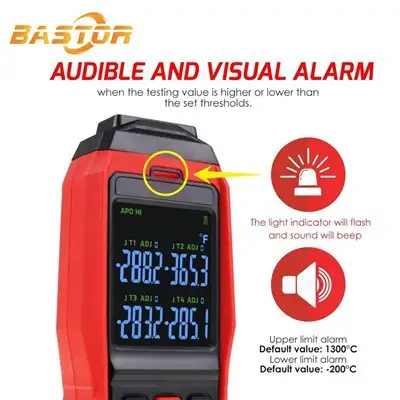

[Audible&Visible Alarm]Manually set the upper and lower alarm thresholds. The light indicator will flash and sound will beep when the testing value is higher or lower than the set thresholds

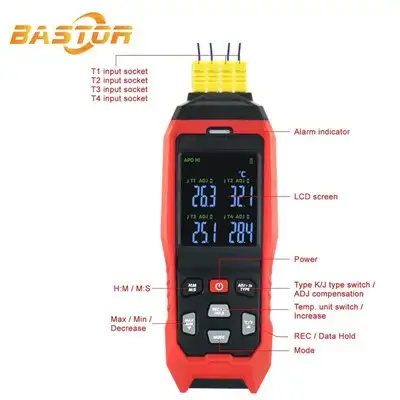

[Multi-Functional]: HD large screen display, degreeF/degreeC & K/J switchable, multi sampling rates, Max/Min/Average, Data Hold, Auto power-off function(can be cancelled manually)
[ADJ temperature compensation]Long press ADJ button, then adjust the ADJ Temperature compensation value to complete the calibration procedure, ADJ compensation range: -16~48degreeF (-9~9degreeC)
