ACCURATE TEMPERATURE SENSING
J Type Temperature Sensors Types Thermocouple
J Type Temperature Sensors Types Thermocouple by LICHENGDA. High-temperature atmosphere and protection tube, configuration details and made-to-drawing quotation for furnaces, kilns and high-temperature process control.
Product image gallery (6)
PRODUCT ENGINEERING
High-temperature atmosphere and protection tube
J Type Temperature Sensors Types Thermocouple: For platinum-rhodium sensing, the process atmosphere and protection-tube material determine contamination exposure. Confirm the named thermocouple type, insertion length and mounting geometry together.
Review reference-junction compensation and compatible extension wiring. Keep the hot-zone sensing element protected during handling and request a configuration-specific calibration and temperature rating.
The archived configuration for J Type Temperature Sensors Types Thermocouple lists Customized thread size: M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25; Tube diameter: 5mm(Stander) 3mm/4mm or customized; Tube length: 30mm or customized; Wire diameter: 2*0.4mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For J Type Temperature Sensors Types Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Furnaces, kilns and high-temperature process control. The final suitability of J Type Temperature Sensors Types Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| thread | Stander size M12*1.5 |
|---|---|
| Customized thread size | M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25 |
| Tube diameter | 5mm(Stander) 3mm/4mm or customized |
| Tube length | 30mm or customized |
| Wire diameter | 2*0.4mm |
| K type | 0-800 ℃ |
| E type | 0-400 ℃ |
| J type | -45-300℃ |
ARCHIVED PRODUCT INFORMATION
Description

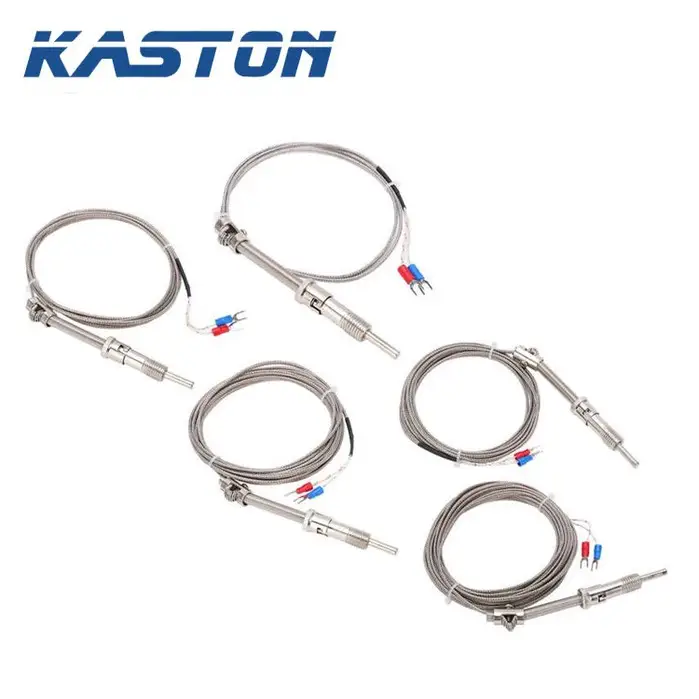

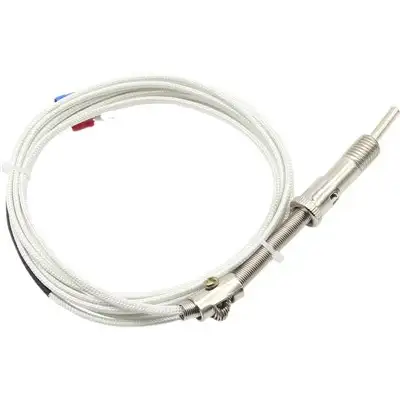

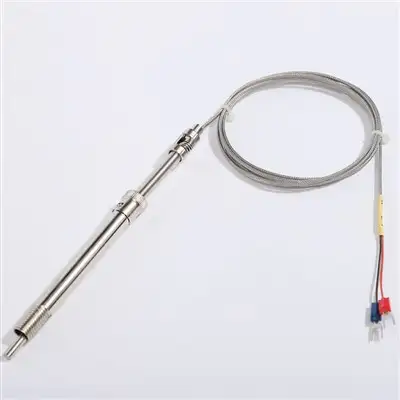

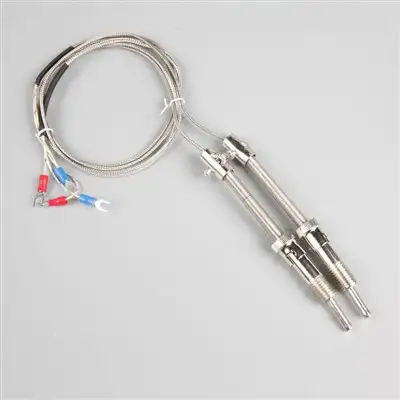

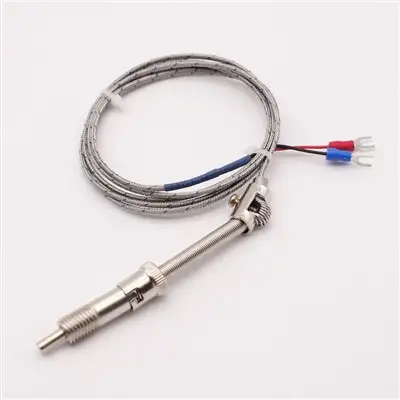

Type J Bayonet Thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. Thermocouple alloys are commonly available as wire.
|
thread |
Stander size M12*1.5 |
|
Customized thread size |
M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25 |
|
Tube diameter |
5mm(Stander) 3mm/4mm or customized |
|
Tube length |
30mm or customized |
|
Wire diameter |
2*0.4mm |
|
K type |
0-800 ℃ |
|
E type |
0-400 ℃ |
|
J type |
-45-300℃ |
Product Advantages
1:Screw length adjustement,M12 thread with spring
2:Precision metal anti-interference Extension wire
3:High Precision Temperature control probe ,Adjustable probe size
4:Wide range of temperature measurement,Quick response
5:Stainless steel rust protection tube
Thermocouples are used in industry for measuring the temperature of gases,liquids or solid surfaces etc.,It's usually assembled with indicators,recorders or computers.
A thermocouple consists of two dissimilar metals joined together at one end.When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K,N,E,J,T,S,R,B.Each calibration has a different temperature range.
