ACCURATE TEMPERATURE SENSING

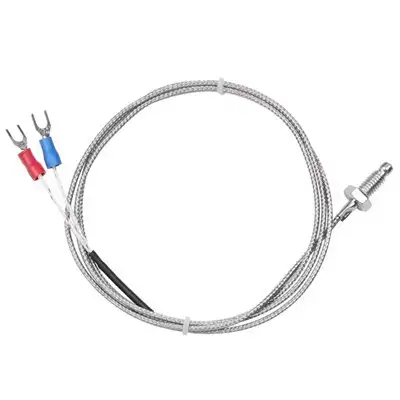

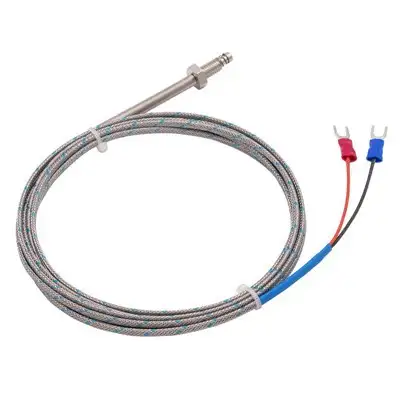

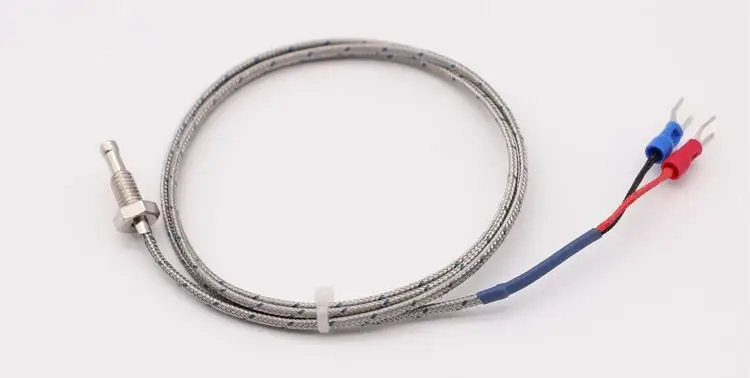

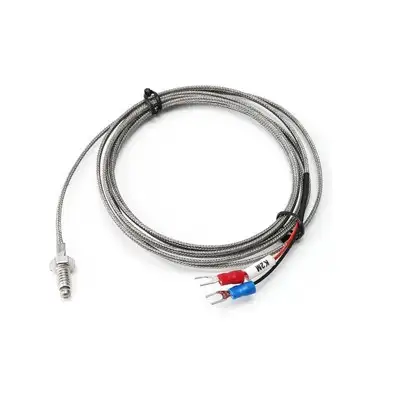

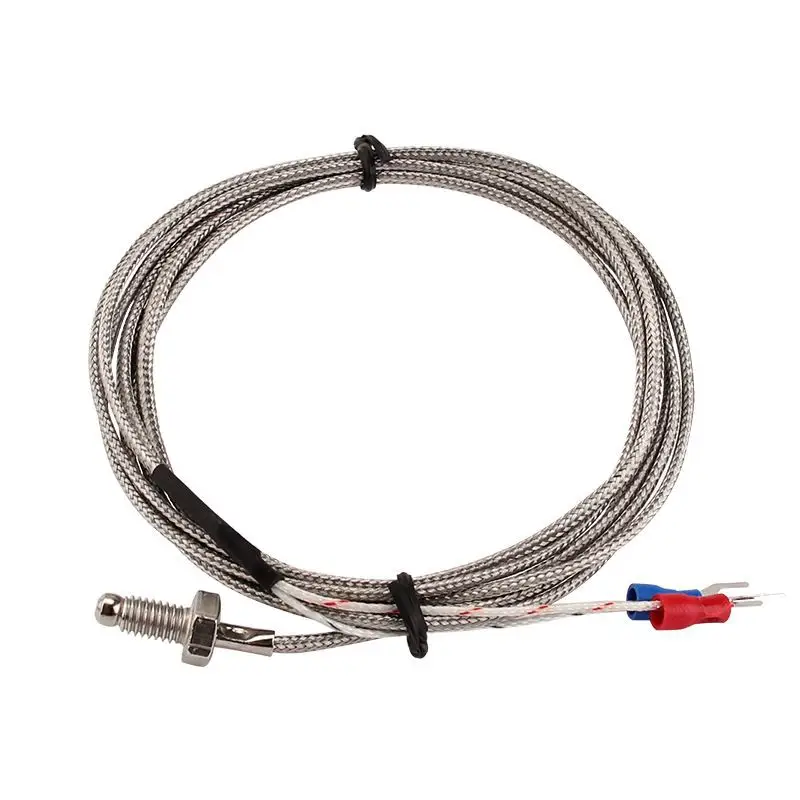

J Type Thermocouple M6 Screw
J Type Thermocouple M6 Screw by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
J Type Thermocouple M6 Screw: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for J Type Thermocouple M6 Screw lists Cable material: Shielded wire,Fiberglass, PTFE, silicon; Thread size: M5/M6/M8; Thread size: M6*1/ M6*1.25. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For J Type Thermocouple M6 Screw, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of J Type Thermocouple M6 Screw depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

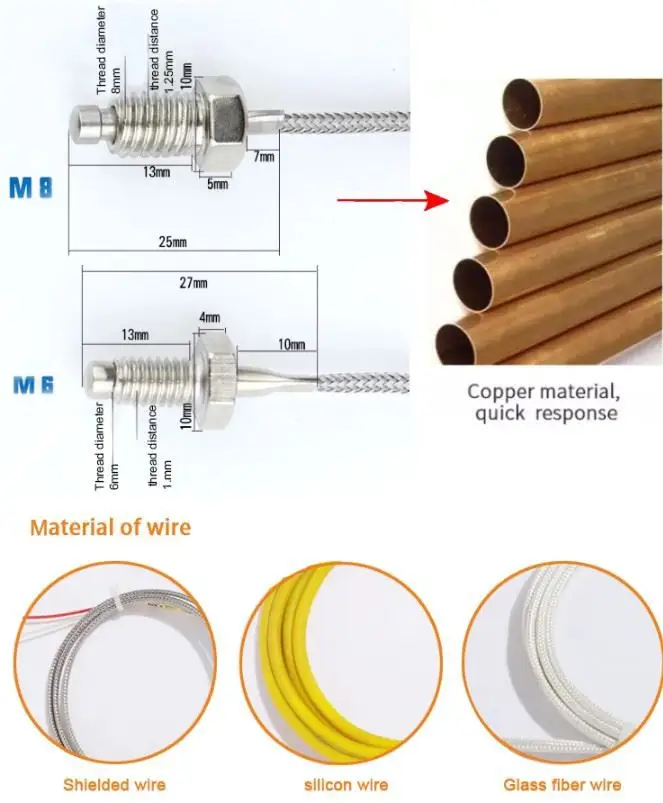

| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
|---|---|
| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |
ARCHIVED PRODUCT INFORMATION
Description
| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |

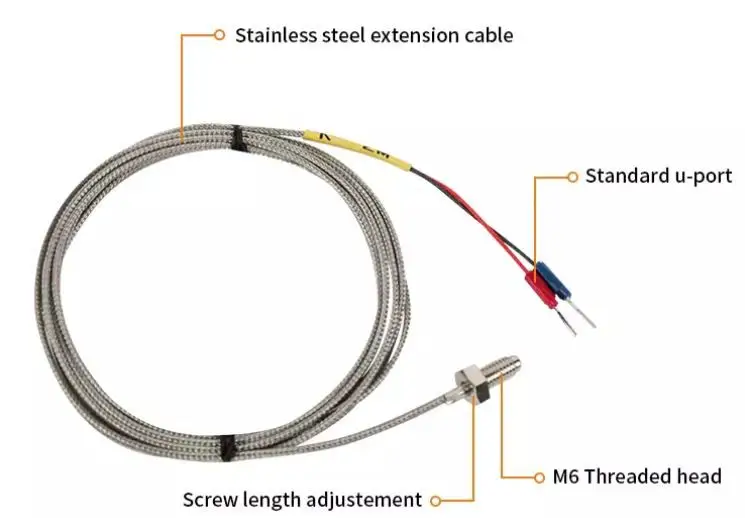

Product Advantage
1:High Precision Temperature control probe
2:Accurate measurement (imported chip),high sensitivity
3:fast response,anti-interference,Good temperature resistance
4:Protection spring,Stainless steel special plug
Appliction:professional selection,stable performance and more accurate,suitable for chemical industry
aquaculture ,food ,packing ,medical electronis and other industried with temperature control equipment

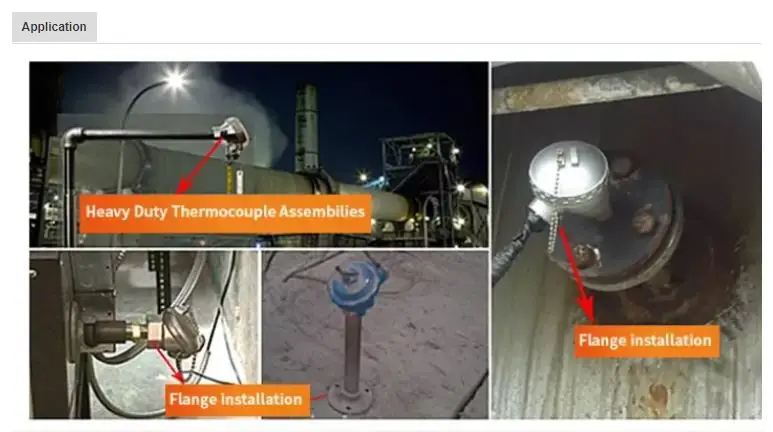

Application
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: j type thermocouple m6 screw, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 3 wire pt100 temperature sensor, Thermocouple, Temperature Sensor K Type Thermocouple, K E T PT100 RTD Thermocouple, high temperature k type thermocouple, k type temperature thermocouples
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
