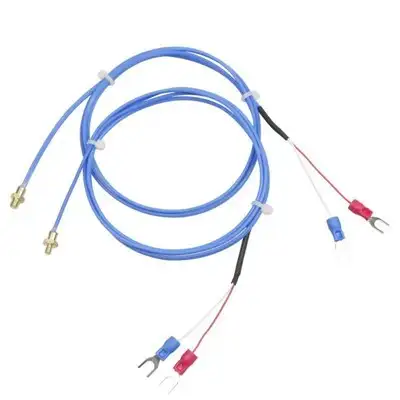

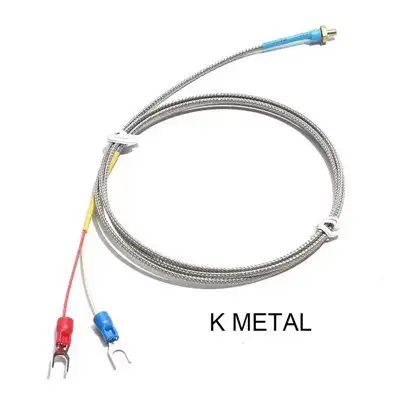

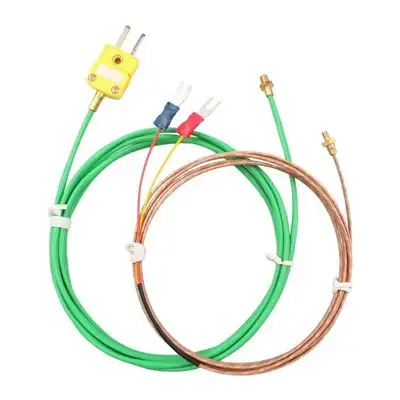

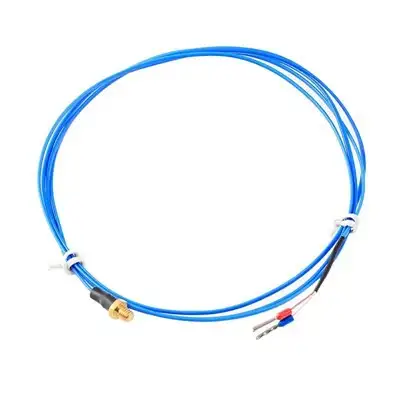

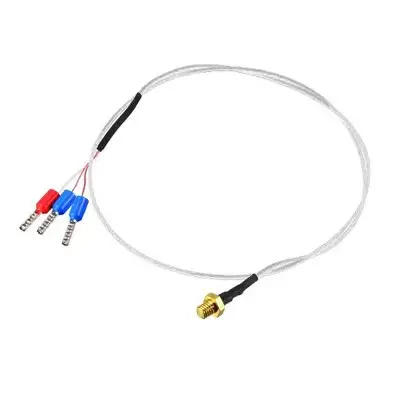

K Type Thermocouple M4 Screw
K Type Thermocouple M4 Screw by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
K Type Thermocouple M4 Screw: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For K Type Thermocouple M4 Screw, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of K Type Thermocouple M4 Screw depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Product Description
OEM ODM industrial M8 rtd E J K type high temperature sensor thermocouple m6 screw
An M3/M4 screw thermocouple is a compact temperature sensor with either an M3 (3mm) or M4 (4mm) threaded screw for easy mounting in tight spaces or small equipment. These are commonly used in electronics, industrial automation, and precision instruments where secure attachment and fast thermal response are needed.
Key Features & Differences

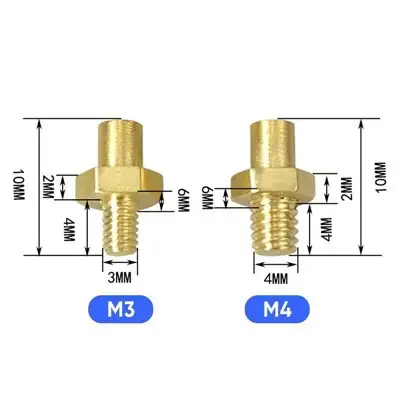

| Feature | M3 Screw Thermocouple | M4 Screw Thermocouple |
|---|---|---|
| Thread Size | 3mm diameter | 4mm diameter |
| Strength | Less robust, for low-vibration applications | More durable, better for industrial use |
| Response Time | Faster (smaller mass) | Slightly slower (larger mass) |
| Common Uses | PCBs, small electronics, drones, lab tools | Motors, extruders, CNC machines, HVAC |
| Max Temp | Depends on thermocouple type (e.g., Type K: up to 1250°C) |
Typical Applications
M3:
3D printer hotends & heated beds
Small motors & servos
Battery packs (EVs, drones)
Medical devices
M4:
Plastic injection molding
Industrial heaters & chillers
Food processing equipment
Automotive sensors
| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |
Product Advantage
1:High Precision Temperature control probe
2:Accurate measurement (imported chip),high sensitivity
3:fast response,anti-interference,Good temperature resistance
4:Protection spring,Stainless steel special plug
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
