ACCURATE TEMPERATURE SENSING
Reading Dial Capillary Thermometer
Reading Dial Capillary Thermometer by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (6)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Reading Dial Capillary Thermometer: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.

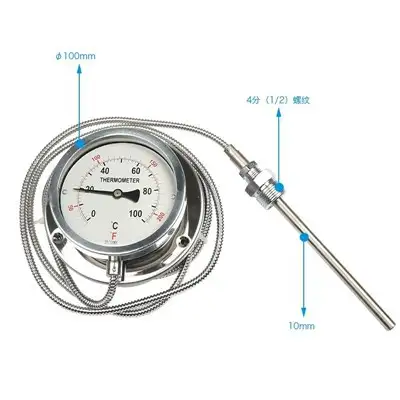

The archived configuration for Reading Dial Capillary Thermometer lists Dial Size: 4" (100mm); Stem Length: 150mm; Capillary length: 1000mm(Customized); Connection: Bottom connection, Rear flange. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Reading Dial Capillary Thermometer, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Reading Dial Capillary Thermometer depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Name | Pressure Gauge Temperature Thermometer |
|---|---|
| Dial Size | 4" (100mm) |
| Case | SS304 |
| Bezel | SS 304,crimped |
| Pointer | Aluminum |
| Stem OD | 10mm |
| Stem Length | 150mm |
| Capillary length | 1000mm(Customized) |
| Connection | Bottom connection, Rear flange |
| Thread | G1/2 (customized) |
ARCHIVED PRODUCT INFORMATION
Description
|
Name |
Pressure Gauge Temperature Thermometer |
|
Dial Size |
4" (100mm) |
|
Case |
SS304 |
|
Bezel |
SS 304,crimped |
|
Pointer |
Aluminum |
|
Stem OD |
10mm |
|
Stem Length |
150mm |
|
Capillary length |
1000mm(Customized) |
|
Connection |
Bottom connection, Rear flange |
|
Thread |
G1/2 (customized) |
|
Accuracy |
±2% |
|
Brand |
QualityWell (OEM & ODM are welcome.) |
|
Oil filled |
Yes |
|
Packaging |
Shakeproof |
|
Waterproof |
IP55 |
vibration resistance, high sensitivity, long service life, and diverse installation methods, it is widely used for detection and control in production processes such as petrochemicals, machinery, pharmaceuticals, food, and ships.
Technical parameter
Accuracy level: 2.5%

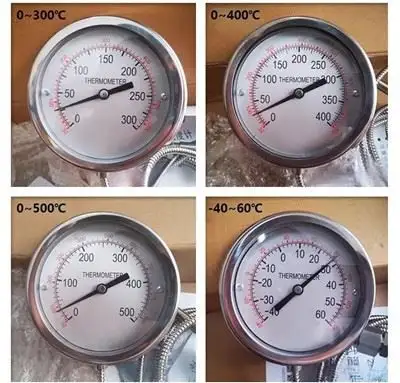

Temperature measurement range: 0~600 ℃, each range is optional
Surface diameter: ± 100
Dial material: stainless steel
Dial direction: axial (with edge), radial (with edge)
Connecting thread: M27 × 2 G1/2 ", etc

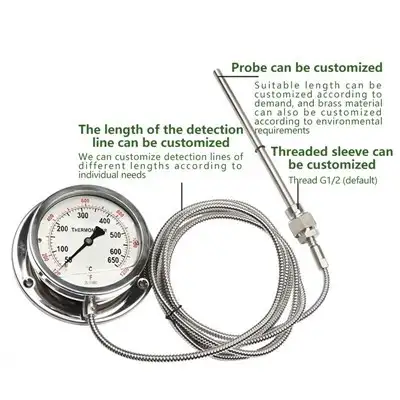

Temperature bulb size: 10mm x 150mm (appearance and capillary length can be customized).
Warm bulb material: stainless steel
Fine hair and soft tube length: 2-20M
Capillary tube material: stainless steel
Operational principle
The principle is based on the relationship between the saturated vapor pressure and temperature of the evaporated liquid in a closed temperature measurement system, and temperature measurement is carried out. When the temperature change is felt by the temperature bulb, the saturated vapor in the closed system generates corresponding pressure, causing a change in the curvature of the elastic element, causing displacement at its free end. The displacement is then amplified by a gear amplification mechanism to become an indicator value. This type of thermometer has the characteristics of small temperature bulb volume, fast response speed, high sensitivity, and intuitive reading. It almost combines all the advantages of glass rod thermometers, bimetallic thermometers, and gas pressure thermometers. It can be manufactured into an earthquake resistant and anti-corrosion type, and can achieve remote transmission of contact signals, thermal resistance signals, 0-10mA or 4-20mA signals.
It is currently the most widely used and comprehensive mechanical temperature measuring instrument in terms of performance.
Product application
Pressure type thermometers are suitable for measuring the temperature of various media that do not corrode copper in industrial settings. If the media has a corrosive effect, a corrosion-resistant type should be selected.
Pressure thermometers are widely used in the mechanical, textile, chemical, pharmaceutical, and food industries for temperature measurement and control during production processes.
The anti-corrosion pressure type thermometer is made of all stainless steel material and is suitable for temperature measurement of neutral corrosive liquids and gas media.
bimetallic thermometer is a type of temperature sensor that uses the principle of thermal expansion of metals to measure temperature. It consists of a bimetallic strip, which is made by bonding two different metals with different coefficients of thermal expansion. When the temperature changes, the strip bends due to the unequal expansion of the two metals, and this mechanical movement is converted into a temperature reading.
How It Works:
When the temperature increases, the bimetallic strip bends toward the metal with the lower thermal expansion rate.
When the temperature decreases, the strip bends in the opposite direction.
This bending motion is mechanically linked to a pointer, which moves across the scale to indicate the temperature.
Applications:
Industrial Processes: Used in HVAC systems, refineries, and manufacturing plants.
Food Industry: Monitoring temperatures in cooking, refrigeration, and storage.
Automotive: Measuring engine or exhaust temperatures.
Home Appliances: Ovens, thermostats, and water heaters.
