ACCURATE TEMPERATURE SENSING
Stainless Steel K Type RTD Screw Thread Thermocouple
Stainless Steel K Type RTD Screw Thread Thermocouple by LICHENGDA. RTD wiring and insertion geometry, configuration details and made-to-drawing quotation for repeatable process-temperature measurement.
Product image gallery (7)
PRODUCT ENGINEERING
RTD wiring and insertion geometry
Stainless Steel K Type RTD Screw Thread Thermocouple: Match the named platinum resistance sensor to the controller’s configured input. Confirm the resistance designation, accuracy class and 2-, 3- or 4-wire arrangement before connecting the probe.
Insertion depth, probe diameter and mounting contact affect response and measurement error. Route the signal cable away from heater power wiring and review cable resistance for the selected connection scheme.
For Stainless Steel K Type RTD Screw Thread Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Repeatable process-temperature measurement. The final suitability of Stainless Steel K Type RTD Screw Thread Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
thermocouple as measure temperature sensor, and usually display meter, recording meter and
electronic regulator, at the same time, also can be used as a prefabricated thermocouple temperature
sensing element, it can be directly measured from 0 ℃ ~ 1250 ℃ in the process of various production
within the scope of the liquid, steam and gas medium, as well as the temperature of the solid surface.
| Size | Type | length | Temperature | Material | thread |
| WRN-130 WRN-230 |
K | L=300 | 0-1200℃ | SS304 | M27*2 |
| L=400 | |||||
| L=500 | |||||
| L=600 | |||||
| L=700 | |||||
| L=800 | |||||
| L=900 |
Product advantage

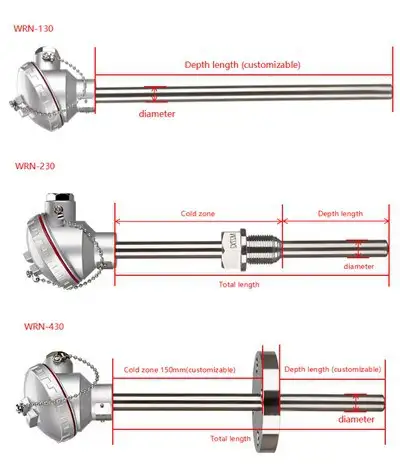

1:Size: WRN-130 (Without thread) ,WRN-230 (M27*2 thread)
2:Tube diameter:16mm (6-20mm diameter can be customized)
3:Wire diameter:1.5mm (Stander size,can be customized)
4:Stainless steel protective tube:SS304
5:Test temperature: 0-1300 ℃
