ACCURATE TEMPERATURE SENSING

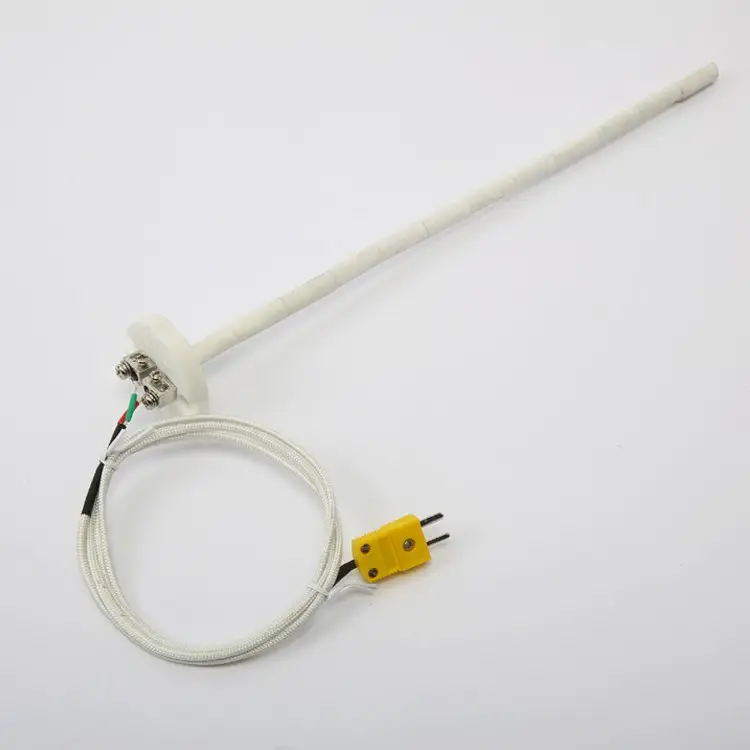

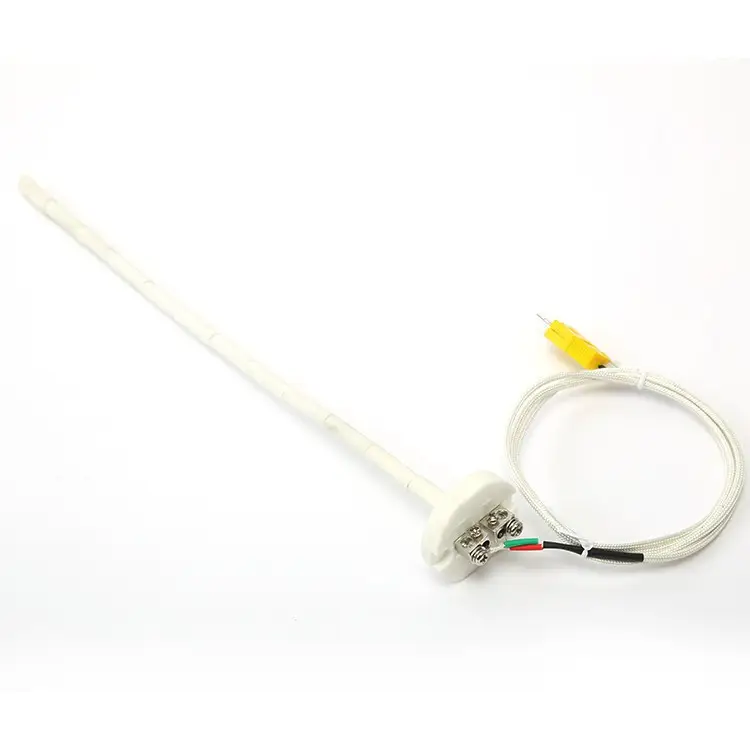

Temperature Sensor K Type Mi Thermocouple With Plug
Temperature Sensor K Type Mi Thermocouple With Plug by LICHENGDA. Connector polarity and mating compatibility, configuration details and made-to-drawing quotation for temperature-signal cable connections.
Product image gallery (6)
PRODUCT ENGINEERING
Connector polarity and mating compatibility

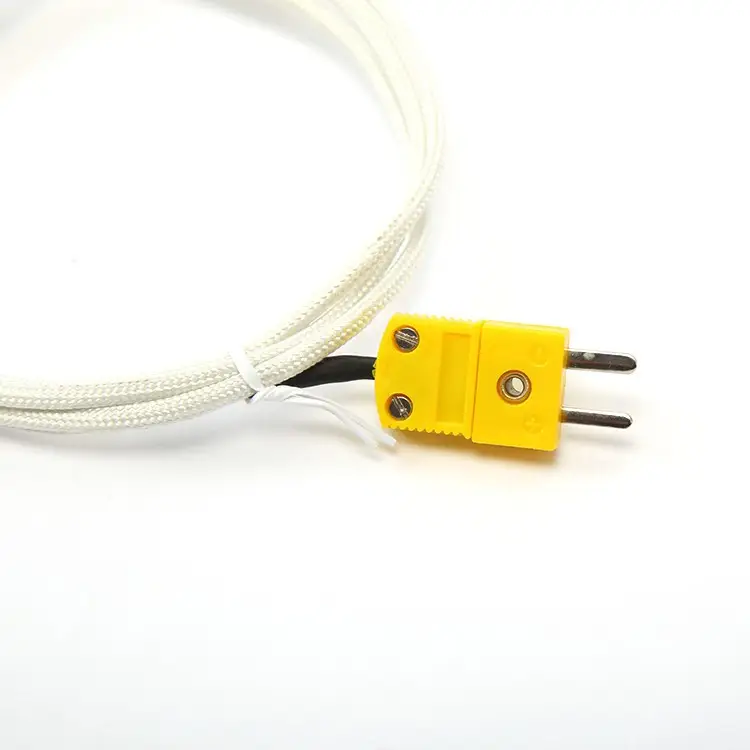

Temperature Sensor K Type Mi Thermocouple With Plug: Specify the sensor alloy or RTD wiring scheme, plug size and mating part. A thermocouple connector must preserve polarity and use contacts compatible with the sensing circuit.

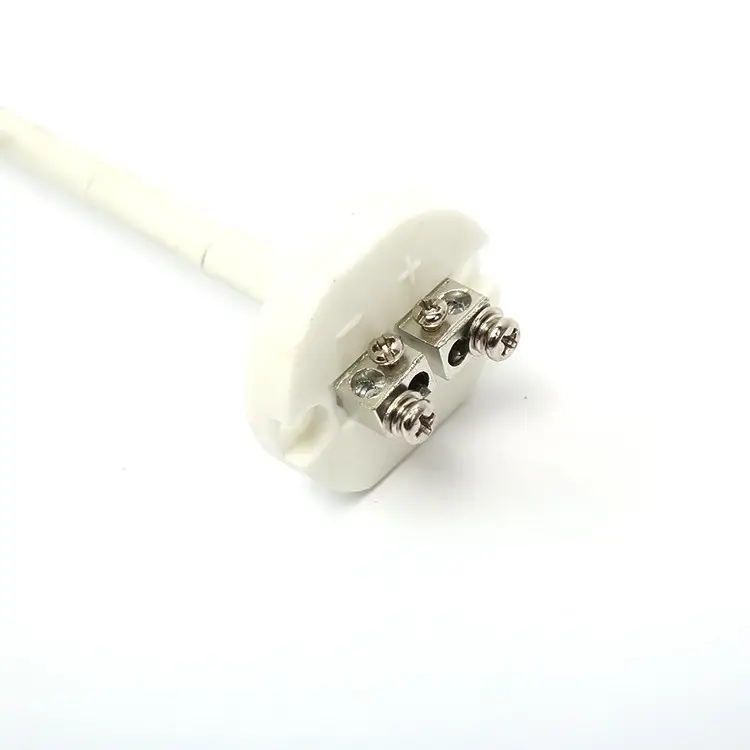

Check terminal wire gauge, strain relief and local ambient temperature. Confirm that the chosen connector fits the controller and extension cable without introducing an unintended junction.
The archived configuration for Temperature Sensor K Type Mi Thermocouple With Plug lists wire diameter: 1.2mm, 1.5 mm, 2mm, 2.5mm, 3mm, 3.2mm or customized; Material: Ceramic Bead; length: 200mm, 250mm, 300mm, 350mm, 400mm or customized. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Temperature Sensor K Type Mi Thermocouple With Plug, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Temperature-signal cable connections. The final suitability of Temperature Sensor K Type Mi Thermocouple With Plug depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| type | k type |
|---|---|
| Temperature range | 0-1300℃ |
| wire diameter | 1.2mm, 1.5 mm, 2mm, 2.5mm, 3mm, 3.2mm or customized |
| Material | Ceramic Bead |
| application | Muffle furnace, resistance furnace, annealing furnace, beacon furnace |
| length | 200mm, 250mm, 300mm, 350mm, 400mm or customized |
ARCHIVED PRODUCT INFORMATION
Description
type | k type |
Temperature range | 0-1300℃ |
wire diameter | 1.2mm, 1.5 mm, 2mm, 2.5mm, 3mm, 3.2mm or customized |
Material | Ceramic Bead |
application | Muffle furnace, resistance furnace, annealing furnace, beacon furnace |
length | 200mm, 250mm, 300mm, 350mm, 400mm or customized |
Product Advantage
1. Simple assembly and easy replacement.
2. Assembled temperature sensing element, good shock resistance.
3. High measurement accuracy.
4. Large measurement range (-200 ° C to 1300 ° C, under special conditions -270 ° C to 2800 ° C).
5. Fast thermal response time.
6, high mechanical strength, good pressure resistance.
7. Long service life.
8: OEM Accepted.
Hot Tags: temperature sensor k type mi thermocouple with plug, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, j type screw industry thermocouple, 3 wire pt100 temperature sensor, Stainless Steel PT100 Rtd Thermocouple, Thermocouple, Temperature Sensor K Type Thermocouple, K Type Bayonet Spring Thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
