ACCURATE TEMPERATURE SENSING
Thermo Couple Type M6
Thermo Couple Type M6 by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Thermo Couple Type M6: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Thermo Couple Type M6 lists Cable material: Shielded wire,Fiberglass, PTFE, silicon; Thread size: M5/M6/M8; Thread size: M6*1/ M6*1.25. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermo Couple Type M6, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Thermo Couple Type M6 depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

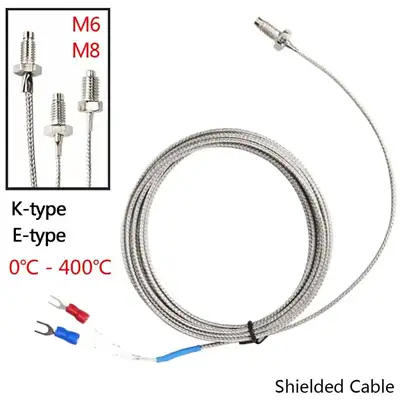

| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
|---|---|
| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |
ARCHIVED PRODUCT INFORMATION
Description
Product Description
OEM ODM industrial M8 rtd E J K type high temperature sensor thermocouple m6 screw
| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |
Key Features of Thermocouples:
Wide Temperature Range: Thermocouples can measure a broad range of temperatures, from cryogenic levels to over 2000°C, depending on the type.
Durability: They are robust and can withstand harsh environments, including high pressure, vibration, and corrosive conditions.
Fast Response: Due to their small size and low thermal mass, thermocouples respond quickly to temperature changes.
Cost-Effective: They are relatively inexpensive compared to other temperature sensors.
Key Features & Differences
| Feature | M3 Screw Thermocouple | M4 Screw Thermocouple |
|---|---|---|
| Thread Size | 3mm diameter | 4mm diameter |
| Strength | Less robust, for low-vibration applications | More durable, better for industrial use |
| Response Time | Faster (smaller mass) | Slightly slower (larger mass) |
| Common Uses | PCBs, small electronics, drones, lab tools | Motors, extruders, CNC machines, HVAC |
| Max Temp | Depends on thermocouple type (e.g., Type K: up to 1250°C) |

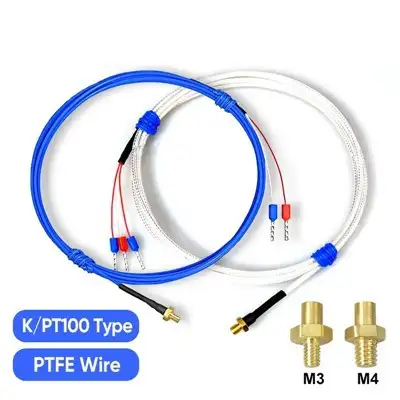

An M3/M4 screw thermocouple is a compact temperature sensor with either an M3 (3mm) or M4 (4mm) threaded screw for easy mounting in tight spaces or small equipment. These are commonly used in electronics, industrial automation, and precision instruments where secure attachment and fast thermal response are needed.
Typical Applications
M3:
3D printer hotends & heated beds
Small motors & servos
Battery packs (EVs, drones)
Medical devices
M4:
Plastic injection molding
Industrial heaters & chillers
Food processing equipment
Automotive sensors
Product Advantage
1:High Precision Temperature control probe
2:Accurate measurement (imported chip),high sensitivity
3:fast response,anti-interference,Good temperature resistance

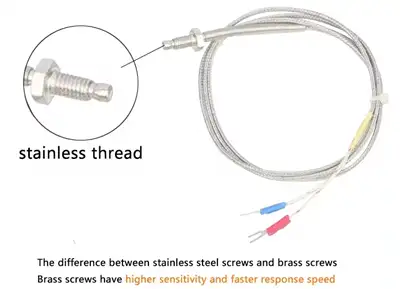

4:Protection spring,Stainless steel special plug
Types of Thermocouples:
Thermocouples are classified into different types based on the metal combinations used. Each type has a specific temperature range and application suitability:
Type K (Chromel-Alumel): Most common, suitable for a wide range of temperatures (-200°C to 1260°C).
Type J (Iron-Constantan): Used in reducing environments, range from -210°C to 1200°C.
Type T (Copper-Constantan): Ideal for cryogenic applications, range from -250°C to 400°C.
Type E (Chromel-Constantan): High output, suitable for cryogenic and moderate temperatures (-200°C to 900°C).
Type N (Nicrosil-Nisil): Stable at high temperatures, range from -270°C to 1300°C.
Type R/S (Platinum-Rhodium): Used for very high temperatures (up to 1600°C), often in laboratory settings.
Type B (Platinum-Rhodium): Suitable for extremely high temperatures (up to 1800°C).
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermo couple type m6, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, j type screw industry thermocouple, K E T PT100 RTD Thermocouple, K Type Bayonet Spring Thermocouple, K Type Temperature Sensor Handheld Thermocouple, k type temperature thermocouples, m6 rtd pt100 sensor thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
