ACCURATE TEMPERATURE SENSING
Thermocouple Temperature Sensor Pt1000
Thermocouple Temperature Sensor Pt1000 by LICHENGDA. RTD wiring and insertion geometry, configuration details and made-to-drawing quotation for repeatable process-temperature measurement.
Product image gallery (5)
PRODUCT ENGINEERING
RTD wiring and insertion geometry
Thermocouple Temperature Sensor Pt1000: Match the named platinum resistance sensor to the controller’s configured input. Confirm the resistance designation, accuracy class and 2-, 3- or 4-wire arrangement before connecting the probe.
Insertion depth, probe diameter and mounting contact affect response and measurement error. Route the signal cable away from heater power wiring and review cable resistance for the selected connection scheme.
The archived configuration for Thermocouple Temperature Sensor Pt1000 lists Lead material: PTFE wire,shielded wire,silicon wire; Probe size: 4mm, 30mm; Probe material: Seamless 304 stainless steel. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermocouple Temperature Sensor Pt1000, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Repeatable process-temperature measurement. The final suitability of Thermocouple Temperature Sensor Pt1000 depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product name | rtd temperature sensor pt100 |
|---|---|
| Number | pt100 |
| Temperature range | -50~200℃ |

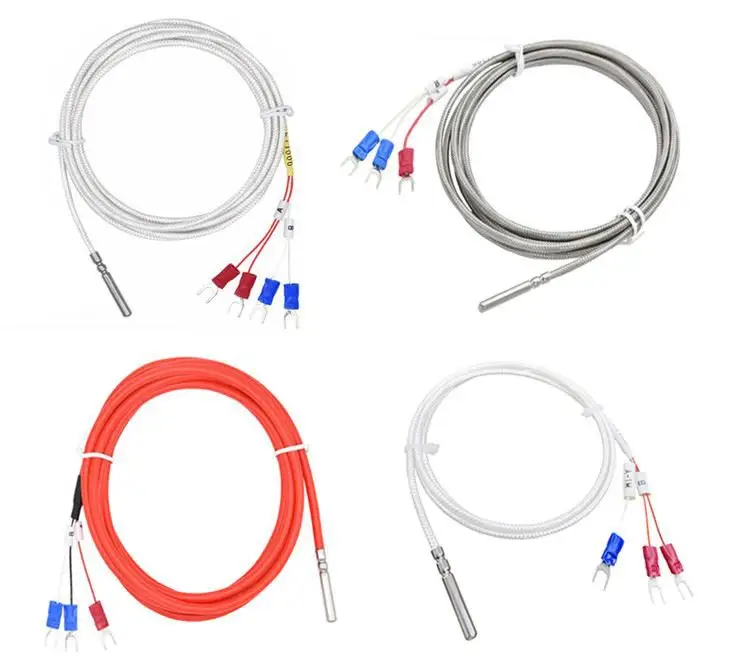

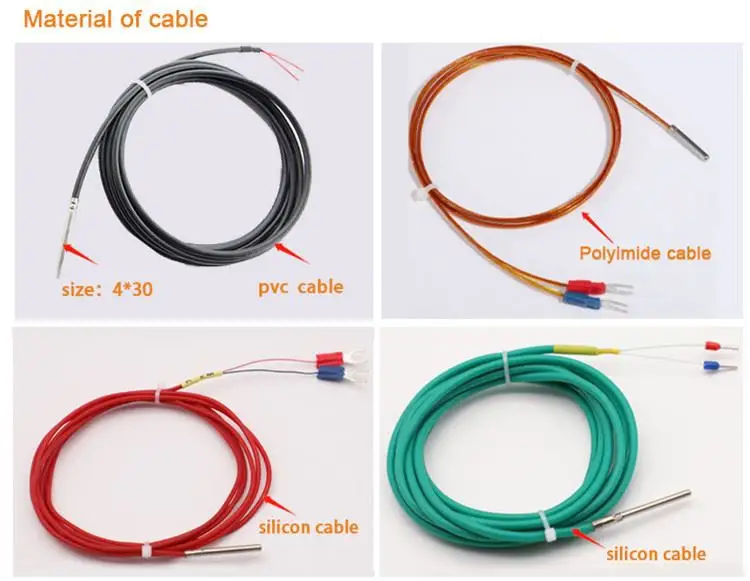

| Lead material | PTFE wire,shielded wire,silicon wire |
| Accuracy | ±1℃ |

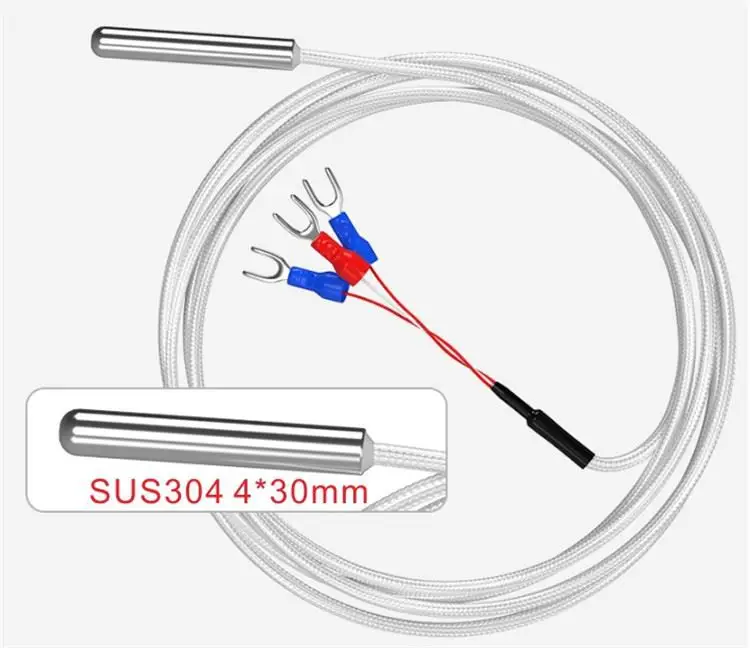

| Probe size | 4mm, 30mm |
| Probe material | Seamless 304 stainless steel |
| Resistance | Class A , Class B |
ARCHIVED PRODUCT INFORMATION
Description
The RTD is one of the most accurate temperature sensors. Not only does it provide good accuracy, it also provides excellent stability and repeatability. RTDs are relatively immune to electrical noise and therefore well suited for temperature measurement in industrial environments, especially around motors, generators and other high voltage equipment.
|
Product name |
rtd temperature sensor pt100 |
|
Number |
pt100 |
|
Temperature range |
-50~200℃ |
|
Lead material |
PTFE wire,shielded wire,silicon wire |
|
Accuracy |
±1℃ |
|
Probe size |
4mm, 30mm |
|
Probe material |
Seamless 304 stainless steel |
|
Resistance |
Class A , Class B |
Product Advantages
1:Accurate measurement (imported chip)
2:fast response, anti-interference

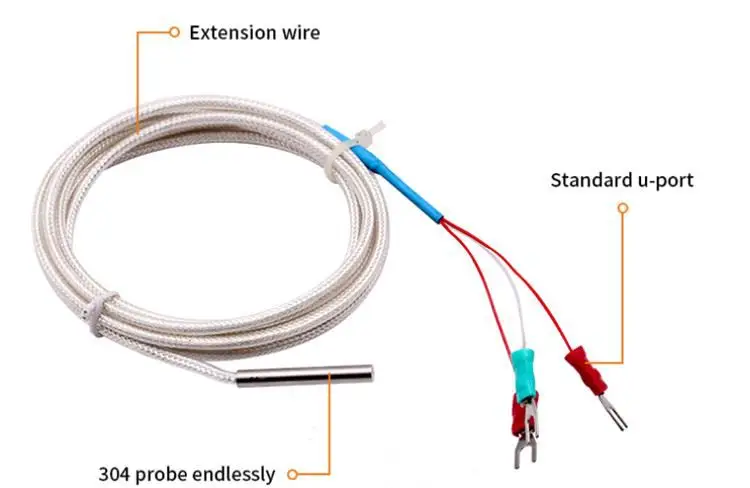

3: waterproof and corrosion resistant (304 probe endlessly)
4:Good temperature resistance ,Internal anti-interference
The PT100 typically has a resistance of 100 ohms at 0°C, and its resistance changes by approximately 0.385 ohms per degree Celsius. By measuring the resistance of the PT100, it is possible to calculate the temperature of the medium being measured.
PT100 sensors are widely used in industrial applications, such as in temperature control systems, process control systems, and laboratory equipment. They are known for their high accuracy, stability, and reliability, and can be used in a wide range of temperature ranges, from -200°C to 850°C.

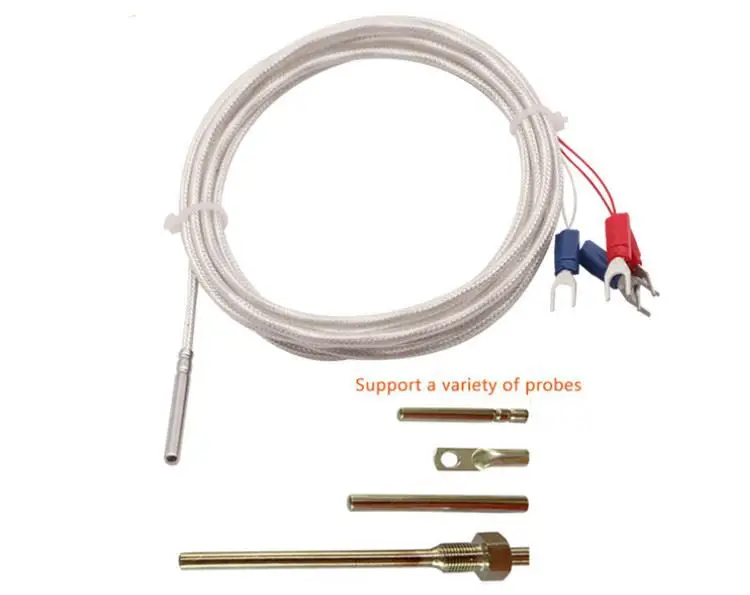

PT100 sensors can be connected to a variety of temperature controllers, data loggers, and other measurement devices, and are available in a variety of configurations, such as surface-mount sensors, immersion sensors, and probes.
Overall, the PT100 is a versatile and reliable temperature sensor that is widely used in industrial and scientific applications, offering high accuracy, stability, and a wide range of temperature measurement capabilities.
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermocouple temperature sensor pt1000, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Fuel Tank Level Float Switch Sensor, water tank pp level switch, Stainless Steel PT100 Rtd Thermocouple, PT100 Thermocouple Temperature Sensor, Water Immersion Heater Element, 300w Ceramic Igniter For Wood
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
