ACCURATE TEMPERATURE SENSING
Thermocouple Type K Ceramic
Thermocouple Type K Ceramic by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.

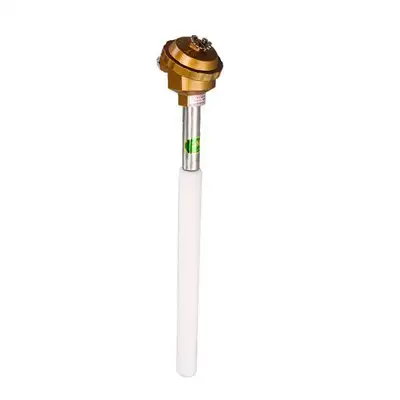

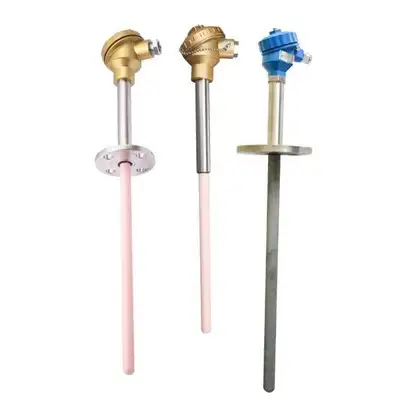

Product image gallery (3)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Thermocouple Type K Ceramic: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For Thermocouple Type K Ceramic, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Thermocouple Type K Ceramic depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Product Description
A platinum rhodium thermocouple is a type of temperature sensor commonly used in high-temperature applications. It consists of two wires, one made of platinum and the other of an alloy of platinum and rhodium. The combination of these materials allows the thermocouple to accurately measure high temperatures, up to around 1800°C (3272°F). The ratio of platinum to rhodium in the wires determines the temperature range over which the thermocouple can operate effectively. Platinum rhodium thermocouples are known for their accuracy, stability, and durability in harsh environments. They are used in industries such as metallurgy, aerospace, and manufacturing, where precise temperature control is essential.
| Thermocouple | Length | Insertion Depth | Graduation | Thermometric | Specification | Thermal response | |
| category | 300 | 150 | mark | scope | Diam(mm) | Protection tube material | Time T (s) |
| Single | 350 | 200 | S/ R /B/ K | 0~1800C | Φ16 |
Corundum material |
<150 |
| Pt Rh30-Pt Rh6 | 400 | 250 | Φ25 | <360 | |||
| Double | 450 | 300 | Φ16 | <150 | |||
| PtRh 30-Pt Rh6 | 550 | 400 | Φ25 | <360 | |||
| single Pt Rh 10-Pt | 650 | 500 | Φ16 | <150 | |||
| 900 | 750 | Φ25 | <360 | ||||
| Double Pt Rh10-Pt | 1150 | 1000 | Φ16 | <150 | |||
| 1250 | 1100 | Φ25 | <360 | ||||
Product Advantage
1:High temperature resistant ceramic base ,99% corundum tube
2: imported chip ,Micro Welding Technology
3: the installation method can be customized,degrees fast response speed the installation
4: High accuracy,High quality temperature measuring wire
Package
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermocouple type k ceramic, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, pt100 temperature sensor 3 wires, 3 wire pt100 temperature sensor, K Type Bayonet Spring Thermocouple, K Type Temperature Sensor Handheld Thermocouple, PT100 E K Type Thermocouple, K E T PT100 RTD Thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
