ACCURATE TEMPERATURE SENSING
Thermometers Digital
Thermometers Digital by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (8)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Thermometers Digital: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Thermometers Digital lists resolving power: (-100°~-200°)1℃/℉;. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermometers Digital, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Thermometers Digital depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Measurement range | K-type:-200℃~+1372℃ |
|---|---|
| Accuracy | ±0.2%+0.7℃ |
| resolving power | (-100°~-200°)1℃/℉; |
| Temperature display | Four digit display, maximum 9999 |
| Above alarm | Default value 1300℃ |
| Low alarm | Default value -200℃ |
| ADJ compensation | -9~+9℃ |
| Sampling rate | About once per second |
| Automatic shutdown | 10 minutes (can be manually turned off) |
| Usage environment | -10-50 ° C, maximum relative humidity of 80%, indoor altitude<2000m |
ARCHIVED PRODUCT INFORMATION
Description

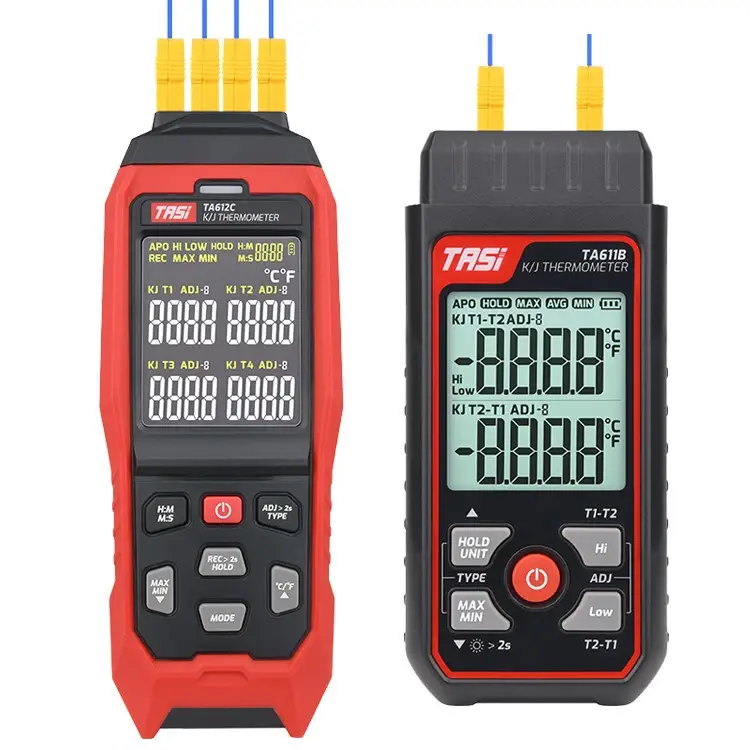

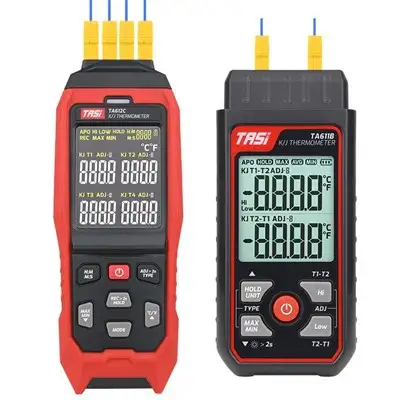

| Type | TA611A | TA611B | |
| Measurement channel | single channel | Dual channel | |
| Temperature difference measurement | - | √ | |
| Measurement range | K-type:-200℃~+1372℃ | ||
| (-328℉~+2501℉) | |||
| J-type:-200℃~+1200℃ | |||
| (-328℉~+2192℉) | |||
| Accuracy | ±0.2%+0.7℃ | ||
| resolving power | (-100°~-200°)1℃/℉; | ||
| (-99°~999.9°)0.1℃/℉; | |||
| (≥1000°)1℃/℉ | |||
| environment | range | 0~60℃ | - |
| Temperature | Accuracy | ±2℃ | - |
| Temperature display | Four digit display, maximum 9999 | ||
| Above alarm | Default value 1300℃ | ||
| Low alarm | Default value -200℃ | ||
| ADJ compensation | -9~+9℃ | ||
| Sampling rate | About once per second | ||
| Automatic shutdown | 10 minutes (can be manually turned off) | ||
| Usage environment | -10-50 ° C, maximum relative humidity of 80%, indoor altitude<2000m | ||
| Storage environment | -10-50 ° C, maximum relative humidity of 70% (remove battery) | ||
| Products size | 152x55x33mm | ||
| Display screen size | 37x41mm | ||
| power | 3x1.5VAAA(R03/LR03) | ||
| K type thermocouple | Randomly configure probe measurement range | ||
| -20℃~200℃ (Accuracy ± 2.5%) | |||
| TA611A(1 of them )TA611B(2 of them) | |||

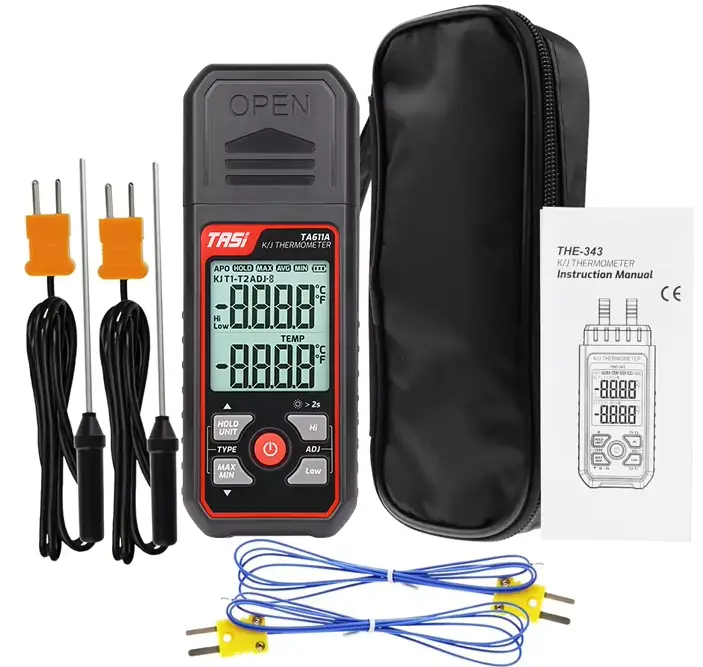

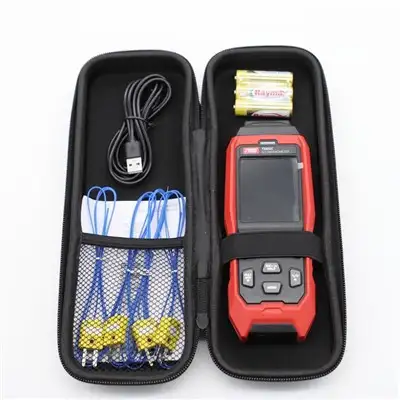

| Packaging accessories | Color box, cloth bag, instruction manual, certificate of conformity (thermocouple) TA611A * 1TA611B * 2 | ||
| Products size | 152x55x33mm | ||

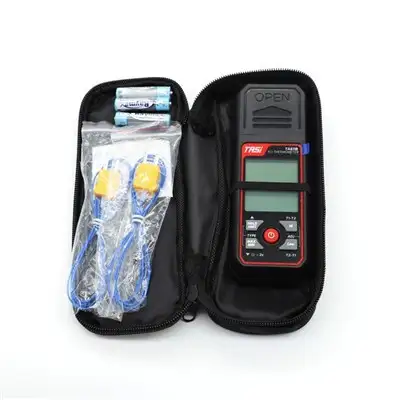

| Packaging method | Color box+cloth bag | ||
| weight | about 125g(Excluding batteries) | ||
| Packaging size | 215x90x50mm | ||
| Individual packaging weight | 260g | ||
|
Standard outer box volume (length x width x height) |
45x29x40CM | ||
| Standard packing quantity | 40set | ||
| Standard packing weight | 11kg | ||

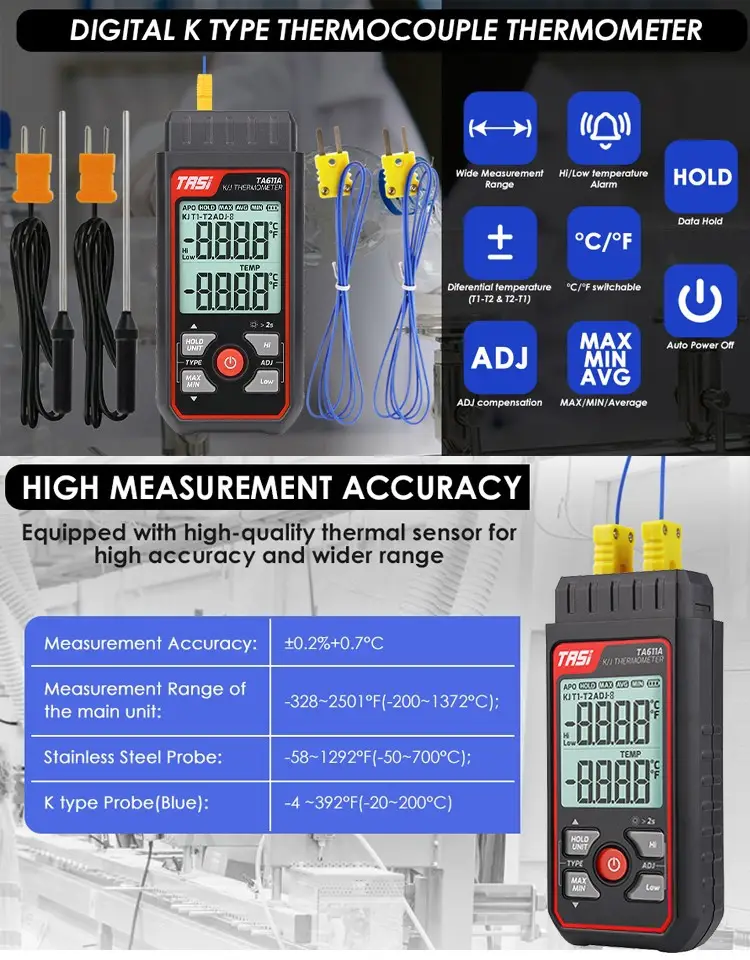

[Wide Measurement Range]The main unit measuring range is: -328~2501℉(-200~1372℃); Range of K type thermocouple(Stainless Steel):-58~1292℉(-50~700°C); Bead-type thermocouple(blue):-4~392℉(-20~200°C)

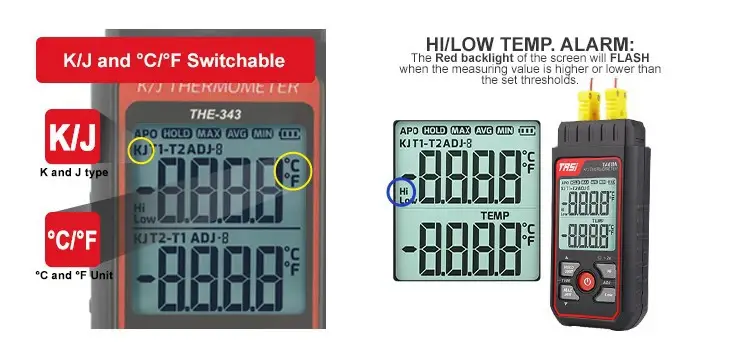

[Multi-Functional]: HD large screen display, ℉/℃ and K/J switchable, Max/Min/Average, Data Hold, Auto power-off function(can be cancelled manually)

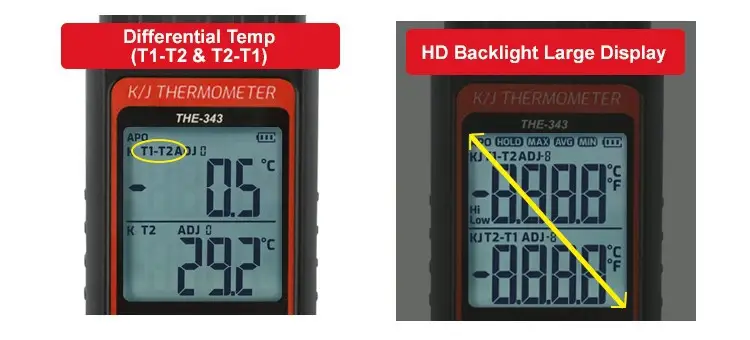

[Differential Temperature]Long press T1-T2 or T2-T1, and find the difference temperature value between T1&T2 testing samples easily

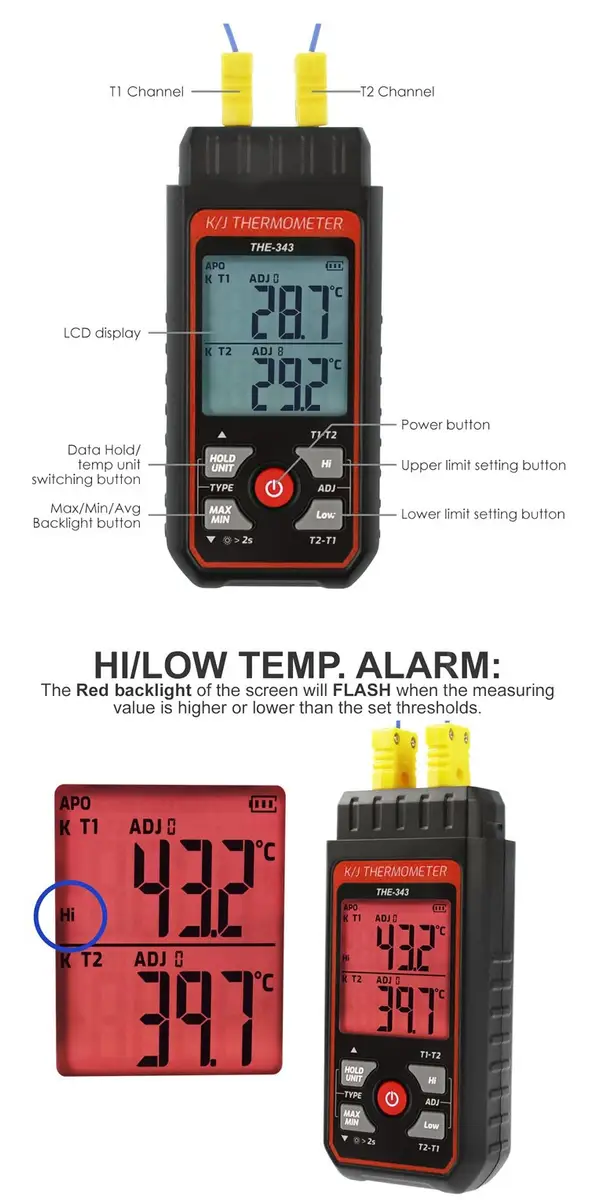

[Hi/Low Flash Alarm]Manually set the upper and lower alarm thresholds. The red backlight of the screen will flash when the testing value is higher or lower than the set thresholds

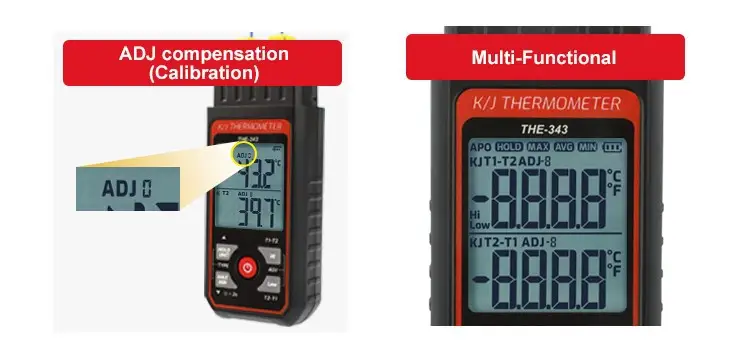

[ADJ compensation]Long press Hi and Low button together, adjust the ADJ compensation value to complete the calibration procedure, ADJ compensation range: -9~9℃

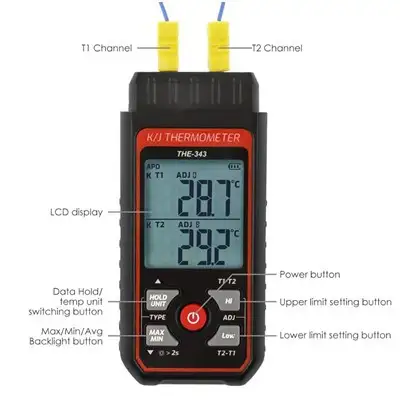

1:Temperature ℉/℃ and K/J type Switchable Long ,press [UNIT] button to switch temperature unit ℉/℃
Press [HOLD] and [MAX/MIN] button together to switch K/J type
2:Hi/Low Temperature Flash Alarm ,Press [Hi] or [Low] button to manually adjust the alarm threshold, when the testing value is higher or lower than the set thresholds, the red backlight of the screen will flash.
3:Differential Temperature(T1-T2 & T2-T1) Long press [T1-T2] or [T2-T1] button, and find the difference temperature value between T1&T2 testing samples.
4:HD Large Screen with back light This thermocouple thermometer equipped with HD Large screen, which will see the temperature reading clearly.
5:ADJ Compensation Long press [Hi] and [Low] button together adjust the ADJ compensation value to complete the calibration procedure
6:Multi-Functional This K type thermometer has multi-functions, DATA HOLD, temperature unit ℉/℃ & K/J type switch, HI/Low Flash Alarm, MAX/MIN/AVG, Differential Temp. Auto power off.
