ACCURATE TEMPERATURE SENSING

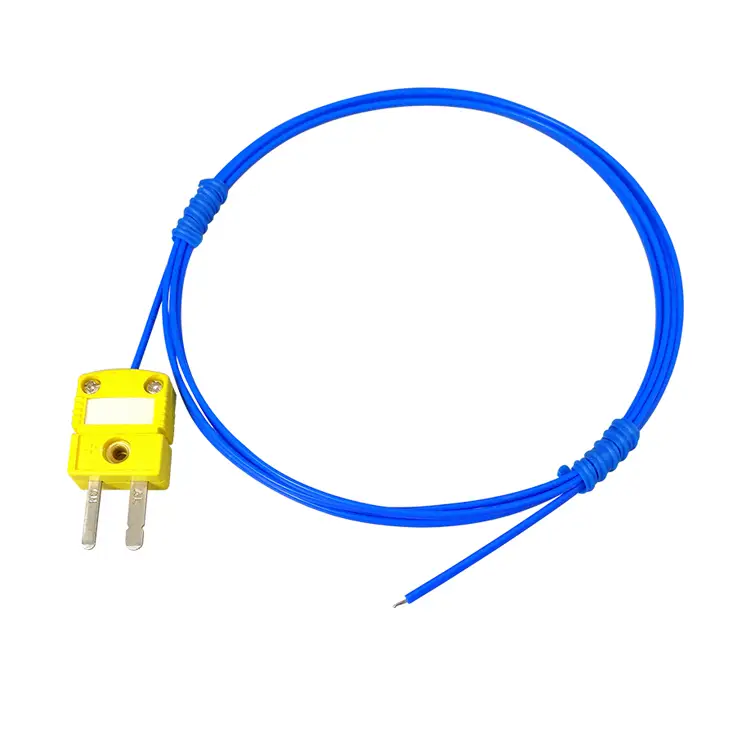

Type K Thermocouple Exposed
Type K Thermocouple Exposed by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Type K Thermocouple Exposed: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Type K Thermocouple Exposed lists tube diameter: customized; Stainless steel material: Default 304 stainless steel ,customized 2520/3039/316. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Type K Thermocouple Exposed, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Type K Thermocouple Exposed depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| tube diameter | customized |
|---|---|
| type | K ,J, E, T |
| Wiring terminal | 2 wire ,3 wire ,4 wire |
| Stainless steel material | Default 304 stainless steel ,customized 2520/3039/316 |
ARCHIVED PRODUCT INFORMATION
Description
Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.
|
tube diameter |
customized |
|
type |
K ,J, E, T |
|
Wiring terminal |
2 wire ,3 wire ,4 wire |
|
Stainless steel material |
Default 304 stainless steel ,customized 2520/3039/316 |

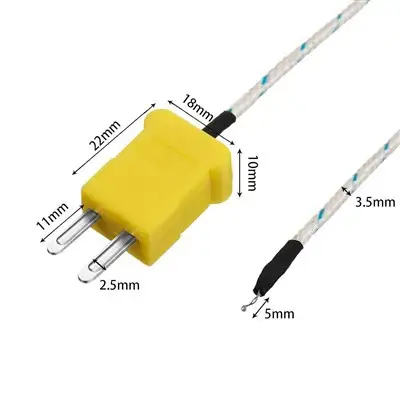

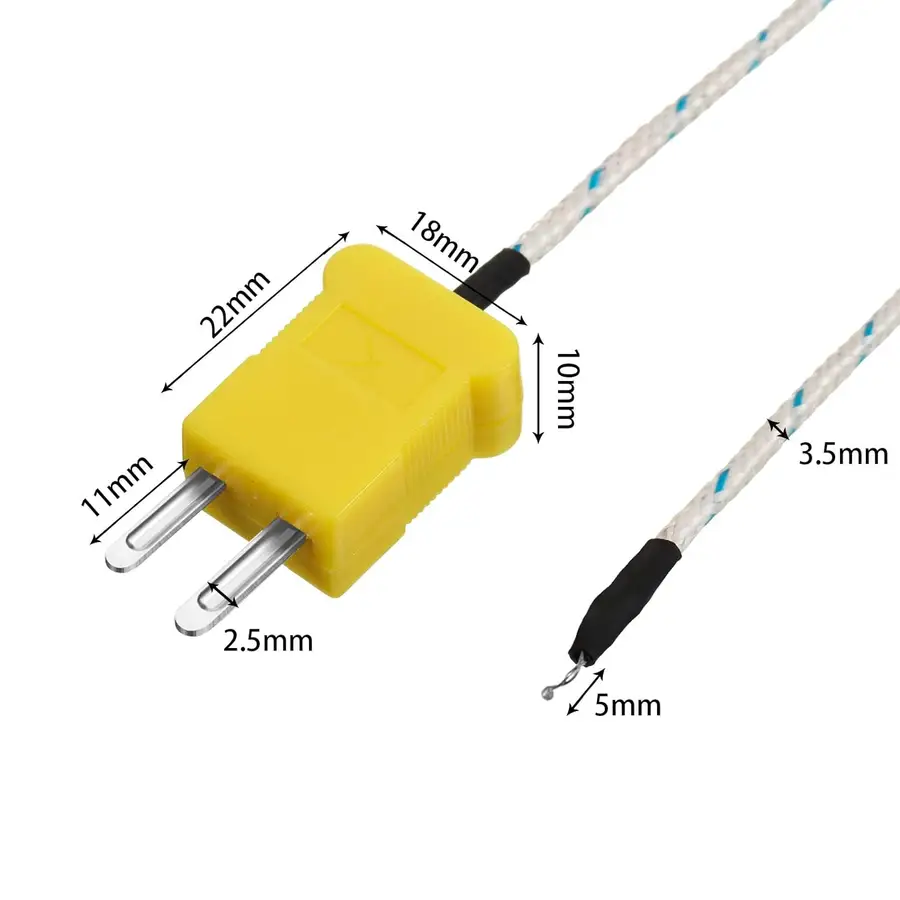

Measurement range: the measure range of the temperature sensing line is -58 to 752 °F (-50 to 400 °C); And the probe sensor can effect in 5 second with the accuracy degree 0.025 or 0.075; The interface form is flat plug-in

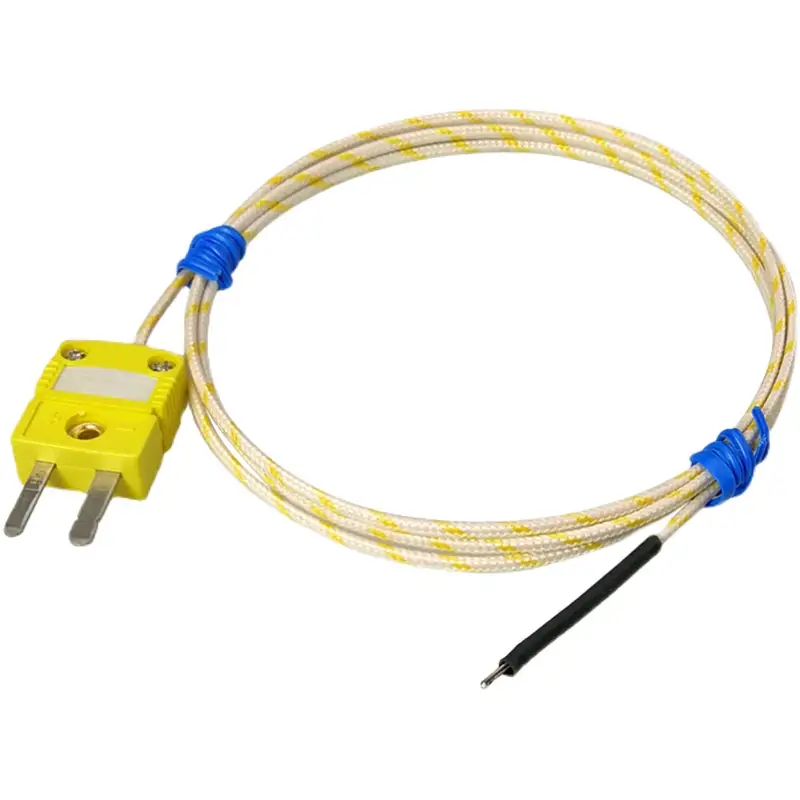

Wide Applications: for general purpose temperature applications, the k type mini-connector is fastly response that is suitable for rapid measurement of air and gas, not suitable for liquid measurement; Allows forming and bending of the thermocouple, so you don't need to worry about the risk of cracking
Universal compatiblity: the thermocouple wires can compatible with most k type temperature measuring instruments, they can compatible with TM902C and TES1310

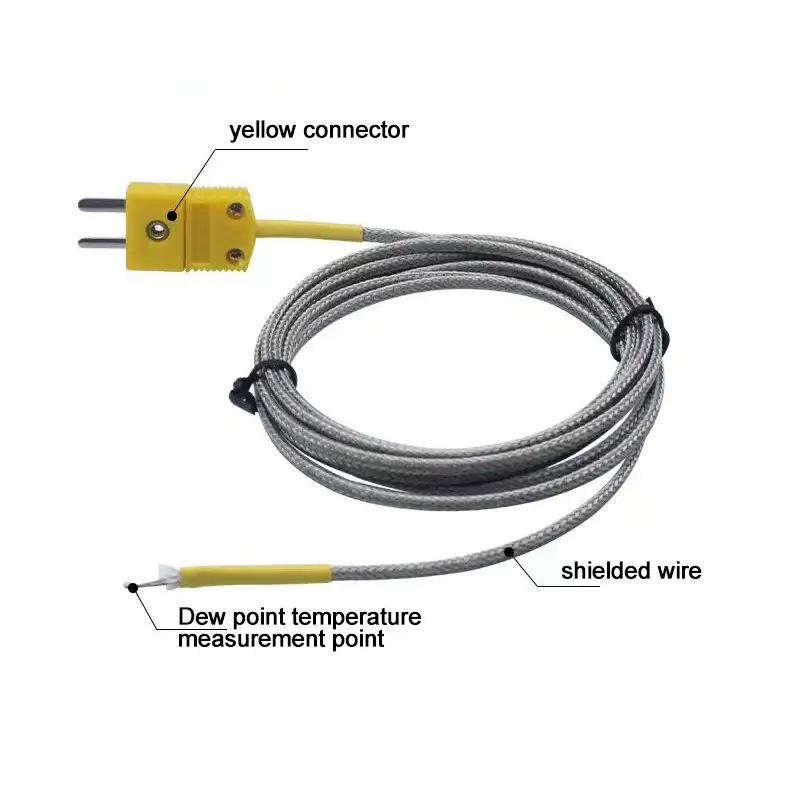

Good insulation : the k type probe sensor is made of the fiberglass, which has good insulation, strong heat resistance and strong tensile strength
Product Advantage
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire
3:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
4:High Precision Temperature control probe
5:Quick response,OEM Accepted
