ACCURATE TEMPERATURE SENSING
Type K Thermocouples
Type K Thermocouples by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Type K Thermocouples: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Type K Thermocouples lists tube diameter: min 1mm,Default 5mm; Thread size: M8*1.25 or customized; Spring length: 70mm; Stainless steel material: Default 304 stainless steel ,customized 2520/3039/316. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Type K Thermocouples, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Type K Thermocouples depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| tube diameter | min 1mm,Default 5mm |
|---|---|
| K type | 0-1250℃ |
| E type | 0-400℃ |
| PT100 | 0-500℃ |

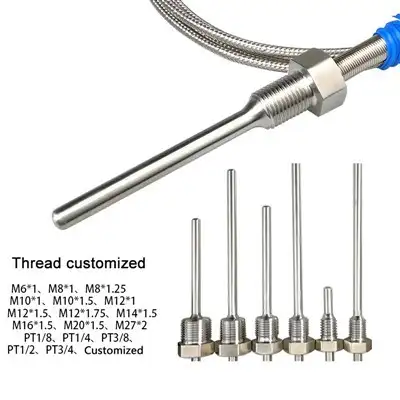

| Thread size | M8*1.25 or customized |
| Spring length | 70mm |

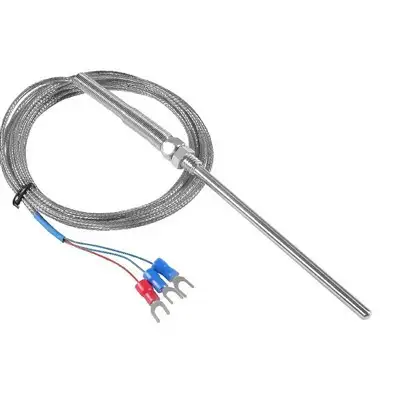

| Wiring terminal | 2 wire ,3 wire ,4 wire |
| Stainless steel material | Default 304 stainless steel ,customized 2520/3039/316 |
ARCHIVED PRODUCT INFORMATION
Description
Product Description

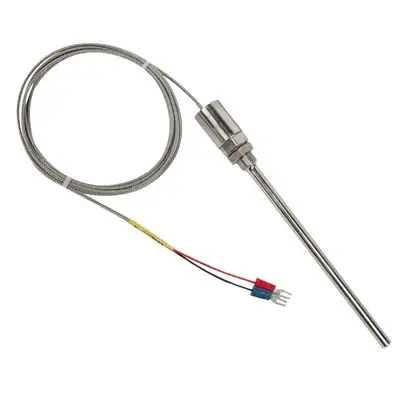

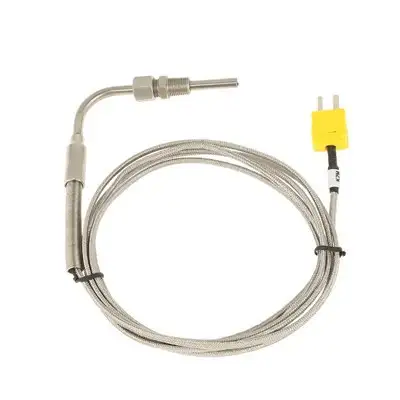

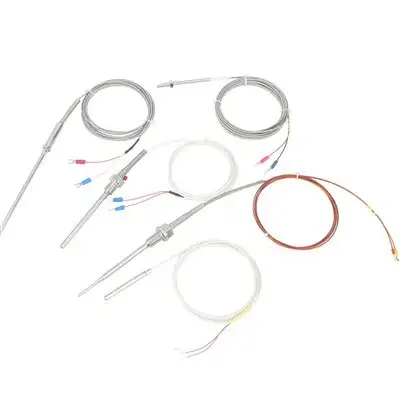

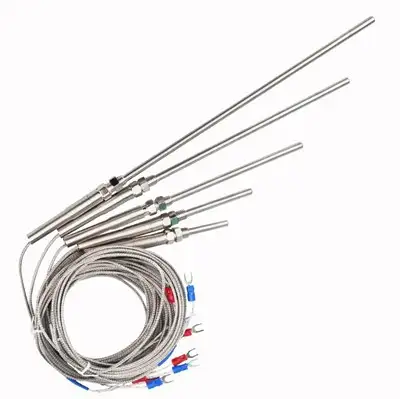

china manufacture stainless steel probe high temperature sensor thermocouple k-type
|
tube diameter |
min 1mm,Default 5mm |
|
K type |
0-1250℃ |
|
E type |
0-400℃ |
|
PT100 |
0-500℃ |
|
Thread size |
M8*1.25 or customized |
|
Spring length |
70mm |
|
Wiring terminal |
2 wire ,3 wire ,4 wire |
|
Stainless steel material |
Default 304 stainless steel ,customized 2520/3039/316 |
Product Advantage
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire
3:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
Product Advantage
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire
3:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
