1500w Heater Element
1500w Heater Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (10)
PRODUCT ENGINEERING
Formed geometry and sheath loading
1500w Heater Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For 1500w Heater Element, use the listed 1500w as catalog identifiers and confirm the complete electrical and dimensional combination before calculating current, selecting a supply or fixing the mounting pattern.
For 1500w Heater Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 1500w |
|---|
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of 1500w Heater Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 220V 3KW | 210mm |
|---|---|
| 220V 6KW | 250mm |
| 220V 9KW | 300mm |
| 220V 12KW | 350mm |
| 220V 15KW | 600mm |
ARCHIVED PRODUCT INFORMATION
Description

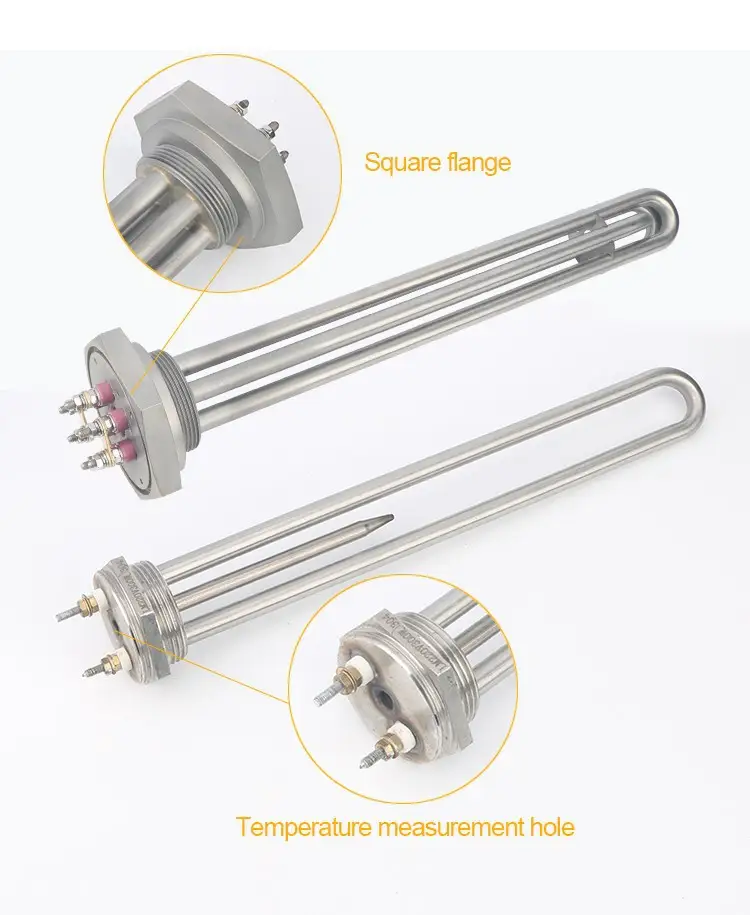

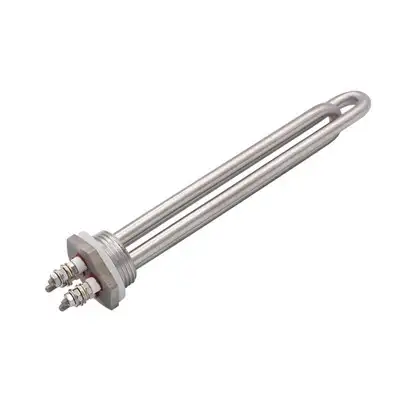

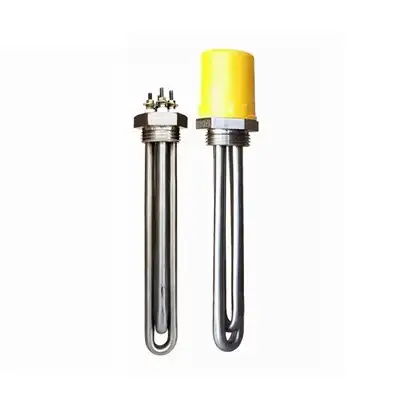

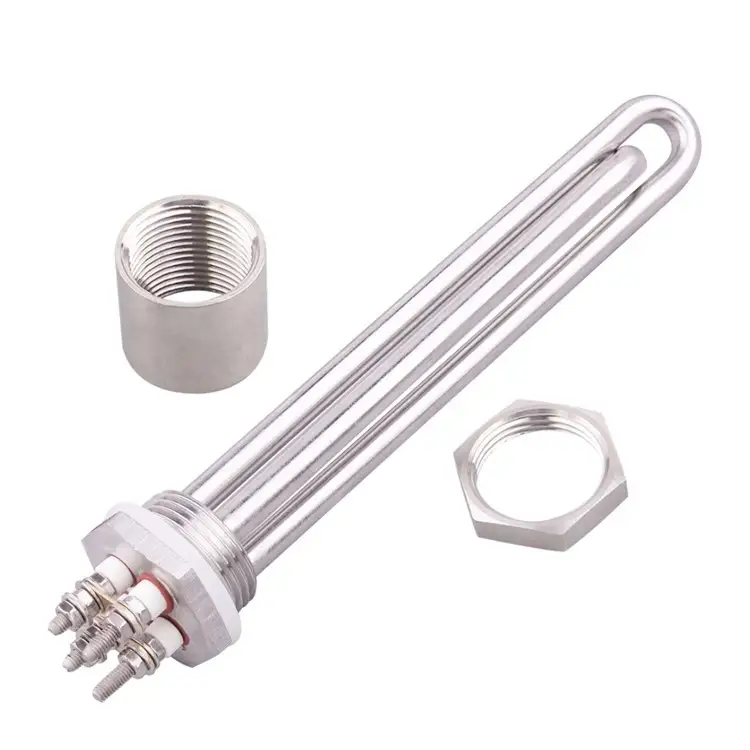

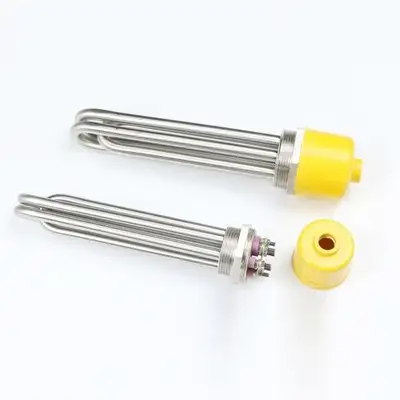

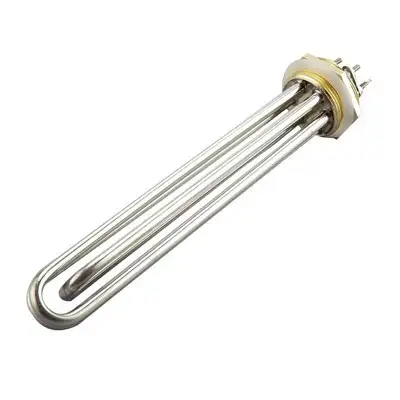

Screw Plug Immersion Heaters are screwed directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling. Sizes of screw plug heaters are available with 1", 1-1/4", 1-1/2", 2", 2-1/2" pipe threads. A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials,terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.
| Voltage/Power | Tube length |
DN40( Dia 47mm) DN50( Dia 58mm) |
| 220V 3KW | 210mm | |
| 380V 3KW | ||
| 220V 6KW | 250mm | |
| 380V 6KW | ||
| 220V 9KW | 300mm | |
| 380V 9KW | ||
| 220V 12KW | 350mm | |
| 380V 12KW | ||
| 220V 15KW | 600mm | |
| 380V 15KW |
immersion heateris an electric heating element that is designed to be immersed in a liquid, such as water or oil, to heat it up. It is typically used in household water heating systems, such as in hot water tanks or boilers, or in industrial processes where liquids need to be heated for various purposes.
The immersion heater consists of a heating element, usually made of a metal alloy such as copper or stainless steel, which is insulated from the surrounding liquid by a sheath or tube made of a material that is resistant to corrosion and heat. The heating element is connected to an electrical power supply via a cable, and when the power is switched on, the element heats up and begins to transfer heat to the surrounding liquid.
Immersion heaters are available in a variety of sizes and power ratings, depending on the application requirements. They are typically controlled by a thermostat or a temperature sensor, which monitors the temperature of the liquid and switches the heater on or off to maintain the desired temperature.
Immersion heaters are easy to install and maintain, and they are a popular choice for heating water in households and in industrial processes where a continuous supply of hot water is required. However, they can be expensive to run if used continuously, and care should be taken to ensure that they are properly installed and used in a safe manner to avoid the risk of electric shock or fire.
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe,
corrosion and rust resistance
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe,
corrosion and rust resistance
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: 1500w heater element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Stainless Steel Industrial Sauna Heat Tube, Tubular Air Finned Heater Element, Electric Water Boiler Heating Element, Stainless Steel Electric Coil Tubular Heater, Water Tubular Brass Copper Heating Element, Electric Industrial Toaster Oven Heating Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
