Fin Heater Element
Fin Heater Element by LICHENGDA. Airflow and fin clearance, configuration details and made-to-drawing quotation for air ducts, dryers and equipment enclosures.
Product image gallery (7)
PRODUCT ENGINEERING
Airflow and fin clearance
Fin Heater Element: Fins transfer heat to passing air. State the air speed, inlet temperature and duct dimensions before selecting surface loading; a wattage alone does not establish the allowable air temperature rise.
Keep fins clear of cables and combustible material. Review fan-failure interlocking and place the temperature limit where reduced airflow will be detected.
For Fin Heater Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Fin Heater Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Air ducts, dryers and equipment enclosures. The final suitability of Fin Heater Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Finned heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating. Overall, finned heaters are a cost-effective and reliable solution for a wide range of heating applications, offering high thermal efficiency, easy installation and maintenance, and a high degree of customization to meet specific application requirements.
Stock size

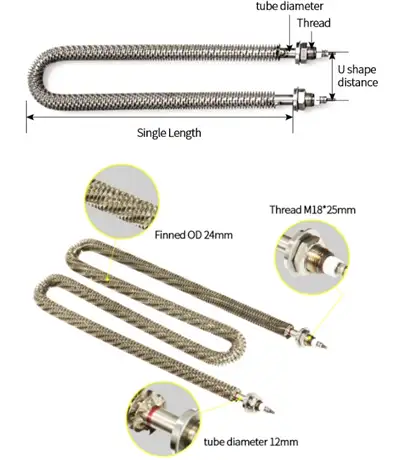

| product | shape | voltage power | tube diameter | thread size | total size |
| finned heater | U | 220V 500W | 12MM | M18 | 300MM |
| U | 220V 1KW | 12MM | M18 | 350MM | |
| U | 220V 1.2KW | 12MM | M18 | 400MM | |
| U | 220V 1.5KW | 12MM | M18 | 450MM | |
| U | 220V 2KW | 12MM | M18 | 500MM | |
| U | 380v 2KW | 12MM | M18 | 500MM | |

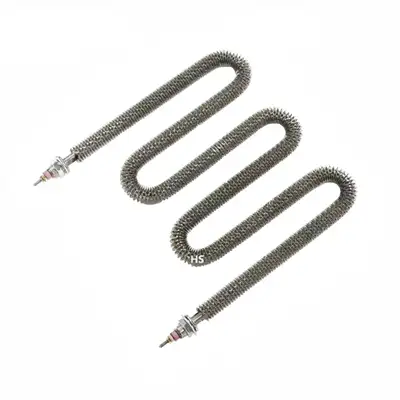

| W | 220V 1.5KW | 12MM | M18 | 400MM | |
| W | 220V 2.5KW | 12MM | M18 | 450MM | |
| W | 220V 3.5KW | 12MM | M18 | 600MM | |
| W | 380v 2.5KW | 12MM | M18 | 450MM | |
| W | 380v 3.5KW | 12MM | M18 | 600MM |
Key Features of Finned Heaters:
Heating Element: Typically made of materials like stainless steel, Incoloy, or other alloys, depending on the application and temperature requirements.
Fins: The fins are attached to the heating element and are often made of aluminum or steel. They help distribute heat more evenly and efficiently.
Applications: Finned heaters are commonly used in HVAC systems, industrial processes, air handling units, and space heating.
Efficiency: The increased surface area provided by the fins allows for faster and more uniform heat transfer, reducing energy consumption.
Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating
3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
Advantages:
Improved heat transfer and efficiency.
Compact design for easy installation.
Durable and long-lasting, especially when made with corrosion-resistant materials.
Can be customized for specific applications (e.g., wattage, voltage, fin spacing).
