Flange Tubular Heater
Flange Tubular Heater by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.

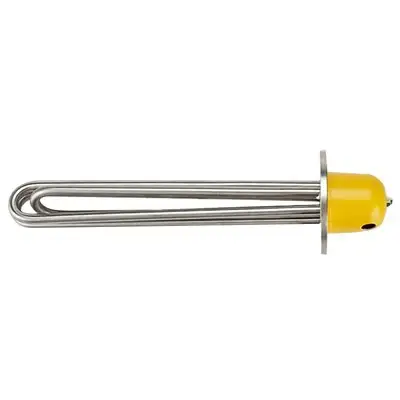

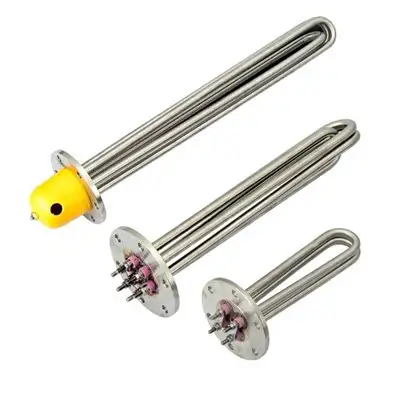

Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Flange Tubular Heater: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Flange Tubular Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Flange Tubular Heater lists Power: Depends on the dimension; Power tolerance: 5%-10%. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Flange Tubular Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Flange Tubular Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Heat intensity | Not exceeding 30w/cm² |
|---|---|
| Power | Depends on the dimension |
| Insulation | 5 Min ohmios 500w min |
| Power tolerance | 5%-10% |
| Working temperature | 800 ℃ max |
| Warranty | 1 year |
ARCHIVED PRODUCT INFORMATION
Description
flange immersion heater is a type of immersion heater that is designed with a flanged connection for easy installation and removal in various industrial and commercial applications. It consists of a heating element housed within a metal sheath, and the flanged connection allows it to be mounted onto the walls of tanks, vessels, or pipes, with the heating element immersed directly in the liquid to be heated.
|
Heat intensity |
Not exceeding 30w/cm² |
|
Power |
Depends on the dimension |
|
Insulation |
5 Min ohmios 500w min |
|
Power tolerance |
5%-10% |
|
Working temperature |
800 ℃ max |
|
Warranty |
1 year |
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe, corrosion and rust resistance.
Features:
Flanged Connection: The flange is a flat, circular disk with holes for bolts, making it easy to attach and secure the immersion heater to a container or vessel.
Heating Element: The heating element is usually made of a resistant material such as stainless steel, Incoloy, or other alloys, depending on the intended use and compatibility with the liquid being heated.
Terminal Enclosure: Flange immersion heaters often come with a terminal enclosure that houses the electrical connections and provides protection from moisture and environmental factors.
Thermostat or Temperature Sensor: Many flange immersion heaters are equipped with built-in thermostats or temperature sensors to regulate the liquid temperature and prevent overheating
Applications:
Industrial Processes: Flange immersion heaters are commonly used in various industrial processes, including heating oils, chemicals, solvents, and other liquids for manufacturing, processing, and material handling.
Water Heating: They are used for heating large quantities of water in industrial boilers, water storage tanks, and heating systems.
Food and Beverage Industry: Flange immersion heaters can be employed to heat liquids in food and beverage production, such as cooking oil, chocolate, syrup, and industrial cooking vats.
Chemical Reactions: These heaters are utilized in chemical reactions and laboratory settings where precise and controlled heating is required.
Oil Industry: Flange immersion heaters are often used for heating oil in storage tanks and equipment in the oil and gas industry.
Plating and Galvanizing: They are used in metal plating and galvanizing processes, where precise temperature control is crucial for achieving desired results.
Pharmaceuticals: Flange immersion heaters are utilized for heating liquids in pharmaceutical manufacturing processes.
Water Treatment: In water treatment facilities, these heaters can be used for heating chemicals or water in various treatment processes.
Flange immersion heaters offer versatility and flexibility due to their easy installation and compatibility with a wide range of liquids and environments. Proper sizing, material selection, and control mechanisms are important considerations to ensure safe and efficient operation in specific applications.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: flange tubular heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Tubular Air Finned Heater Element, U Type Electric Air Fins Heater, Water Immersion Heater Element, Stainless Steel Electric Coil Tubular Heater, Water Immersion Copper Tubular Heater, Stainless Steel Water Immersion Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
