Heater Finned Tube
Heater Finned Tube by LICHENGDA. Airflow and fin clearance, configuration details and made-to-drawing quotation for air ducts, dryers and equipment enclosures.
Product image gallery (7)
PRODUCT ENGINEERING
Airflow and fin clearance
Heater Finned Tube: Fins transfer heat to passing air. State the air speed, inlet temperature and duct dimensions before selecting surface loading; a wattage alone does not establish the allowable air temperature rise.
Keep fins clear of cables and combustible material. Review fan-failure interlocking and place the temperature limit where reduced airflow will be detected.
For Heater Finned Tube, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Heater Finned Tube, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Air ducts, dryers and equipment enclosures. The final suitability of Heater Finned Tube depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

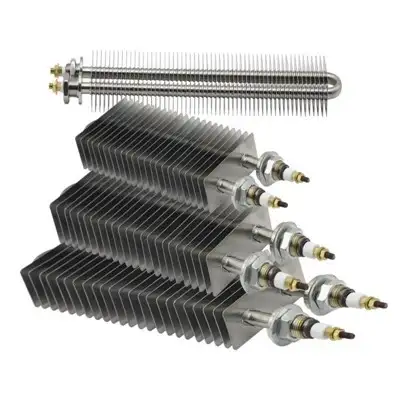

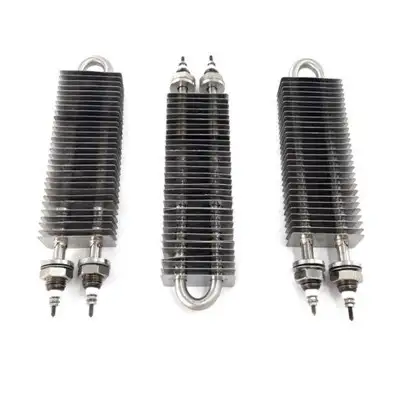

A square finned heater is a type of electric heating element designed to efficiently transfer heat to air or gas. It consists of a tubular heating element with square-shaped fins attached to its surface. These fins increase the surface area of the heater, enhancing heat dissipation and improving thermal efficiency. Square finned heaters are commonly used in industrial and commercial applications where consistent and efficient heating is required.
Key Features:
Fins: The square fins are typically made of materials like aluminum or stainless steel, which have high thermal conductivity. The fins are evenly spaced to maximize heat transfer.
Tubular Heating Element: The core of the heater is a metal tube (often made of stainless steel, Incoloy, or other alloys) that houses a resistive heating wire embedded in magnesium oxide (MgO) for electrical insulation and thermal conductivity.
Customizable: Square finned heaters can be customized in terms of size, watt density, voltage, and fin spacing to suit specific applications.
Durability: They are designed to withstand high temperatures and harsh environments, making them suitable for industrial use.

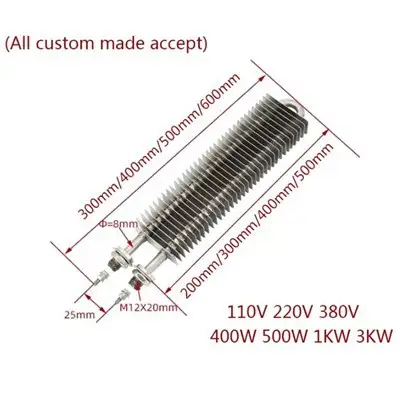

Stock size
| product | shape | voltage power | tube diameter | thread size | total size |
| finned heater | U | 220V 500W | 12MM | M18 | 300MM |
| U | 220V 1KW | 12MM | M18 | 350MM | |
| U | 220V 1.2KW | 12MM | M18 | 400MM | |
| U | 220V 1.5KW | 12MM | M18 | 450MM | |
| U | 220V 2KW | 12MM | M18 | 500MM | |
| U | 380v 2KW | 12MM | M18 | 500MM | |
| W | 220V 1.5KW | 12MM | M18 | 400MM | |
| W | 220V 2.5KW | 12MM | M18 | 450MM | |
| W | 220V 3.5KW | 12MM | M18 | 600MM | |
| W | 380v 2.5KW | 12MM | M18 | 450MM | |
| W | 380v 3.5KW | 12MM | M18 | 600MM |

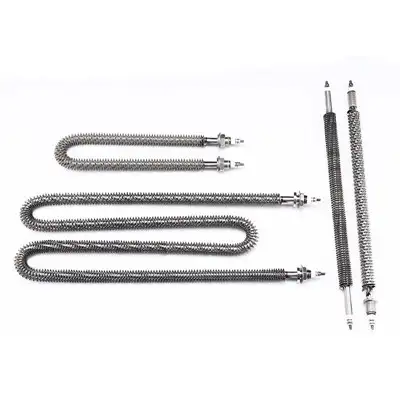

Key Features of Finned Heaters:
Fins: The fins are typically made of aluminum or steel and are attached to the heating element. They help distribute heat more evenly and increase the rate of heat transfer.
Heating Element: The core of the heater, which generates heat when electricity passes through it.
Durability: Finned heaters are often designed to withstand harsh environments, including exposure to moisture, chemicals, or high temperatures.
Versatility: They can be used in various configurations, such as tubular, strip, or custom shapes, to fit specific applications.
Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating
3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
Applications of Finned Heaters:
Air Heating: Used in duct heaters, space heaters, and HVAC systems.
Process Heating: Common in industrial processes, such as drying, curing, or preheating.
Ovens and Furnaces: Provide uniform heating in industrial ovens or furnaces.
Tank and Drum Heating: Used to heat liquids or gases in tanks or drums.
Food Industry: For heating or drying food products.
