VERSATILE FORMED ELEMENTS
Heater Titanium
Heater Titanium by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (8)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Heater Titanium: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Heater Titanium, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Heater Titanium, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Heater Titanium depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Titanium heating elements are specialized components used in various industrial and laboratory applications where corrosion resistance, high-temperature stability, and durability are critical.

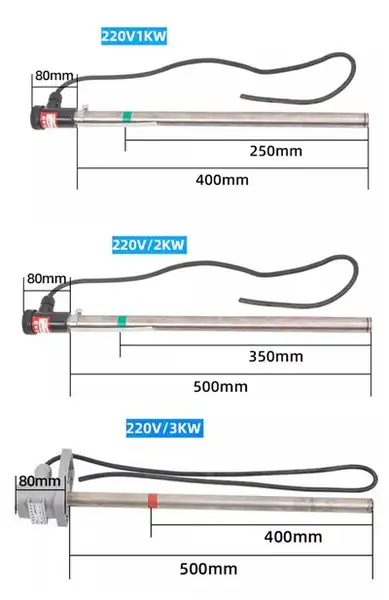

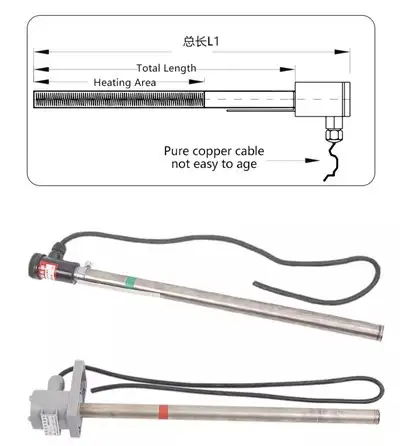

| Tube Diameter/ Total Length / Heating Length | voltage | power |
| 25mm*500mm/250mm | 220v/380v | 1kw |
| 25mm*600mm/350mm | 220v/380v | 2kw |
| 25mm*800mm/500mm | 220v/380v | 3kw |
Properties of Titanium Heating Elements
Corrosion Resistance – Titanium excels in aggressive environments (e.g., acidic, alkaline, or saltwater conditions) due to its passive oxide layer.
High-Temperature Performance – Can operate at elevated temperatures (typically up to 450–500°C), though not as high as some ceramics or refractory metals.
Lightweight & Strong – Titanium has a high strength-to-weight ratio, making it suitable for compact or portable heating systems.
Biocompatibility – Often used in medical or food-processing applications where material purity is essential.
Applications
Chemical Processing: Heating corrosive liquids (e.g., acids, plating baths).
Medical/Sterilization: Autoclaves, surgical tools.
Marine/Offshore: De-icing or fluid heating in saltwater environments.
Semiconductor Industry: High-purity processes.
Aerospace: De-icing systems or component testing.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: heater titanium, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Electric Water Boiler Heating Element, Stainless Steel Industrial Sauna Heat Tube, Air Tubular U Shape Heating Element, Water Tubular Brass Copper Heating Element, Mosquito Coil Heating Tube Element, U Type Electric Air Fins Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
