Heating Pipe Copper Spiral

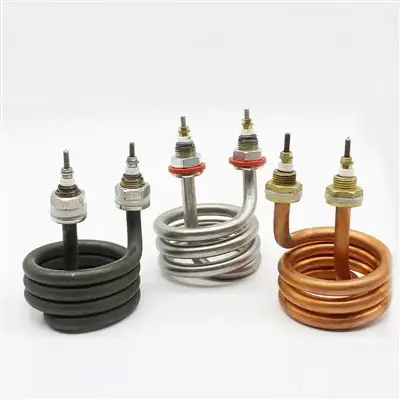

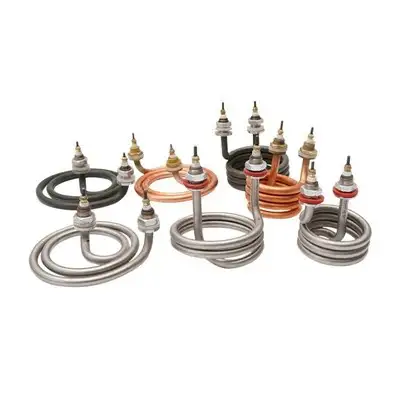

Heating Pipe Copper Spiral by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Heating Pipe Copper Spiral: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Heating Pipe Copper Spiral, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Heating Pipe Copper Spiral, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Heating Pipe Copper Spiral depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
A spiral heating element is a type of electric heating component designed in a coiled or helical shape to maximize surface area and heat distribution. It is commonly used in applications where compact, efficient, and uniform heating is required. The spiral shape allows the element to fit into tight spaces while providing consistent heat output.

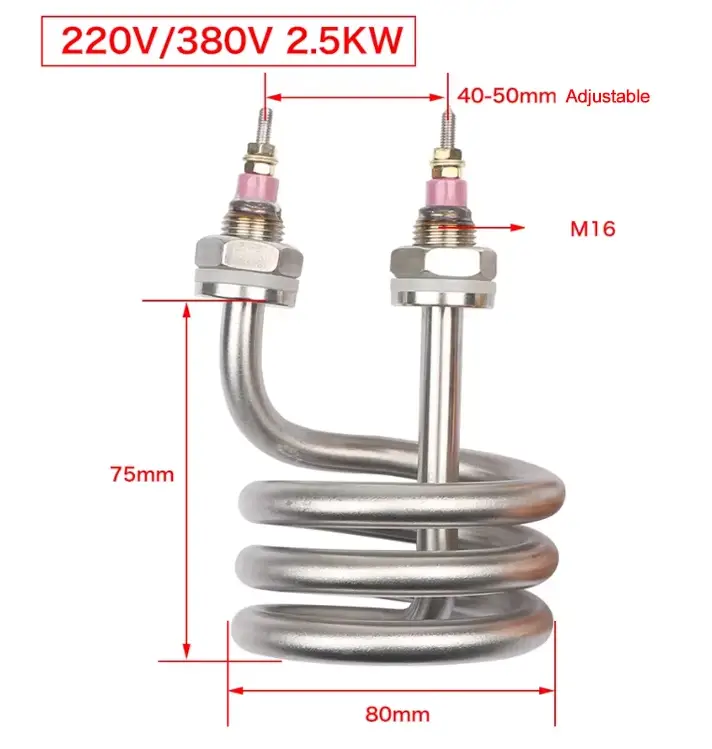

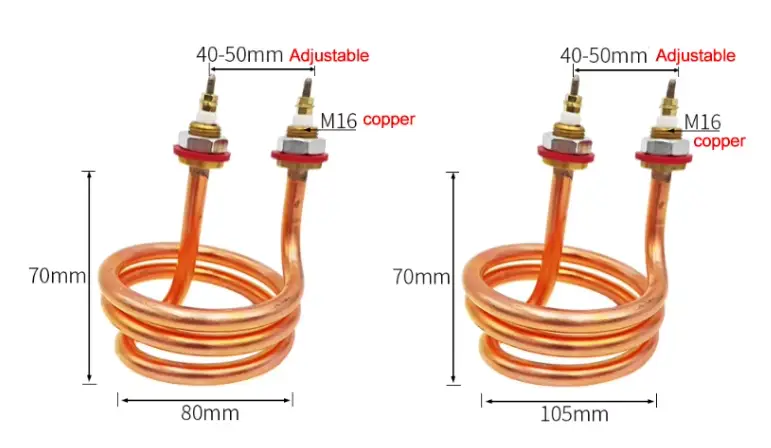

| Voltage/Power | Material | Tube Diameter | Size | Center Distance |

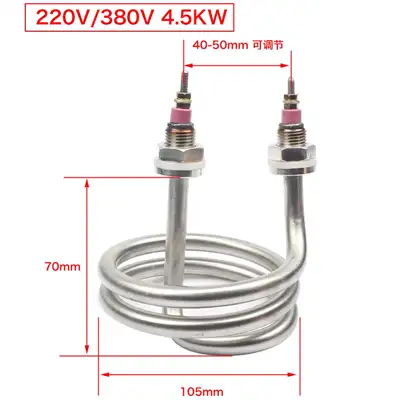

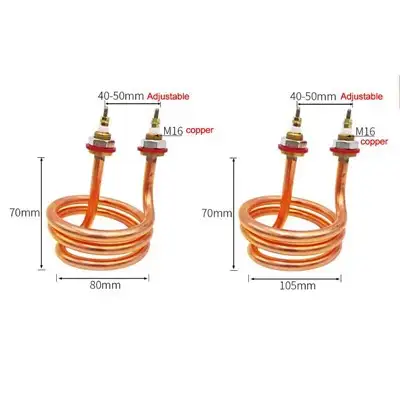

| 220v 2.5kw | copper | 10mm | D:80mm H:75mm |
40-50mm adjustable |
| 380v 2.5kw | ||||

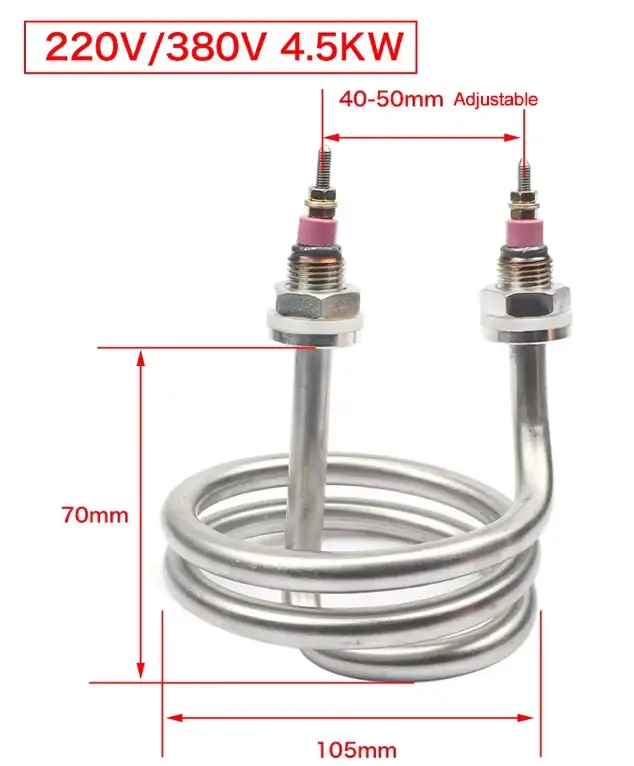

| 220v 4.5kw | D:105mm H:70mm |
40-60mm adjustable | ||
| 380v 4.5kw | ||||
| 220v 2.5kw | stainless steel |
D:80mm H:75mm |
40-50mm adjustable | |
| 380v 2.5kw | ||||
| 220v 4.5kw | D:105mm H:70mm |
40-60mm adjustable |
Advantages:
Efficient Heat Transfer: The spiral design maximizes heat exchange with the surrounding medium.
Flexibility: Can be bent or shaped to fit specific requirements.
Long Lifespan: Durable materials and design ensure a long operational life.
Quick Heating: Rapid response time due to the compact design.
Key Features of Spiral Heating Elements:
Compact Design: The spiral shape allows for a longer heating wire to be packed into a smaller space, making it ideal for confined areas.
High Surface Area: The coiled design increases the surface area exposed to the surrounding medium, improving heat transfer efficiency.
Uniform Heating: The spiral configuration ensures even heat distribution, reducing hot spots.
Durability: Made from high-resistance materials, spiral heating elements are robust and can withstand high temperatures and mechanical stress.
Versatility: Can be customized in terms of size, shape, and material to suit specific applications.
Materials Used:
Spiral heating elements are typically made from materials with high electrical resistance and good thermal properties, such as:
Nichrome (Nickel-Chromium Alloy): Most common, suitable for temperatures up to 1200°C.
Kanthal (Iron-Chromium-Aluminum Alloy): Used for higher temperatures (up to 1400°C) and oxidizing environments.
Tungsten: For extremely high-temperature applications (up to 2000°C), often used in vacuum or inert atmospheres.
Stainless Steel: For corrosive environments or lower-temperature applications.
Applications:
Spiral heating elements are used in a wide range of industries and devices, including:
Industrial Heating:
Furnaces /Ovens//Heat treatment processes
Appliances:
Electric stoves/Toasters/Hairdryers/Coffee makers
Laboratory Equipment:
Hot plates/Incubators/Sterilizers
Aerospace and Automotive:
De-icing systems/Engine pre-heaters
Medical Devices:
Sterilization equipment/Heating pads
