VERSATILE FORMED ELEMENTS
Sic Heater Element
Sic Heater Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Sic Heater Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Sic Heater Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Sic Heater Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Sic Heater Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Name | MoSi2 Heating Element |
|---|---|
| Shape | Dumbbell, U, W and other special shape |
| Used temperature | Up to 1800C |
| Production process | Made into blank, silicided under high temperature and re-crystallized. |
ARCHIVED PRODUCT INFORMATION
Description
Molybdenum disilicide(MoSi2) heating element:
Mosi heating element is a kind of resistance heating element basically made of pure molybdenum Disilicide. In oxidizing
atmosphere, a layer of compact quartz protective film is formed on the surface of Mosi 2 element owing to the high temperature combustion, which prevents Mosi 2 from continuously oxidizing.
mosi2 heating element 1. According to temperature: 1700C and 1800C

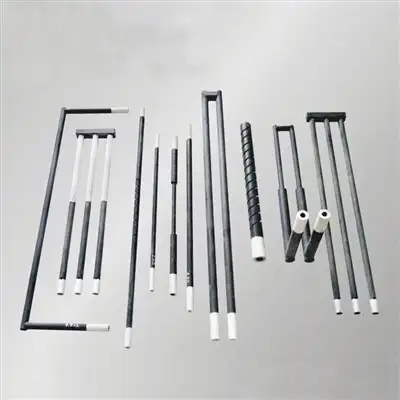

2. According to Shape: U, W, I, U type L shape, W type L shape, Spiral types. mosi2 heating element standard size
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
Product Description
|
Name |
MoSi2 Heating Element |
|
Shape |
Dumbbell, U, W and other special shape |
|
Used temperature |
Up to 1800C |
|
Production process |
Made into blank, silicided under high temperature and re-crystallized. |
|
specific gravity |
2.6~2.8g/cm³ |
bend strength |
>300kg |
|
hardness |
>9 MOH′S |
Tensile strength |
>150kg/cm³ |
|
porosity rate |
<30% |
Radiancy |
0.85 |
Features of silicon carbide rod
1. High strength and excellent shock resistance;
2. Heat source is free of noise and air pollution;
3. Anti-oxidization;
4. Anti-corrosion,
5. Long service life,
6. Little deformation,
7. Easy installation and maintenance.
8. Excellent specific rate of heat zone resistance and cold end resistance,
9. Avoiding over-temperature of cold ends to damage the furnace body.
10. Saving energy

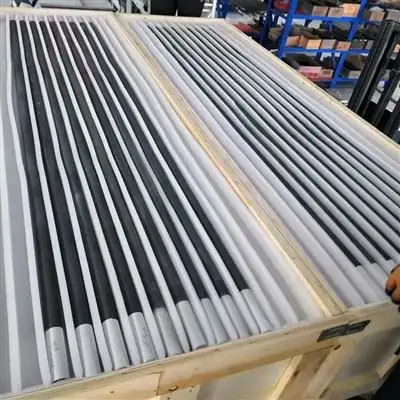

Package
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: sic heater element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Water Immersion Copper Tubular Heater, Stainless Steel Industrial Sauna Heat Tube, Straight Stainless Steel Finned Heater, Tubular Air Finned Heater Element, Stainless Steel Electric Coil Tubular Heater, Electric Industrial Toaster Oven Heating Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
