Submersible Heating Tube
Submersible Heating Tube by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Submersible Heating Tube: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Submersible Heating Tube, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Submersible Heating Tube lists Material: 201SUS tube + waterproof silicone wire; Voltage: 220V/380V; Power: 3KW/4KW/5KW; Tube Length Range: 340mm/390mm/410mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Submersible Heating Tube, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Submersible Heating Tube depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product Name | Submersible heating tube |
|---|---|
| Material | 201SUS tube + waterproof silicone wire |
| Voltage | 220V/380V |
| Power | 3KW/4KW/5KW |
| Tube Length Range | 340mm/390mm/410mm |
| Tube Diameter | 12mm |
| Wire length | 1.4M/3M |
ARCHIVED PRODUCT INFORMATION
Description
|
Product Name |
Submersible heating tube |
|
Material |
201SUS tube + waterproof silicone wire |
|
Voltage |
220V/380V |
|
Power |
3KW/4KW/5KW |
|
Tube Length Range |
340mm/390mm/410mm |
|
Tube Diameter |
12mm |
|
Wire length |
1.4M/3M |

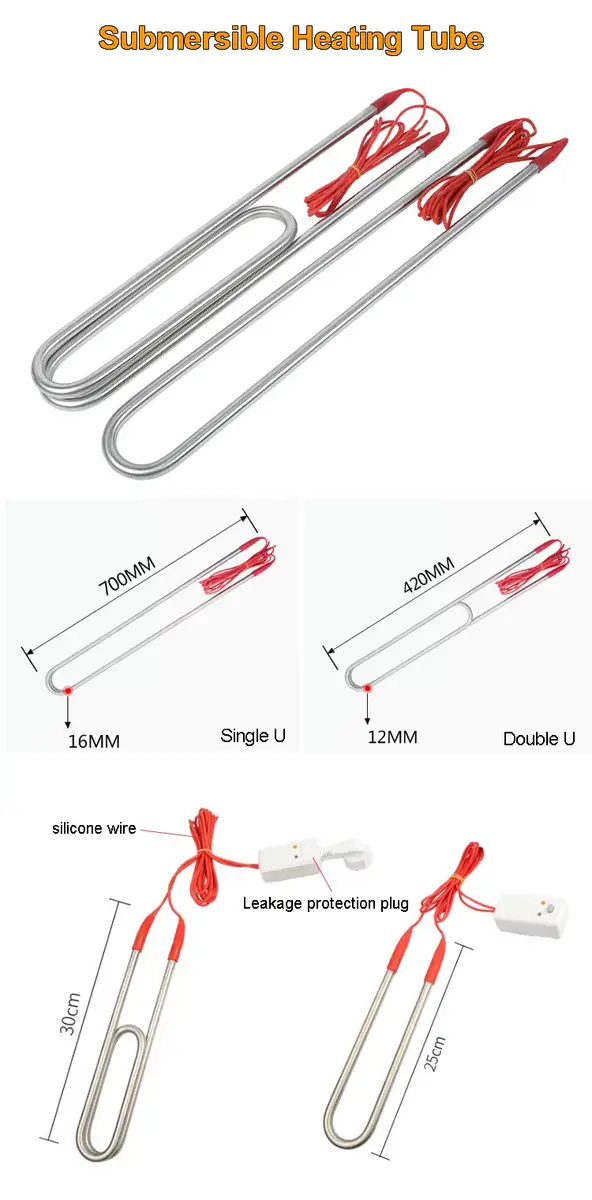

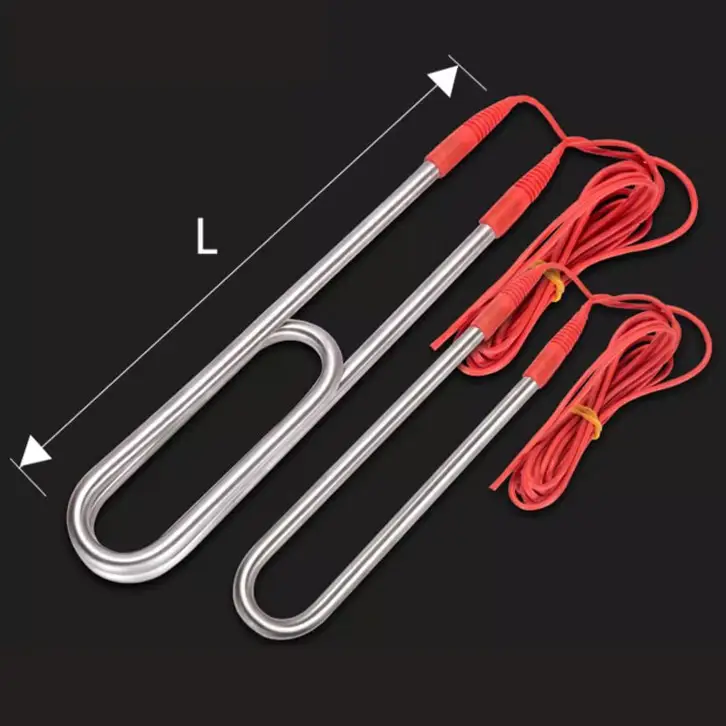

| Type | Voltage/ Power | Wire Diameter | Tube Diameter | Length | Wire Length | Wire Diameter |
| Single U | 220v 1kw | Stainless steel 201 | 12mm | 250mm | 1.2m | 1.5mm² |
| 220v 1.5kw | 250mm | 1.4m | 1.5mm² | |||
| 220v 2kw | 300mm | 1.4m | 1.5mm² | |||
| 220v 3kw | 350mm | 1.4m | 2mm² | |||
| Double U | 220v 3kw | 350mm | 1.4m | 2mm² | ||
| 220v 4kw | 390mm | 1.4m | 2mm² | |||
| 220v 3kw | 350mm | 1.4m | 1.5mm² | |||
| 380v 4kw | 390mm | 1.4m | 1.5mm² | |||
| 380v 5kw | 420mm | 1.4m | 2mm² |
| Type | Voltage/ Power | Wire Diameter | Tube Diameter | Length | Wire Length | Wire Diameter |
| Single U | 380v 6kw | Stainless steel 201 | 16mm | 700mm | 1.4m | 4mm² |
| 380v 8kw | 800mm | 1.4m | 4mm² | |||
| Double U | 380v 10kw | 800mm | 2m | 6mm² | ||
| 380v 12kw | 1000mm | 2m | 6mm² |
Notice:

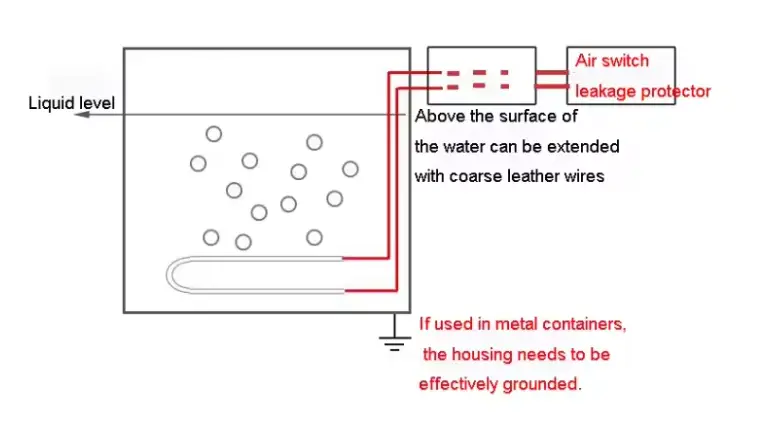

1. The heating area must be fully immersed in the liquid, and the dry burning phenomenon will burn out the electric heating pipe;
2. The grease on the surface of the electric heating pipe should be cleaned regularly to ensure that it has a good service life;
3. The terminal is effectively waterproof to avoid leakage;
4. Do not use unstable containers, and make sure whether the container is stable before installing the electric heating pipe, and then install and fix it. Because the unstable container is easy to overturn, dumping liquid, resulting in dry burning of electric heating pipes, because of fire, electric shock and other dangers.
Instructions for use
1.Before installation please use multimeter to measure the power. If there is no problem after measured,then can be installed. lf there is no power, please contact with us.
2.How to measure the power: Pleasenote: Under the condition of insulation,the International standard for the heater power accept.
allowance -10%~+5%.lf you care about it, please do not make order.Thanks. )
3.Before power up, heat pipe heating zone must be put in the water, strictly prohibit dry burning.
